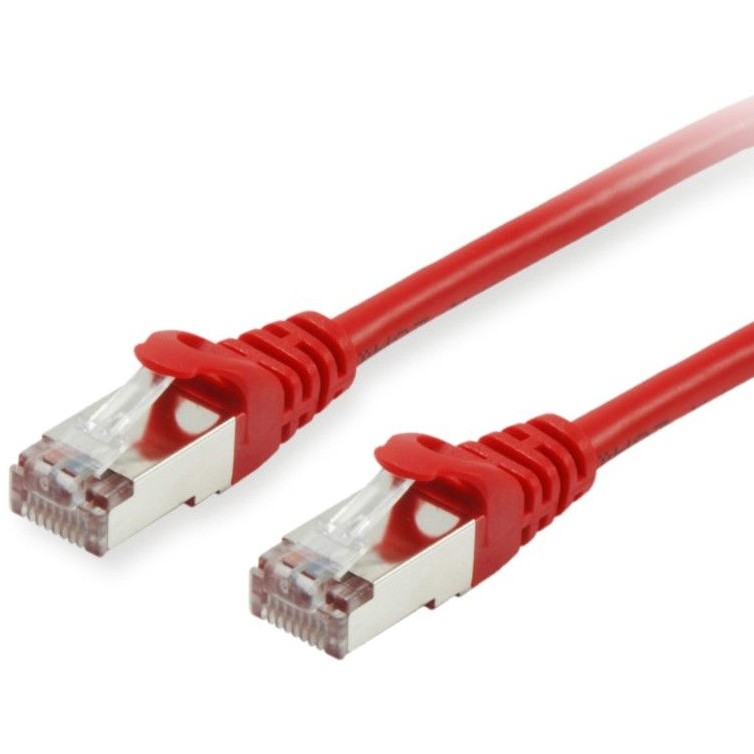

The equip® Cat.6A S/FTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin. the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments. specially for 10G application

Features
Product colour: Red
Cable length: 10 m
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor type: Stranded
Conductor material: Copper
Cabling technology: 10GBase-T
Ethernet interface type: 10 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet
Networking standards: IEEE 802.3. IEEE 802.5
AWG wire size: 26/7
Data transfer rate: 10000 Mbit/s
Frequency: 500 MHz
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Feature: Molded cable boot
Feature: Plug and Play
Country of origin: China
Sustainability
Doesn't contain: Halogen
Certificates
Compliance certificates: CE. REACH. RoHS
Weight & dimensions
Width: 8.34 mm
Depth: 11.7 mm
Height: 10000 mm
Outer diameter: 6.1 mm
Weight: 317 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 220 mm
Package depth: 40 mm
Package height: 260 mm
Package weight: 180 g
Package type: Polybag
Other features
Insulation outer diameter: 1.05 mm
Logistics data
Harmonized System (HS) code: 84733080
Master (outer) case width: 290 mm
Master (outer) case length: 350 mm
Master (outer) case gross weight: 10.5 kg
Master (outer) case height: 380 mm
Products per master (outer) case: 30 pc(s)
Technical details
Feature: Sustainability compliance
