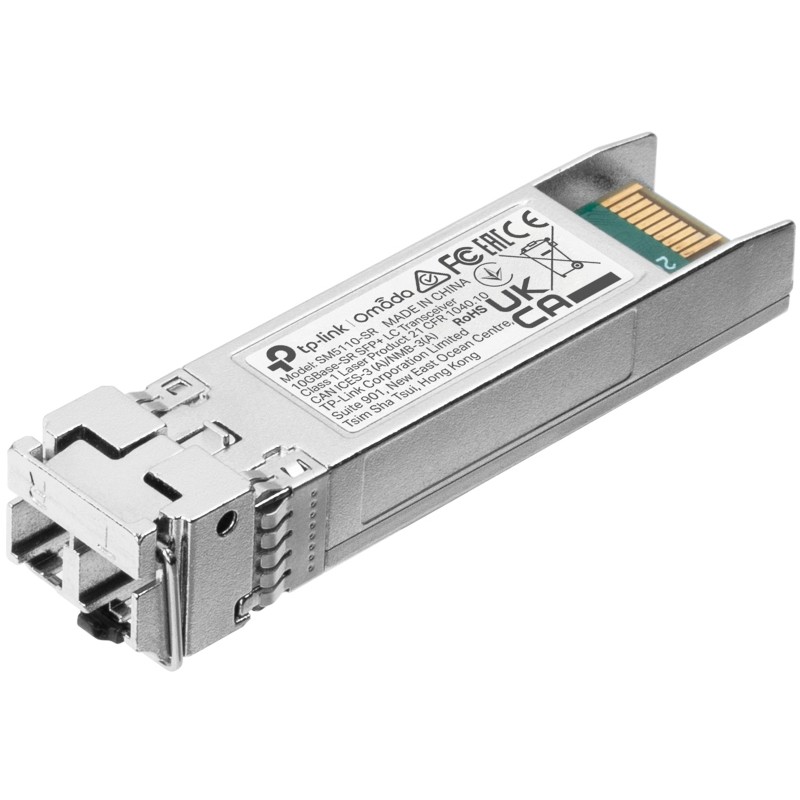

The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex. 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Performance
SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC (UPC)
Fiber cable diameters supported (core/cladding): 50/125.62.5/125 µm
Maximum transfer distance: 300 m
Wavelength: 850 nm
Feature: Digital Diagnostics Monitoring (DDM)
Features
Product colour: Silver
Feature: Hot-swap
Power
Input voltage: 3.3 V
Certificates
Certification: FCC. CE
Operational conditions
Minimum operating temperature: 0 °C
Maximum operating temperature: 70 °C
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
Width: 61.3 mm
Depth: 14.5 mm
Height: 12.2 mm
Packaging content
Quantity per pack: 1 pc(s)
