NETWORK ACCESORIES

D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

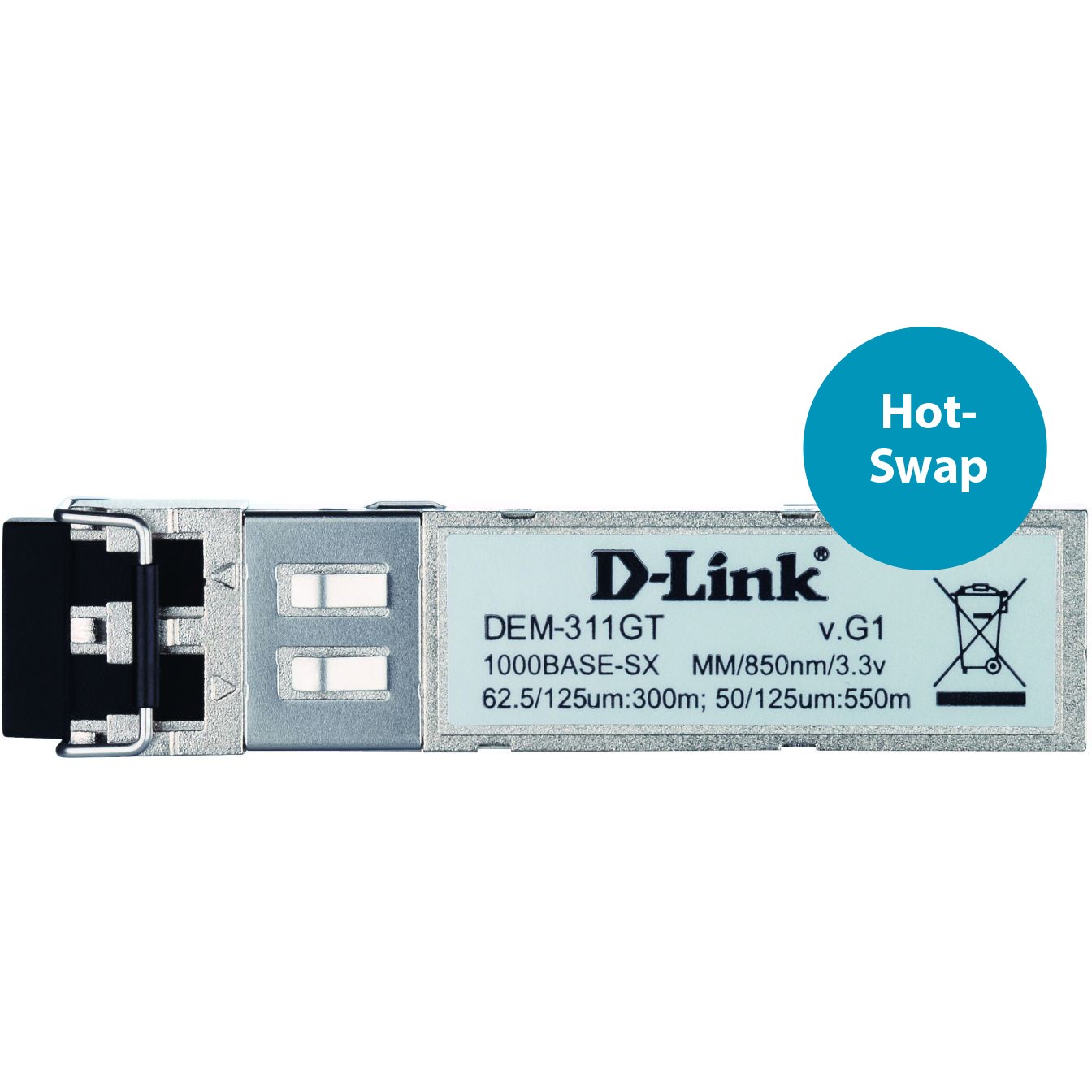

The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex. Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.

Performance
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1000 Mbit/s
Interface type: SFP
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
SFP transceiver standard: SX
Maximum transfer distance: 550 m
Wavelength: 850 nm
Networking standards: IEEE 802.3x
Duplex system: Full
Features
Product colour: Metallic
Housing material: Metal
Feature: Hot-Plug support
Power
Maximum voltage: 6 V
Certificates
Certification: MSA. RoHS
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 85 °C
Weight & dimensions
Width: 13.8 mm
Depth: 57.2 mm
Height: 8.5 mm
Packaging data
Package width: 74 mm
Package depth: 131 mm
Package height: 49 mm
Package weight: 64 g
Logistics data
Shipping (inner) case length: 36 cm
Shipping (inner) case width: 26 cm
Shipping (inner) case height: 31 cm
Shipping (inner) case net weight: 3.2 kg
Products per shipping (inner) case: 50 pc(s)
Pallet gross weight (air): 246.8 kg
Master (outer) cases per pallet (air): 54 pc(s)
Products per pallet (air): 2700 pc(s)
Pallet gross length: 102 cm
Pallet gross width: 122 cm
Pallet height (air): 199 cm
Pallet gross weight (sea): 246.8 kg
Master (outer) cases per pallet (sea): 54 pc(s)
Products per pallet (sea): 2700 pc(s)
Pallet height (sea): 199 cm
Shipping (inner) case gross weight: 4.2 kg
Harmonized System (HS) code: 85369010
