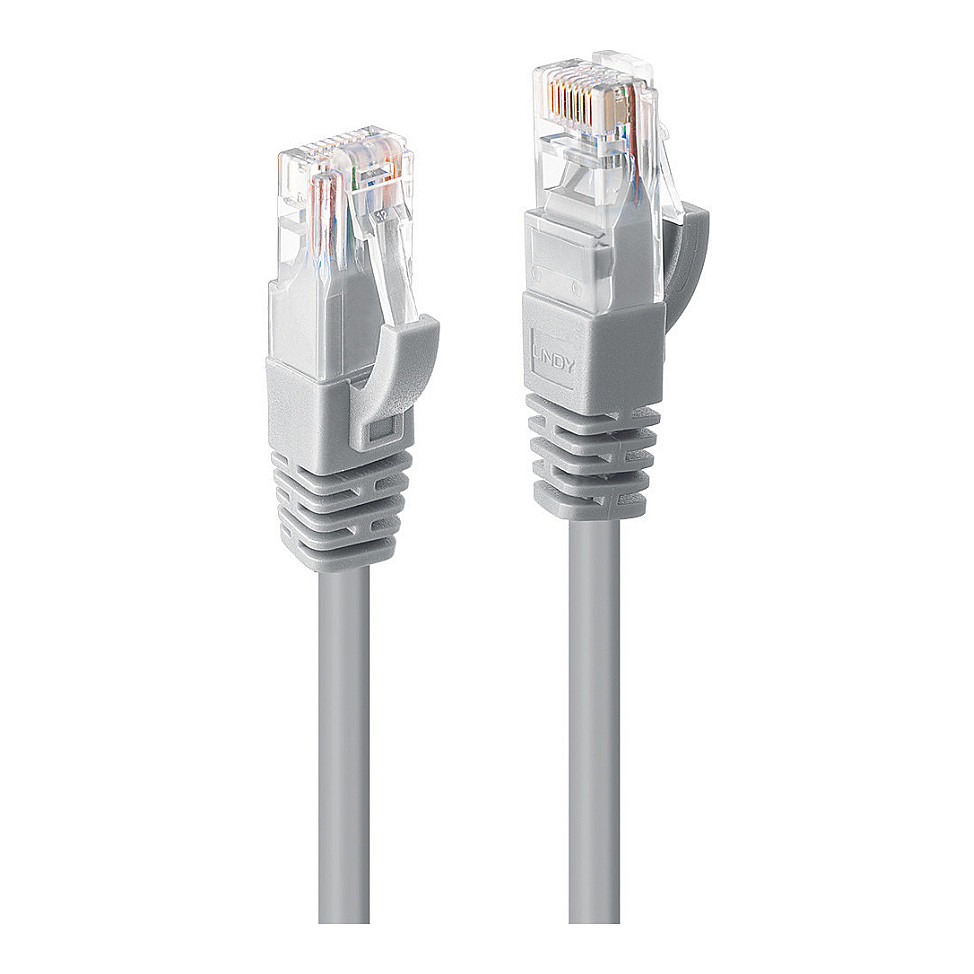

LINDY Patchkabel Cat6 U/UTP grau 0.30m
Product code: 24882122 // MPN: 48000 // EAN: 4002888480000
New entry
€5,80 (inc. VAT)
Available from 4 to 10 days (100 pcs available)
Similar products
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
Features
Product colour: Grey
Cable length: 0.3 m
Cable standard: Cat6
Cable shielding: U/UTP (UTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Conductor material: Copper
Cabling technology: 10/100/1000Base-T(X)
AWG wire size: 24
Frequency: 250 MHz
Bend radius (min): 6.9 cm
Operational conditions
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 75 °C
Certificates
Certification: RoHS, REACH, UL, California Proposition 65
Weight & dimensions
Outer diameter: 5.8 mm
Connector 1 dimensions (WxDxH): 11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH): 11.6 x 22.8 x 8.3 mm
Packaging data
Package type: Polybag
Other features
Category: 6
Logistics data
Harmonized System (HS) code: 84733080
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
Features
Product colour: Grey
Cable length: 0.3 m
Cable standard: Cat6
Cable shielding: U/UTP (UTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Conductor material: Copper
Cabling technology: 10/100/1000Base-T(X)
AWG wire size: 24
Frequency: 250 MHz
Bend radius (min): 6.9 cm
Operational conditions
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 75 °C
Certificates
Certification: RoHS, REACH, UL, California Proposition 65
Weight & dimensions
Outer diameter: 5.8 mm
Connector 1 dimensions (WxDxH): 11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH): 11.6 x 22.8 x 8.3 mm
Packaging data
Package type: Polybag
Other features
Category: 6
Logistics data
Harmonized System (HS) code: 84733080
