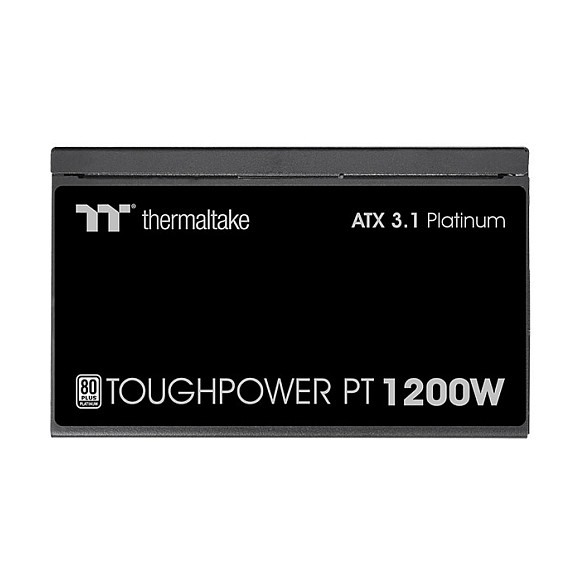

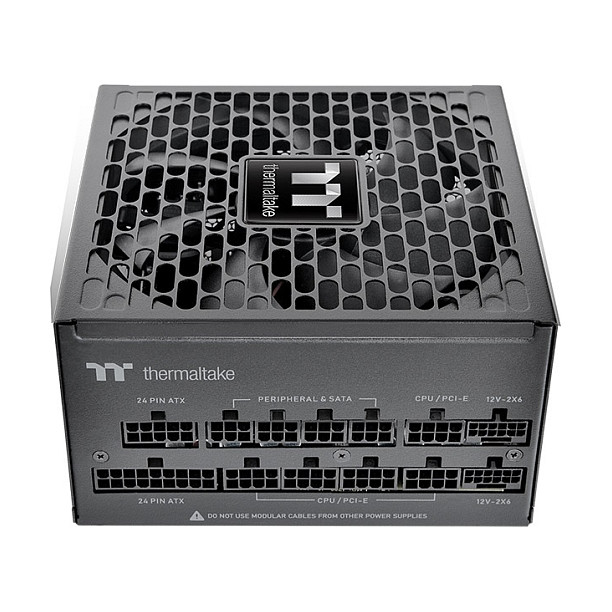

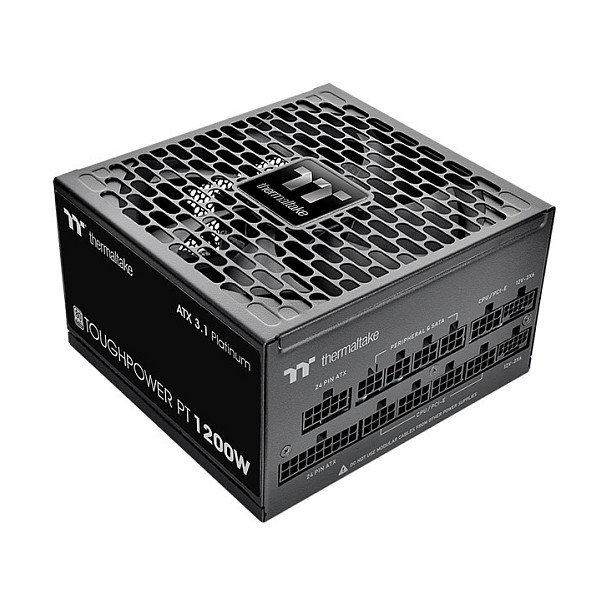

1200W Toughpower PT
Product code: 18885122 // MPN: PS-TPP-1200FNFAPE-1 // EAN: 4711658545305
New entry
€290,10 (inc. VAT)
Available from 4 to 10 days (4 pcs available)
Similar products
1200W Sharkoon Rebel P20 1200 White (wei. 1x 12 Pin High Power Anschluss. 4x PCIe. Kabelmanagement. 1200 Watt)
Code: 12044422
€278,47
Available from 4 to 10 daysThe Toughpower PT 1200W Platinum is ATX 3.1 compatible. 80 PLUS Platinum certified. and supports native PCIe Gen 5.1 (12+4pin) for next-gen GPU power. Delivers 1200W continuous output at 40°C.
It features 100% Japanese capacitors. a strong single +12V rail. an ultra-quiet 135mm hydraulic bearing fan. and a Zero Cable Platform with low-profile modular cables.
Power
Total power: 1200 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 - 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 1200 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 100 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 17 ms
Efficiency: 92%
Power Good signal delay range: 100 - 150 ms
Power protection features: Over current. Over power. Over voltage. Short circuit. Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 450.600.750 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 750.600.450.300 mm
PCI Express power connectors (6+2 pin): 5
PCI Express power connectors (12+4 pin): 2
PCI Express power connectors (12+4 pin) cable length: 600 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 5 - 95%
Safety regulation & standards
Safety: CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
It features 100% Japanese capacitors. a strong single +12V rail. an ultra-quiet 135mm hydraulic bearing fan. and a Zero Cable Platform with low-profile modular cables.
Power
Total power: 1200 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 - 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 1200 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 100 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 17 ms
Efficiency: 92%
Power Good signal delay range: 100 - 150 ms
Power protection features: Over current. Over power. Over voltage. Short circuit. Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 450.600.750 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 750.600.450.300 mm
PCI Express power connectors (6+2 pin): 5
PCI Express power connectors (12+4 pin): 2
PCI Express power connectors (12+4 pin) cable length: 600 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 5 - 95%
Safety regulation & standards
Safety: CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
