POWER SUPPLY (PSU)

Power
Total power: 1200 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15.0-7.5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 1200 W
Combined power (+5V): 100 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 100 A
Max output current (+5V): 20 A
Max output current (+5Vsb): 3 A
Power protection features: Over voltage. Overload. Short circuit. Surge and inrush. Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 150.500 mm
Number of SATA power cables: 10
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 150.500 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 3
PCI Express power cable length: 65 cm
Feature: ATX Power connector (24-pin)
Feature: PCI Express connector
Number of EPS connectors: 1

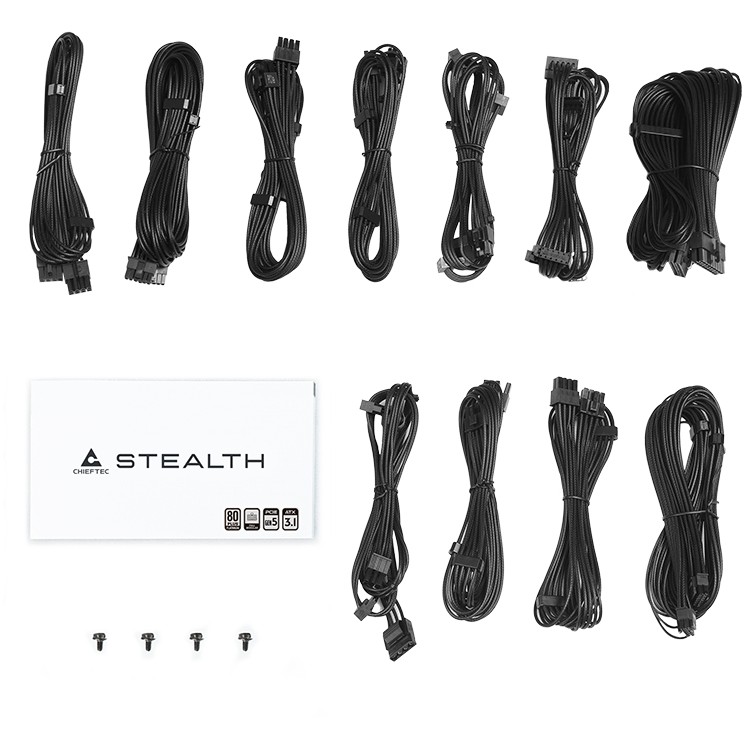

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Design
Product colour: Black
Cooling type: Active

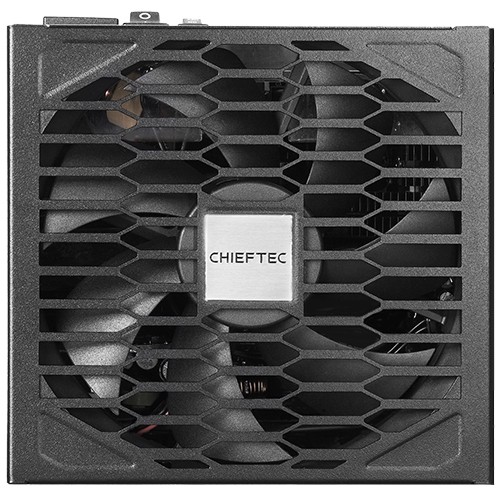

Fan diameter: 13.5 cm
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data

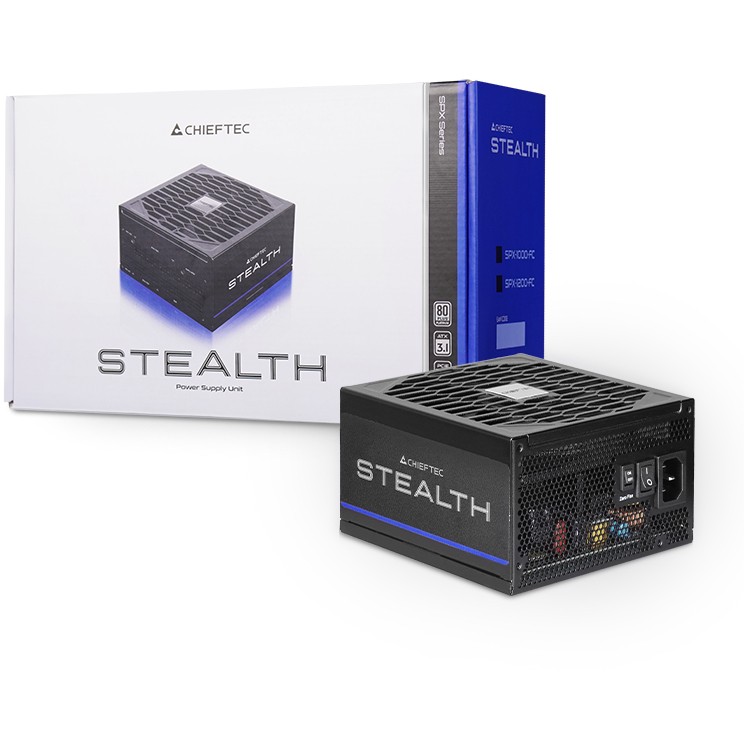

Package type: Box
