AJAX TCP-IP/GSM Alarm Hub White

New entry

Add to wishlist

Code: 17716920

Available from 1 to 3 days

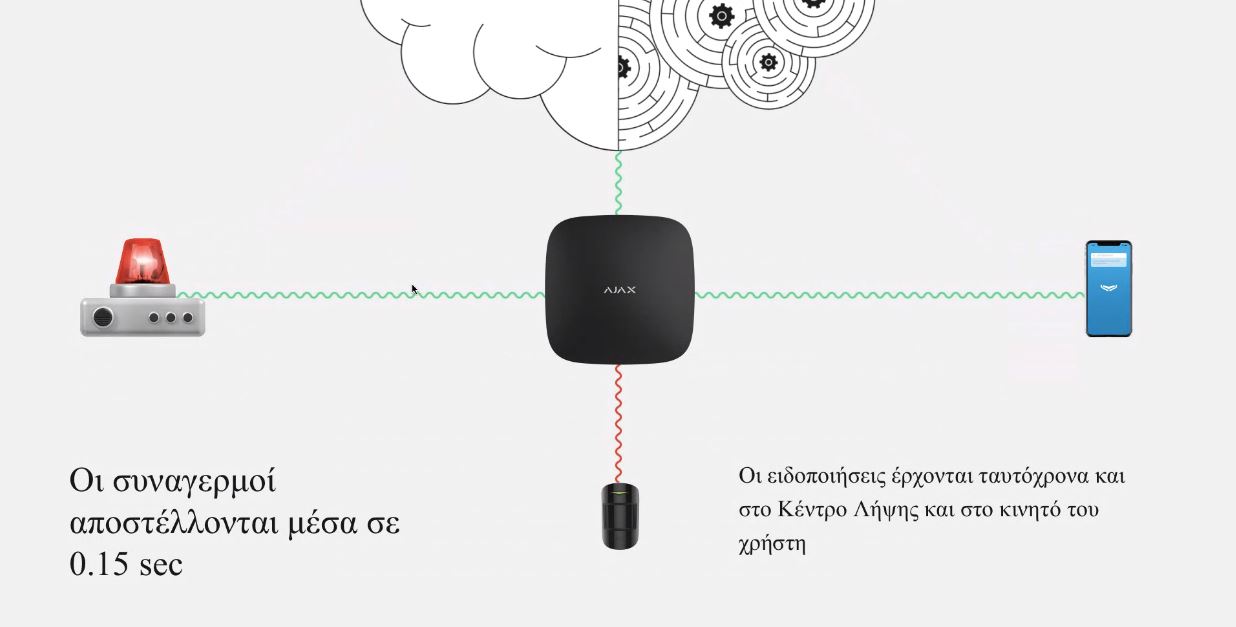

The Hub intelligent control panel is a key element of the Ajax security system. The device monitors operation of all Ajax detectors and immediately sends an alarm signal to the owner and the Central Monitoring Station

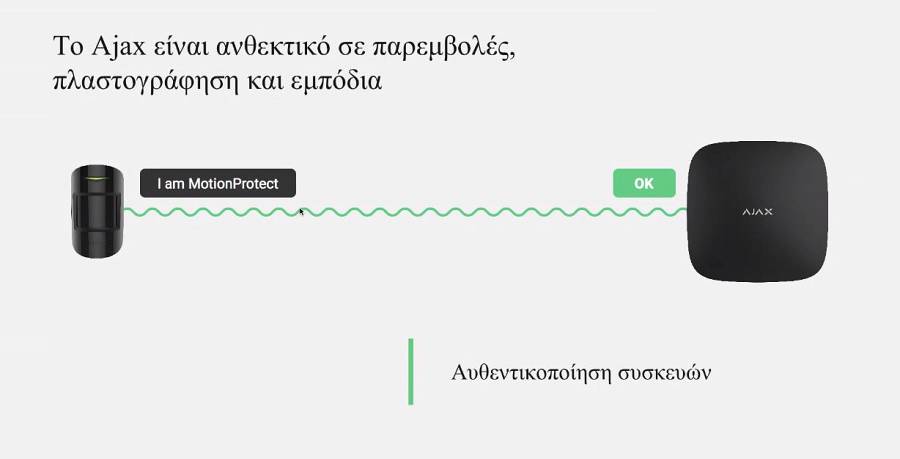

The device collects information on detector operation in an encrypted format, analyzes the data, and in case of alarm, notifies the system owner and the Central Monitoring Station in just milliseconds

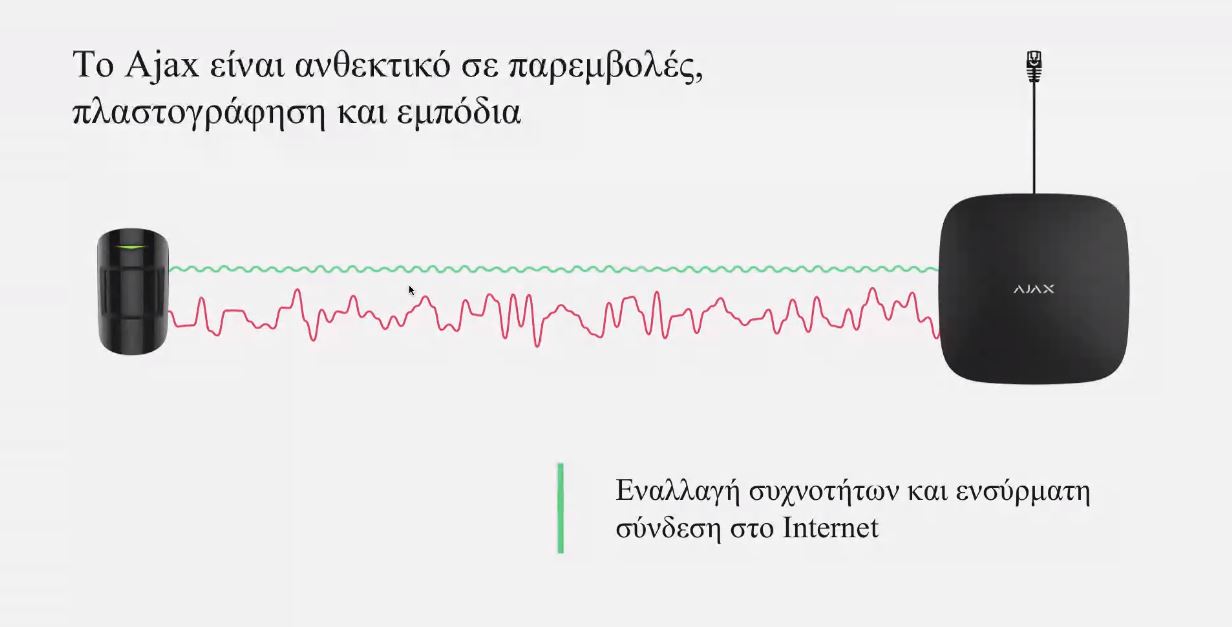

The device uses Jeweller radio technology to monitor the detectors and ensure a quick response to danger. It switches the entire system to clear frequencies during jamming. The device is protected against viruses at software level

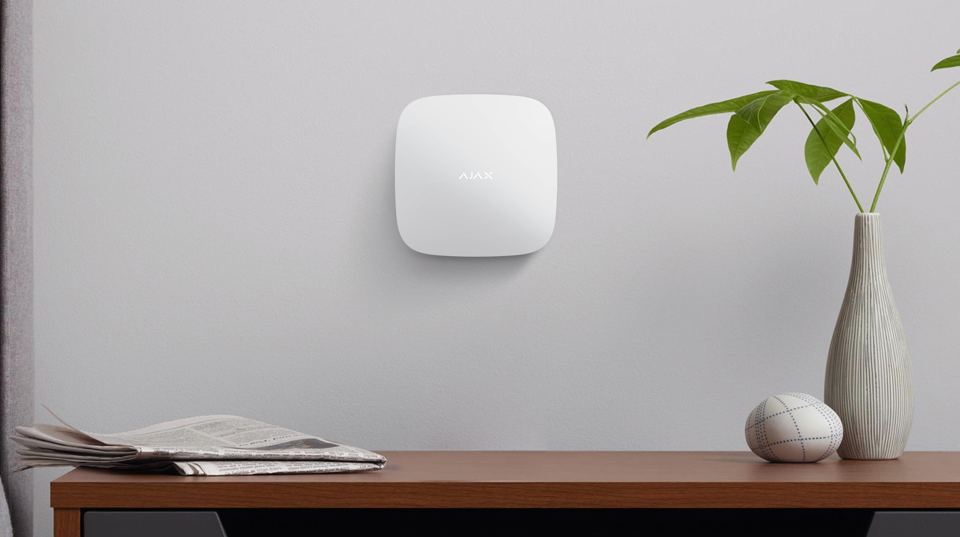

Ready to operate straight out the box. It is set using the mobile application, and the detectors are connected with just one click. It can be mounted in just a few minutes using the SmartBracket mount

Maximum number of connected devices : 100
Maximum number of the groups : 9
Maximum number of the Hub users : 50
Maximum number of logical rooms : 50
Power supply : 110 – 240 V AC, 50 / 60 Hz
Accumulator unit : Li-Ion 2 A⋅h (up to 15 hours of autonomous operation in case of inactive Ethernet connection)
Tamper protection : Yes
Frequency band : 868.0 – 868.6 MHz or 868.7 – 869.2 MHz
Effective radiated power : 8.20 dBm / 6.60 mW (limit 25 mW)
Modulation of the radiosignal : GFSK
Radio signal range : Up to 2,000 m (any obstacles absent)
Communication channels : GSM 850/900/1800/1900 MHz GPRS, Ethernet
Operating temperature range : From -10°? to + 40°?
Operating humidity : Up to 75%
Overall dimensions : 163 ? 163 ? 36 mm
Weight : 350 g
Certification : Security Grade 2, Environmental Class I SP2 (GSM-SMS), SP5 (LAN) DP3 in conformity with the requirements of EN 50131 and EN 50136
