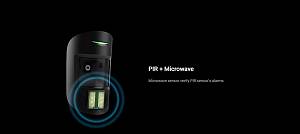

AJAX FIBRA PIR MotionProtect Plus White (Requires License)
Product code: 17710520 // MPN: 31238.02.WH1
New entry
€101,76 (inc. VAT)
Available from 1 to 3 days
Similar products
- ** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license
- MotionProtect Plus Fibra is a wired motion detector with an additional K-band microwave sensor. It can recognize movement at a distance of up to 12 meters. Together with the IR sensor, it applies a radio-frequency scan that filters out thermal interference. Does not respond to pets up to 50 centimeters tall and weighing up to 20 kilograms. For indoor installation
- MotionProtect Plus Fibra works as part of the Ajax security system, exchanging data with the hub using the secure Fibra wired protocol. The wired connection range is up to 2,000 meters when using a U/UTP cat.5 twisted pair
- MotionProtect Plus Fibra is a member of the product line of wired Fibra devices. The installation, sale, and administration of these devices are performed only by accredited Ajax partners
Compatibility
- Compatible hub models : Hub Hybrid (2G) / Hub Hybrid (4G)
Communication
- Fibra communication technology : Two-way communication / Advanced anti-sabotage / Instant notifications / Remote configuration via the app
- Bus connection : 4-core cable
- Encrypted communication
- Bus line length : up to 2,000 meters when using the U/UTP cat.5 twisted pair.
- Detection

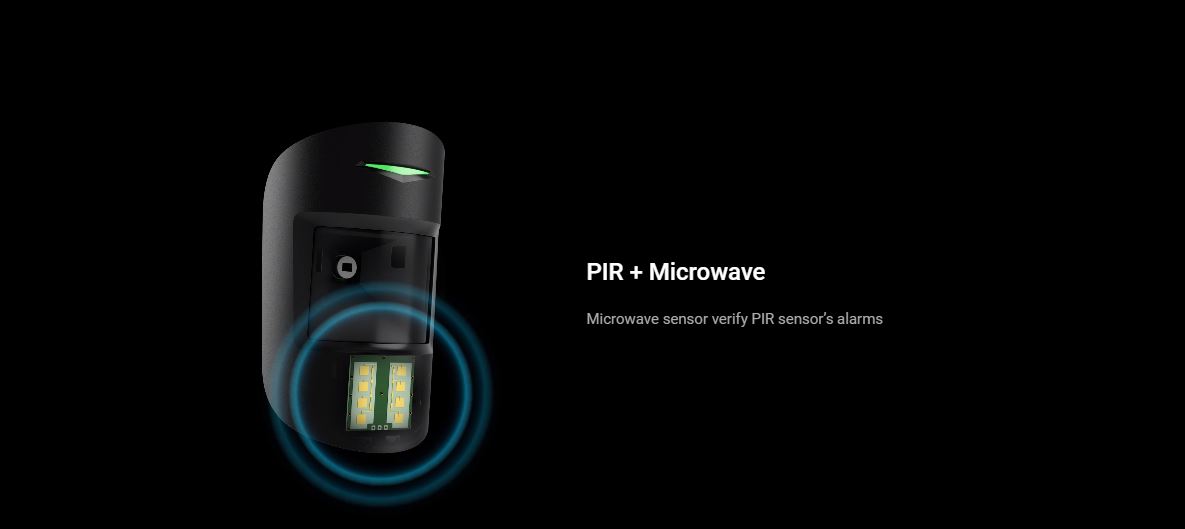

- Sensing element : 1 × PIR sensor / 1 × K-band microwave sensor
(When the device detects motion, it conducts an additional RF scan to eliminate false alarms) - Motion detection distance : up to 12 meters (When installed at 2.4 meters height)

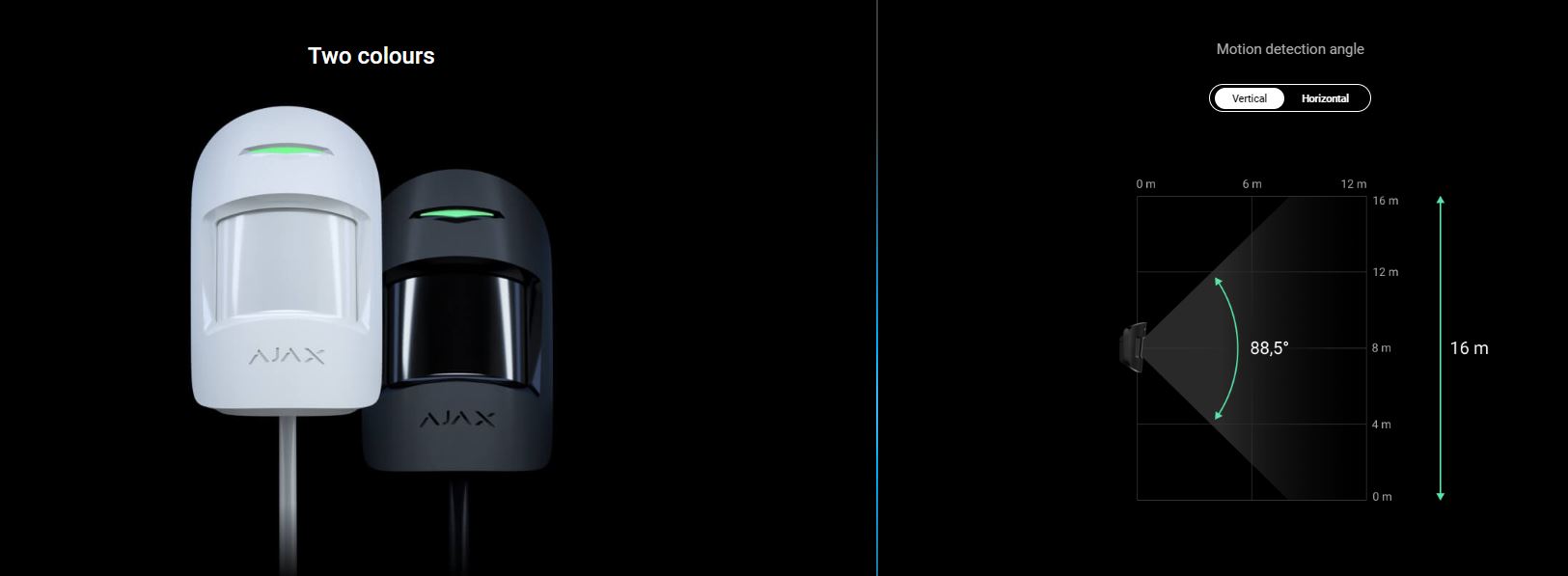

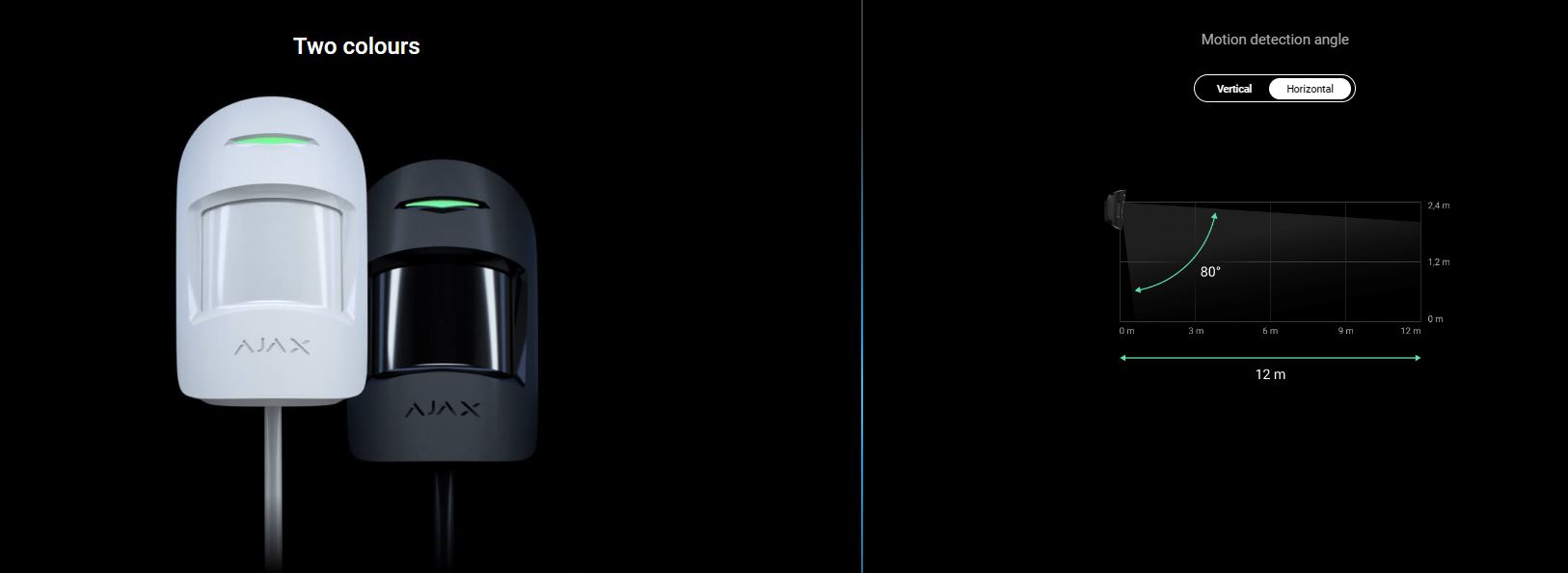

- Motion detection angles : horizontal — 88.5° / vertical — 80°
- Motion detection speed : from 0.3 to 2.0 m/s
- Sensitivity : 3 levels
- Pet immunity : up to 20 kg / up to 50 cm height
- False alarm prevention : SmartDetect / Software algorithm / K-band microwave sensor
- Temperature compensation : Effective motion detection within −10°C to +40°C range
Anti-sabotage protection
- Tampering alarm
- Protection against forgery : Device authentication
Power supply
- Fibra line power supply : 24 V⎓, up to 50 µA
Enclosure
- Dimensions : 110 × 65 × 50 mm
- Weight : 96 g
- Operating temperature range : from −10°C to +40°C
- Operating humidity : up to 75%
- Protection class : IP50
| Air & Curtain Prevention: | |
| Certification: | Grade 2,CE |
| Communication: | 2Way |
| Connectivity: | Wired |
| Installation: | Wall |
| Pet Immune: | Up to 20 Kg / Up to 50cm |
| Range: | Up to 2000 meters |
| Temperature Sensor: |
