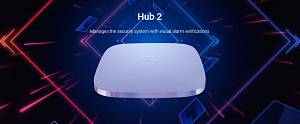

AJAX TCP-IP/GSM Alarm Hub2 (Supports PIR With Video Verification) White

New entry

Add to wishlist

Code: 17717820

Available from 1 to 3 days

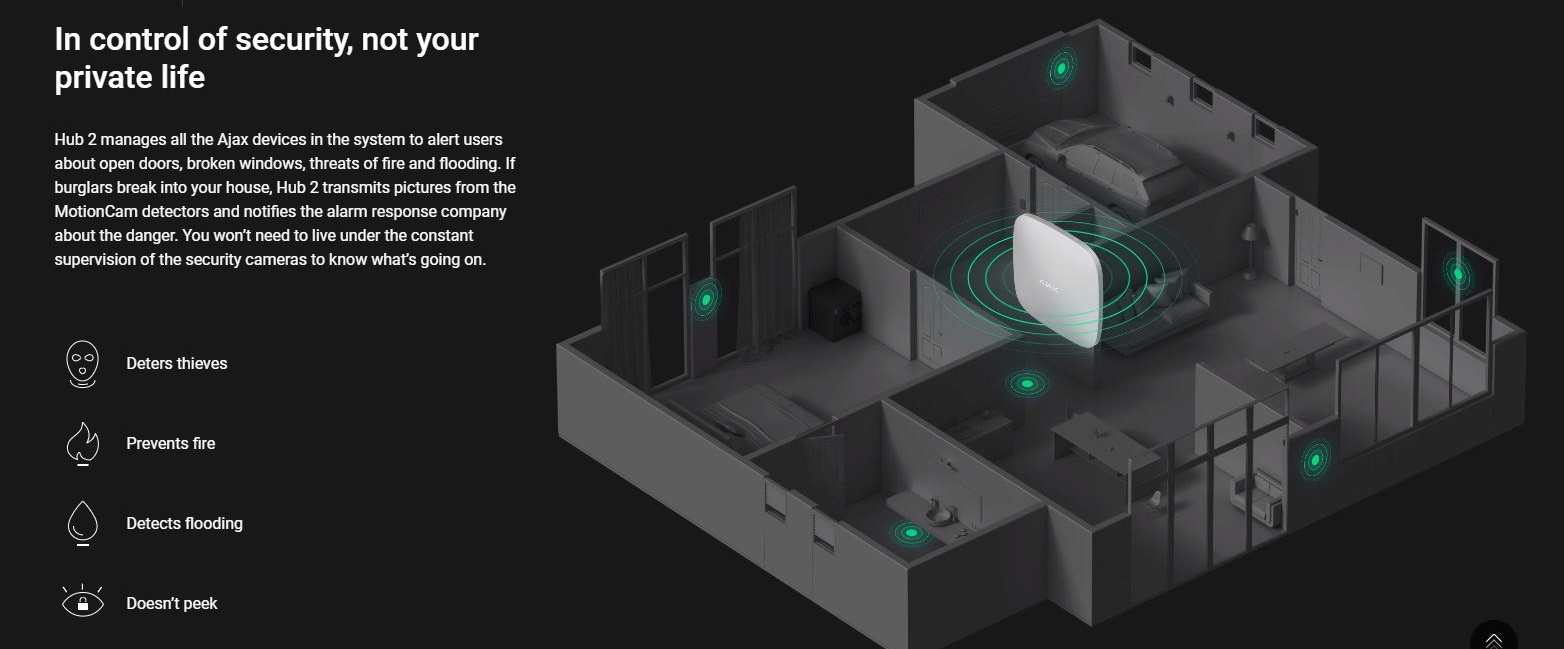

Hub 2 manages all the Ajax devices in the system to alert users about open doors, broken windows, threats of fire and flooding. If burglars break into your house, Hub 2 transmits pictures from the MotionCam detectors and notifies the alarm response company about the danger. You won’t need to live under the constant supervision of the security cameras to know what’s going on
The motion detectors react to dangerous situations as well as simple oversights. A nanny may bring the children home from the school and forget to disarm the security system, which will raise an alarm. With Hub 2, you won’t have to worry in those cases and waste money on the false alarm fines. Open an alarm notification sent by the MotionCam detector to see what happened
Hub 2 central panel uses Ethernet or one of the 2 SIM cards to guarantee the delivery of the alarms and photos from the secured objects. The channels work in parallel and back each other up in case of emergency
Compression and transmission protocols guarantee lightning-fast delivery of the photo series even with weak Internet connectivity. Unlike with the video camera streams, with Ajax, you can evaluate the situation on the secured objects at the 0.5 kB/s Internet speed

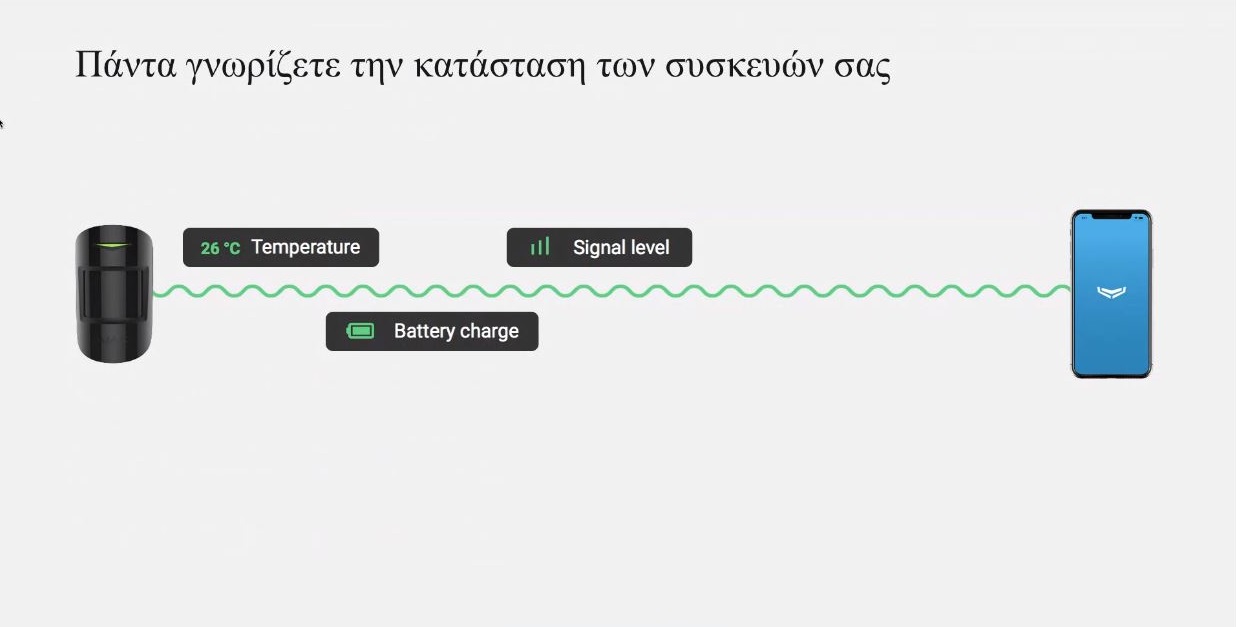

With Hub 2, you’ll know immediately if the detector has a malfunction, if someone removed it, if it is damaged, or if its body is open. Even if the lights suddenly go out, the control panel will continue its watch powered by a back-up battery

Classification : Intelligent security system control panel supporting ethernet and two SIM cards
Maximum number of connected devices : 100
Maximum number of the groups : 9
Maximum number of the Hub users : 50
Maximum number of logical rooms : 50
Scenarios : Up to 32 (Reactions by arming and disarming are not included in the overall limit of the hub’s scenarios)
Power supply : 110 – 240 V AC, 50 / 60 Hz

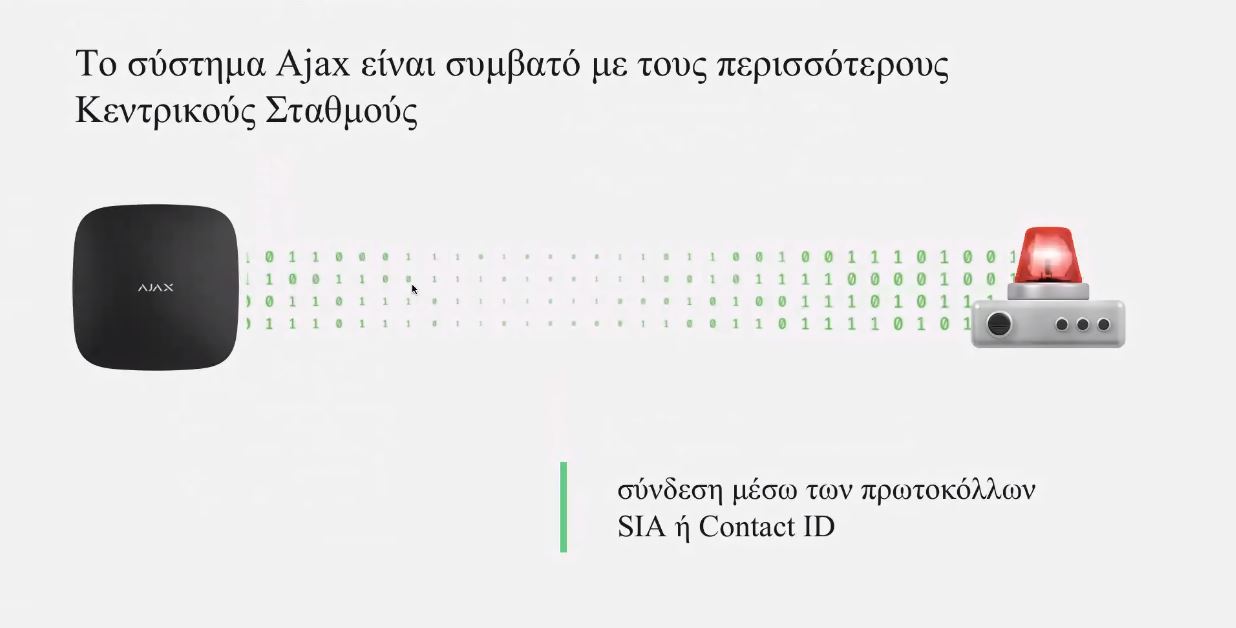

Central Monitoring Station communication protocols : Contact ID, SIA
Built-in rechargeable battery : Li-Ion 2 Ah (up to 16 hours of battery life when Ethernet connection is disabled)
Energy consumption from the grid : 10 Wh
Tamper proof : Available, tamper
Operating frequency band : 868.0 – 868.6 MHz or 868.7 – 869.2 MHz, depending on the sales region
RF output power : 8.20 dBm / 6.60 mW (limit 25 mW)
Radio signal modulation : GFSK
Radio signal range : Up to 2,000 m (any obstacles absence)
Communication channels : 2 SIM cards (GSM 850/900/1800/1900 MHz GPRS) / Ethernet
Operating temperature range : From -10°? to +40°?
Operating humidity : Up to 75%
Dimensions : 163 × 163 × 36 mm
Weight : 362 g
