Best performance and link quality for your network. Ideal for industrial applications.

- With PUR (Polyurethane) sheath for oil- and UV resistance
- Molded boot with kink protection. strain relief and latch protection
- Conductor: Copper (Cu)
- PoE+ ready

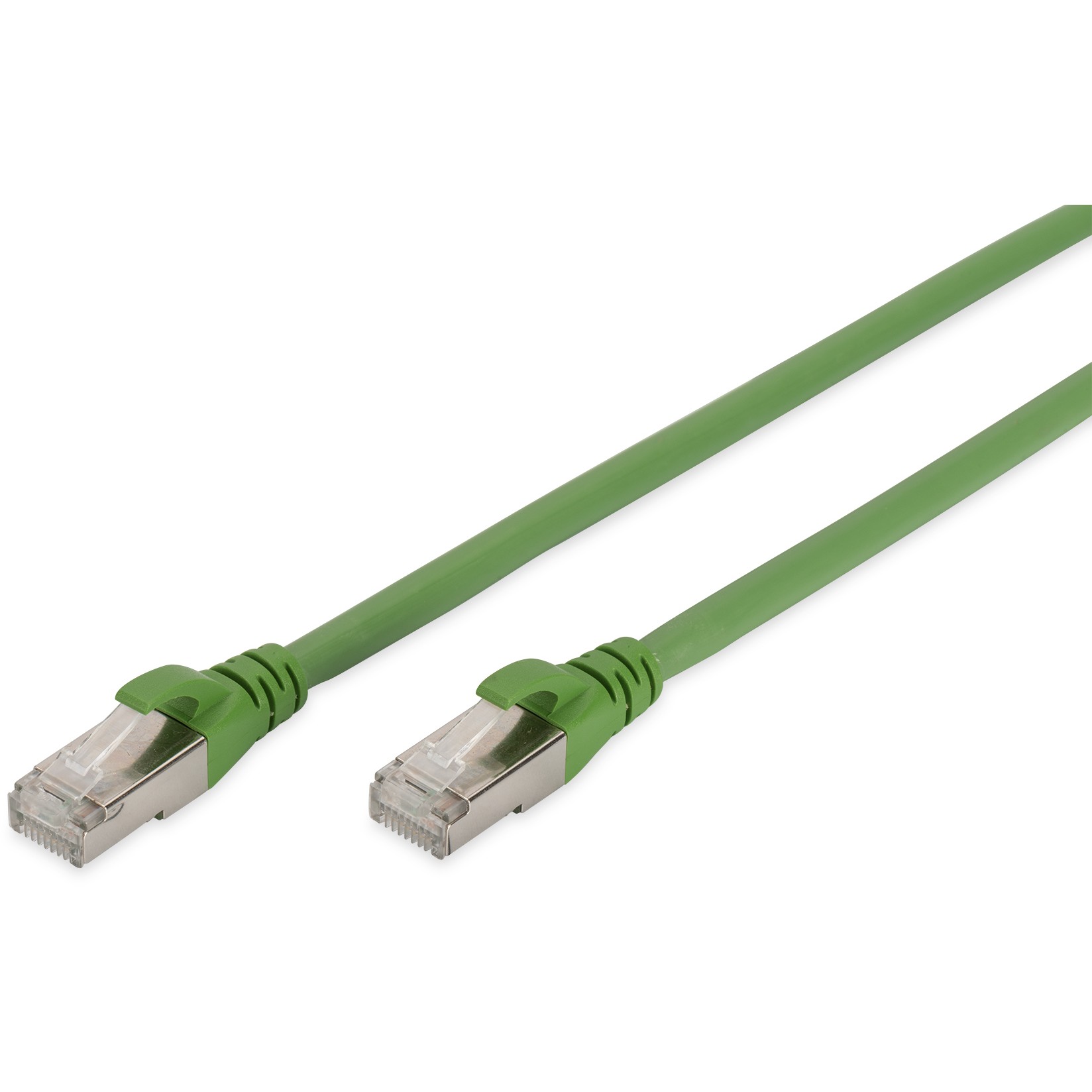

The category 6A. S/FTP patch cords offer good reliability against oil with its PUR sheath. Therefore they are perfect for industrial applications. Further features of the PUR sheath are the UV resistance and the self-extinguishing fire behavior. DIGITUS® Category 6A Class E A patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 A specifications. They will guarantee the installed cabling system is compliantwith the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6A cabling. The performance is tested up to 500 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). All patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking.

Features
Product colour: Green
Cable length: 10 m
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Jacket material: Polyurethane (PUR)
Conductor material: Copper
Twisted pair coupling type: 4x2
AWG wire size: 26/7
Frequency: 500 MHz
Feature: Molded cable boot
Feature: Plug and Play
Country of origin: China
Sustainability
Doesn't contain: Halogen
Weight & dimensions
Weight: 310 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 190 mm
Package depth: 50 mm
Package height: 270 mm
Package weight: 352.5 g
Package volume: 2565 cm³
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444210
Master (outer) case width: 310 mm
Master (outer) case length: 420 mm
Master (outer) case gross weight: 14.1 kg
Master (outer) case height: 280 mm
Products per master (outer) case: 40 pc(s)
Master (outer) case volume: 36456 cm³
