POWER SUPPLY (PSU)

Exceptional quiet. superior features

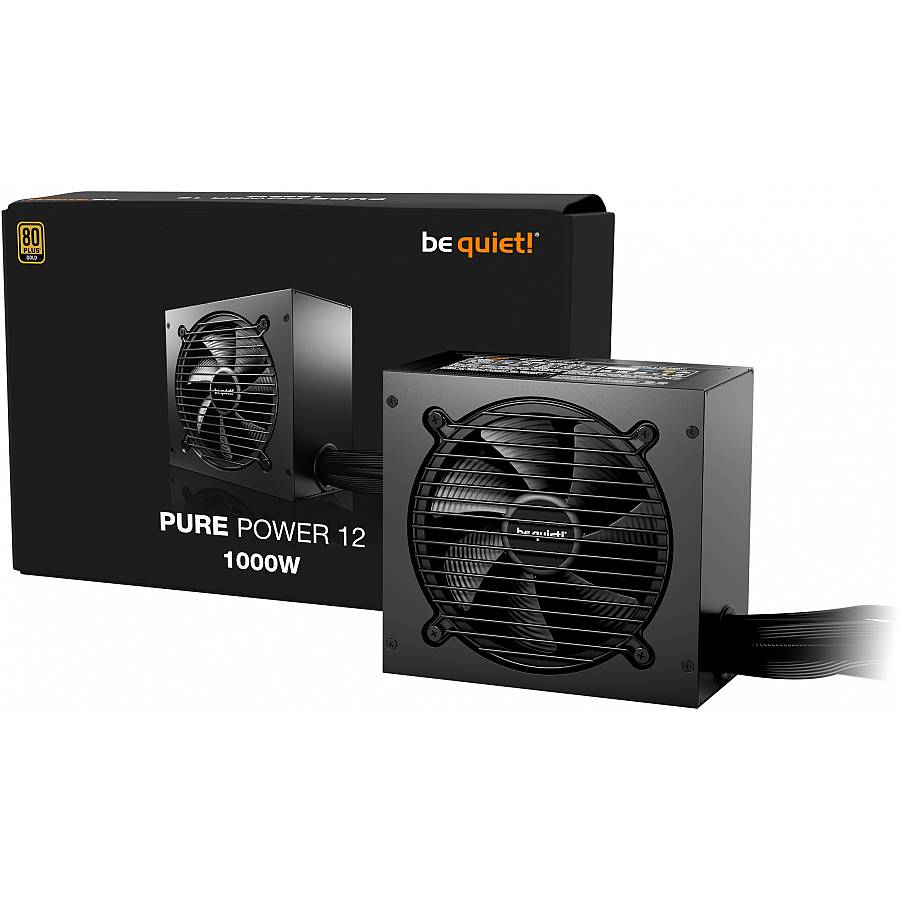

Pure Power 12 1000W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery. this PSU offers remarkable convenience and outstanding compatibility.

Power
Total power: 1000 W
Peak power: 1050 W
AC input voltage: 110 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 12 A
Maximum input current (@220V): 6 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 1000 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V1): 83.4 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 17.82 ms
Efficiency: 90.6%
Power protection features: Over current. Over power. Over voltage. Overheating. Short circuit. Surge & inrush protection (SIP). Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 500.650.800.950 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 800 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (12-pin): 1
PCI Express power cable length: 60 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 60 cm
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 31.6 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Packaging content
Cables included: AC
Feature: Cable tie(s) included
Certificates
Compliance certificates: CB. CE. Federal Communications Commission (FCC). RoHS. UKCA. WEEE. cTUVus
Weight & dimensions
Width: 86 mm
Depth: 160 mm
Height: 150 mm
Weight: 2.8 kg
Packaging data
Package width: 133 mm
Package depth: 320 mm
Package height: 210 mm
Package weight: 3.2 kg
Technical details
Sustainability certificates: ENERGY STAR. ErP. Triman
Logistics data
Shipping (inner) case length: 56 cm
Shipping (inner) case width: 24 cm
Shipping (inner) case height: 34 cm
Shipping (inner) case net weight: 13.9 kg
Products per shipping (inner) case: 4 pc(s)
Warranty period: 10 year(s)
Other features
Feature: Screws included
