POWER SUPPLY (PSU)

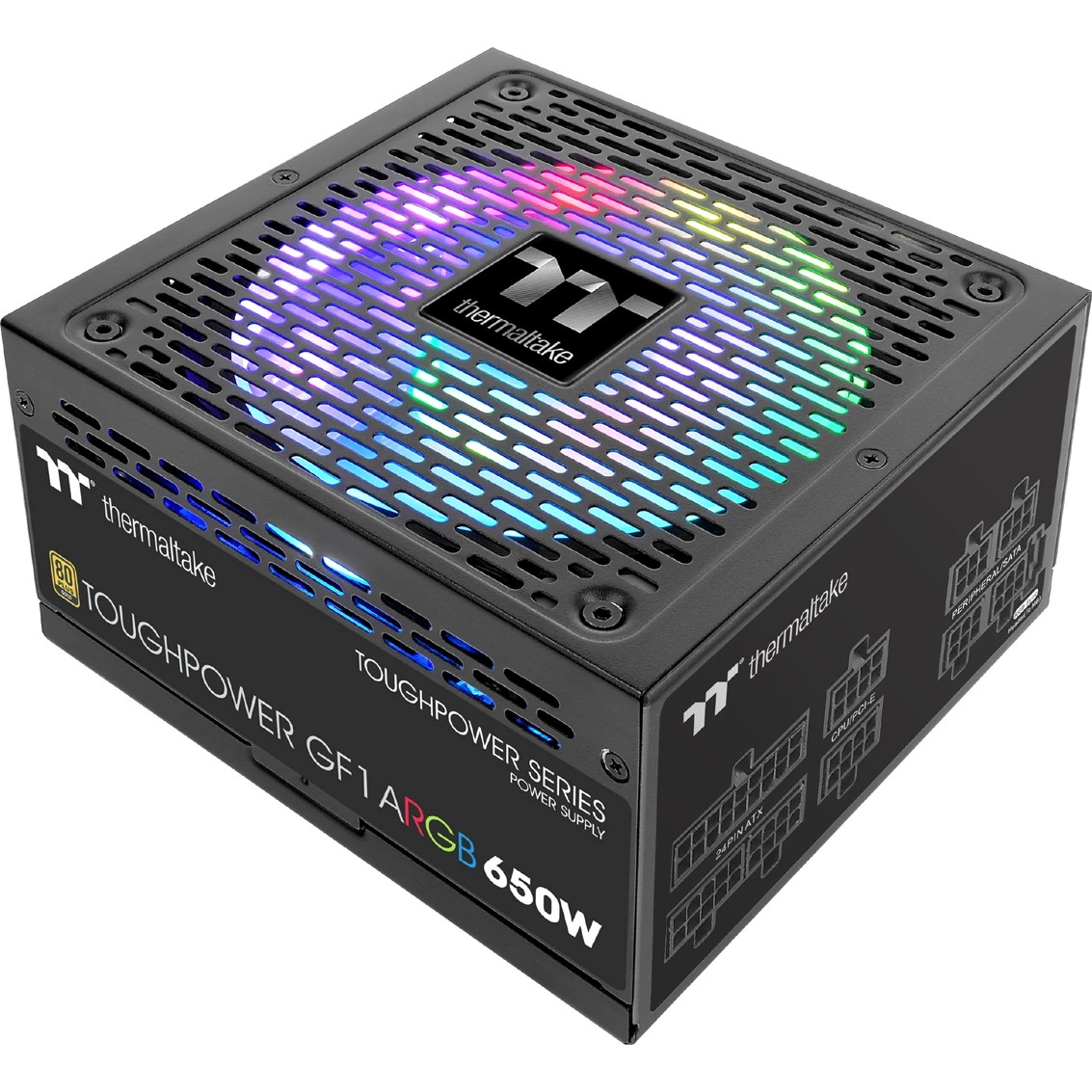

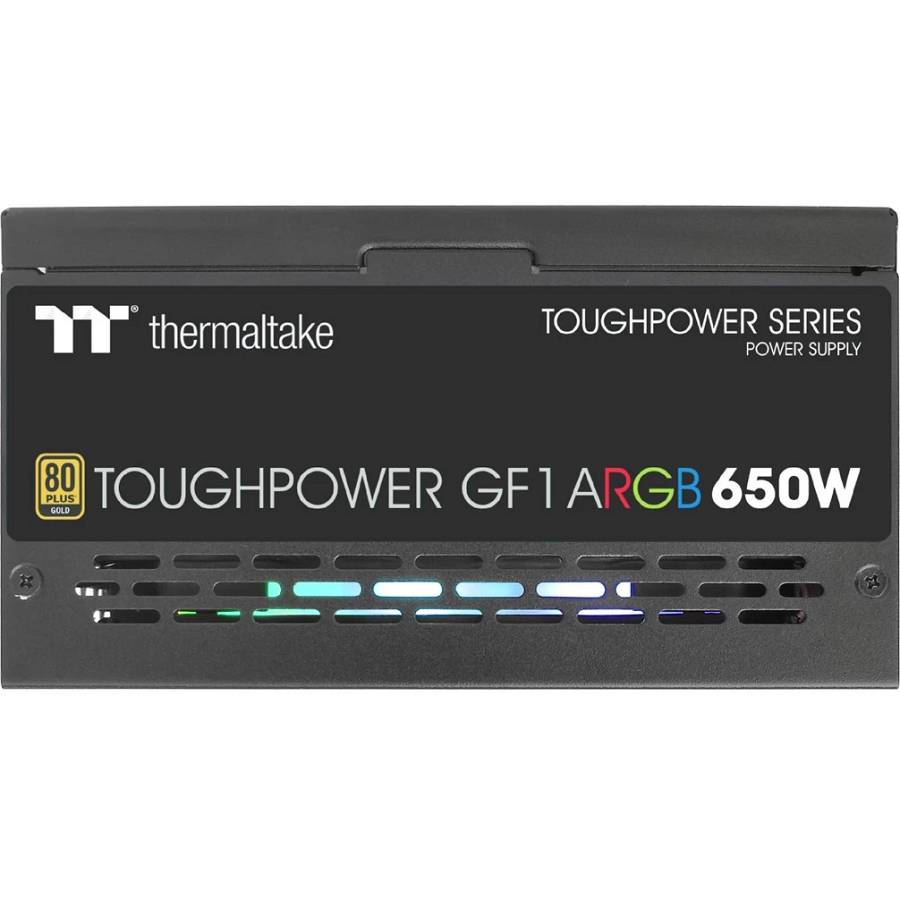

Toughpower GF1 ARGB 650W Gold – TT Premium Edition
Toughpower GF1 ARGB Gold Series (650W/750W/850W) is crafted by using cutting-edge technology and materials to become the fusion of aesthetics and performance. The patented 16.8 million-color Riing Duo 14 RGB fan with 18 LEDs preinstalled helps deliver brighter and stunning light effect. The meticulously designed ARGB side panels enable the light to glow through. The series supports synchronization with compatible RGB motherboards from ASUS. GIGABYTE. MSI. and ASRock for countless illumination possibilities. With the most stable but silent operation. the Toughpower GF1 ARGB Gold meets and even exceeds the demanding specification of the overclocker or enthusiastic PC user.

Shining from Perfect Circles
Show off the fascinating illumination through the unique ARGB side cover design and add the amazing effect on your build.

Sync with Motherboard ARGB Software
To reach endless lighting customization. the Toughpower GF1 ARGB supports motherboards with a 5V addressable RGB header from ASUS. GIGABYTE. MSI. and ASRock. Users get to control the lights directly from the software released by those brands without enabling any additional lighting software or controllers. For more details. please visit ASUS. GIGABYTE. MSI and ASRock official websites.

Zero Cable Platform
Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality

Ultra Quiet Smart Zero Fan
With Smart Zero Fan starting to operate when the power supply working load goes over 40%. the undesired noise will be minimized. A user-friendly switch is set on the back panel for those who prefer the fan to spin constantly.

< 30 mV Low Ripple Noise
All ripples are lower than 30mV on +12V. +5V. or +3.3V from 0% to 100% load to ensure an excellent performance and a reliable operation.

Extremely Strict Voltage Regulation ≤±2%
The voltage regulation. more strict than Intel’s standard ±5% for major rails and ±10% for -12V. is set to no more than ±2% for major rails to meet the highest performance.

Fully Modular Low-profile Flat Black Cables
The series offers cable selection for users while powering the system at an advantageous voltage. The low-profile flat black cables make cable management easier. reduce clutter and increase airflow inside the chassis.

Fully Modular Low-profile Flat Black Cables
The series offers cable selection for users while powering the system at an advantageous voltage. The low-profile flat black cables make cable management easier. reduce clutter and increase airflow inside the chassis.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Power
Total power: 650 W
Peak power: 780 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 650 W
Combined power (+5V): 120 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 54.2 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current. Over voltage. Short circuit

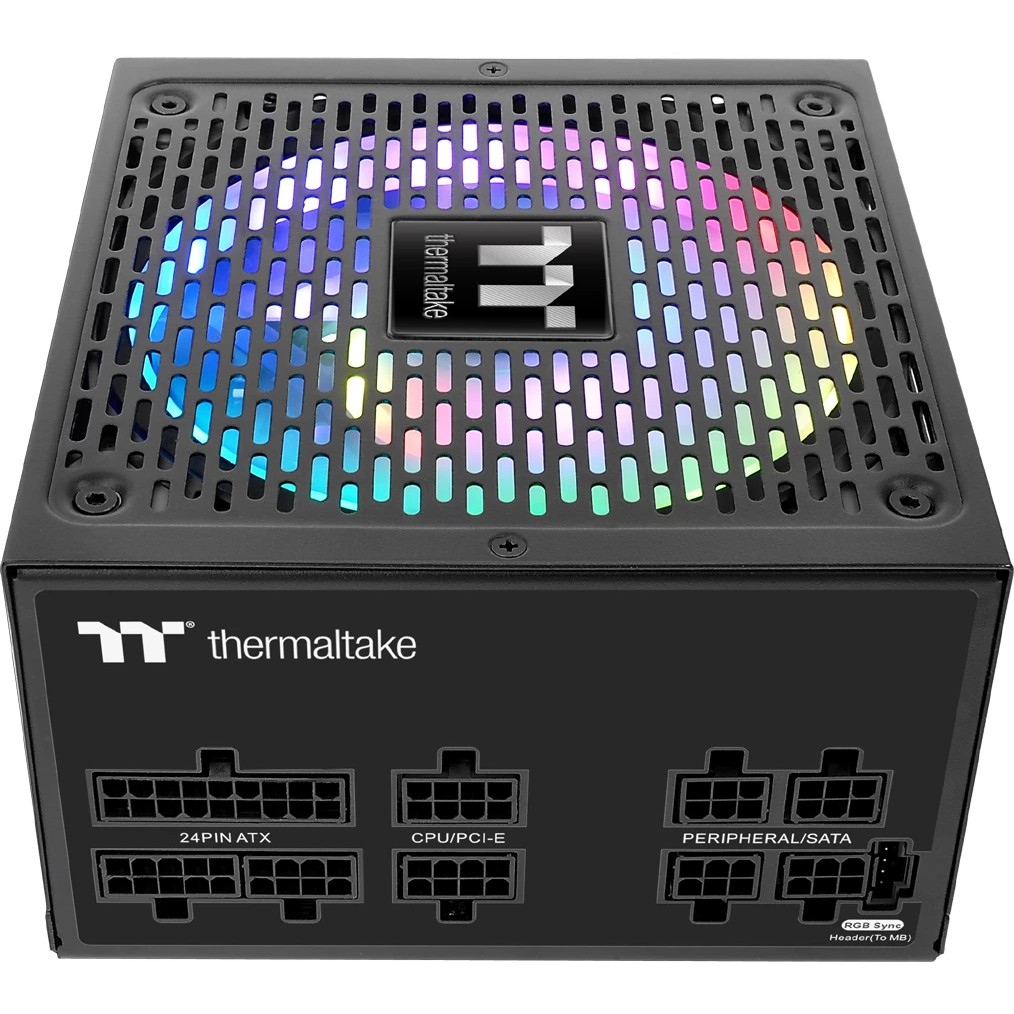

Ports & interfaces
Motherboard power connector: 20-pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 9
SATA power cable length: 150.500 mm
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 4
Feature: CPU power connector (4+4 pin)
Feature: ATX Power connector (24-pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 120000 h
Design
Product colour: Black
Number of fans: 1 fan(s)
Feature: Illumination
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm
Logistics data
Harmonized System (HS) code: 84733020
