NETWORK ANTENNAS

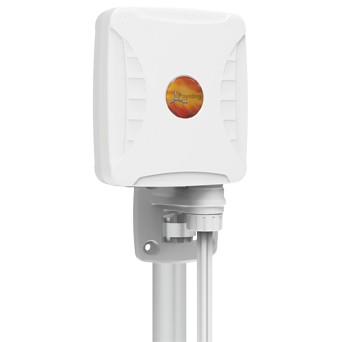

The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL). cellular band. 2x2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 - 3800 MHz bands as well as the in demand lower 617 MHz band. which were not previously covered by our V1 and is suitable for 2G. 3G. 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz. 1700 – 2170 MHz. 2300 – 2700 MHz & 3400 – 3800 MHz. with a peak gain of 4 dBi across the frequency bands of operation. The radiation patterns of this antenna are omni-directional and exceptionally well controlled. further adding to the performance of the antenna. This makes the antenna perfect for most application areas. such as urban. rural. agricultural and commercial. to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather. dust and vandal resistant and gives it an IP65 rating. suitable for harsh environments.

Performance
Frequency band: 0.617 - 3.4 GHz
Impedance: 50 Ω
Antenna gain level (max): 4 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Voltage Standing Wave Ratio (VSWR): 2.5:1
Product colour: White
Protection features: Dust resistant. UV resistant. Water resistant
International Protection (IP) code: IP65
Feature: Ultraviolet (UV) resistant
Survival wind speed: 250 km/h
Power handling: 10 W
Cable length: 5 m
Cable type: HDF-195
Mounting: Wall/Pole
Purpose: Outdoor
Certificates
Feature: Sustainability compliance
Compliance certificates: CE. RoHS
Operational conditions
Operating temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 157 mm
Depth: 88 mm
Height: 247 mm
Weight: 1.24 kg
Packaging data
Package width: 270 mm
Package depth: 190 mm
Package height: 100 mm
Package weight: 1.34 kg
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Country of origin: China
