** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license
CombiProtect Fibra is a wired motion and glass break detector. Detects movement at a distance of up to 12 metres and glass break at a distance of up to 9 metres. Does not react to pets up to 50 centimetres tall and weighing up to 20 kilograms. For indoor installation
The detector is compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Connection to other other hubs, radio signal range extenders, ocBridge Plus, and uartBridge is not provided. Integration with other security systems is not provided either.
CombiProtect Fibra works as part of the Ajax security system, exchanging data with the hub using the secure Fibra protocol. The communication range is up to 2,000 m when connected via twisted pair U/UTP cat.5
CombiProtect Fibra is a member of the product line of wired Fibra devices. The installation, sale, and administration of these devices are performed only by accredited Ajax partners

Compatibility

Communication

Fibra communication technology : Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: Two-way communication / Advanced anti-sabotage / Instant notifications / Remote configuration via the app
Bus connection: 4-core cable
Encrypted communication
Bus line length : up to 2,000 meters / When using twisted pair U/UTP cat.5

Motion detection

Sensing element : 1 × PIR sensor
Motion detection distance : up to 12 meters When installed at 2.4 meters height

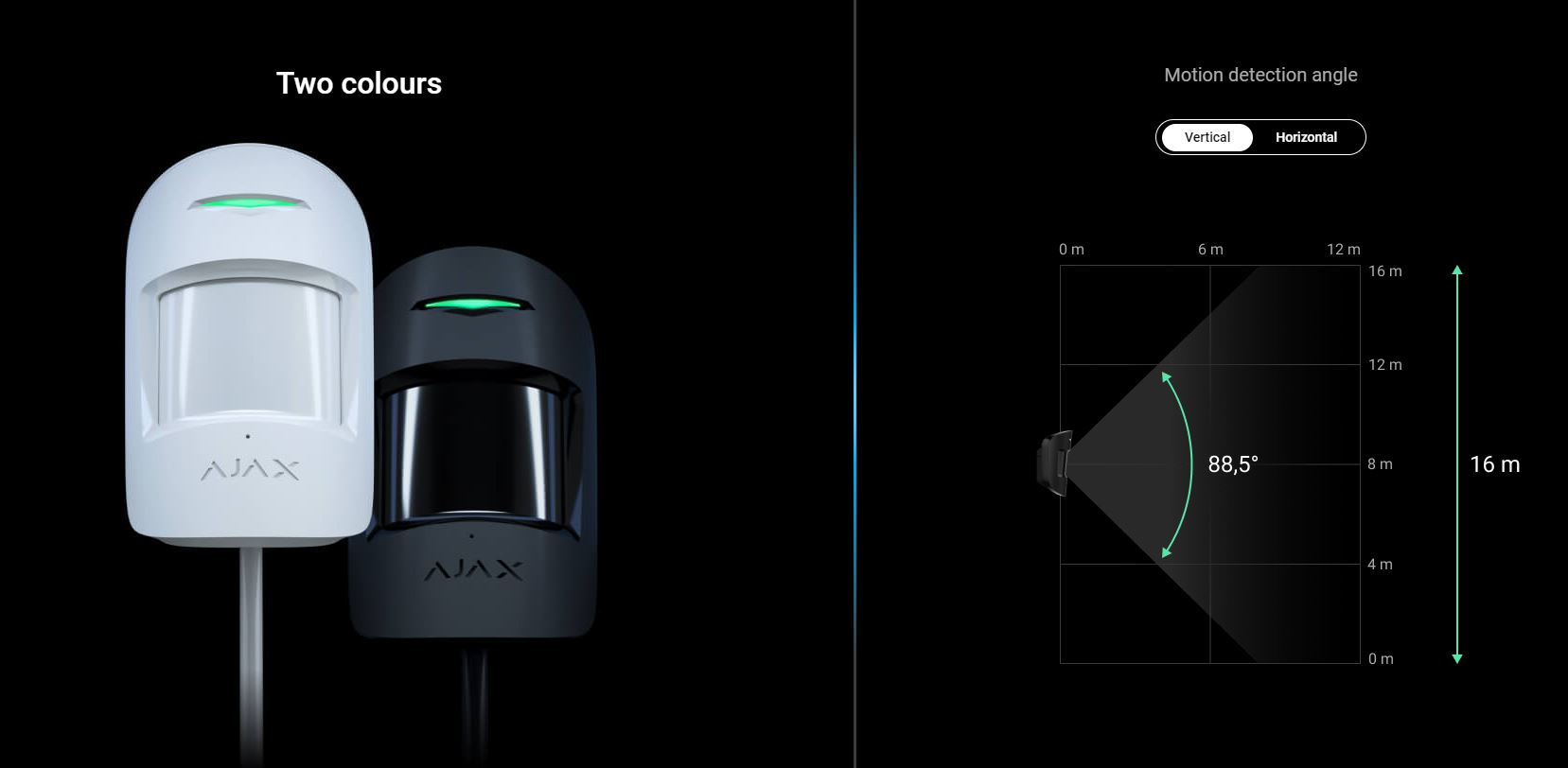

Motion detection angles : horizontal — 88.5° / vertical — 80°
Motion detection speed : from 0.3 to 2.0 m/s / The direction of the detector lens should be perpendicular to the intended path of entry into the facility
Sensitivity : 3 levels / Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app
Pet immunity : up to 20 kg / up to 50 cm height
False alarm prevention : SmartDetect
Temperature compensation : Effective motion detection within −10°C to +40°C range
Recommendations : It is recommended to install the detector on 2.4 meter height
Device is designed for indoor use only

Glass break detection

Sensing element : 1 × electret microphone
Glass break detection distance : up to 9 meters
Glass break detection angles : horizontal — 180° / vertical — N/A
Sensitivity : 3 levels / Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app
False alarm prevention : DualTone / Two-factor glass break verification software algorithm: by low and high frequencies

Anti-sabotage protection

Tampering alarm : Alerts of attempts to detach the detector from the surface or remove the mounting panel
Protection against forgery : Device authentication

Power supply
