10GbE RJ-45 network upgrade module for compact Synology servers.

Maximize bandwidth to tackle heavy-duty applications

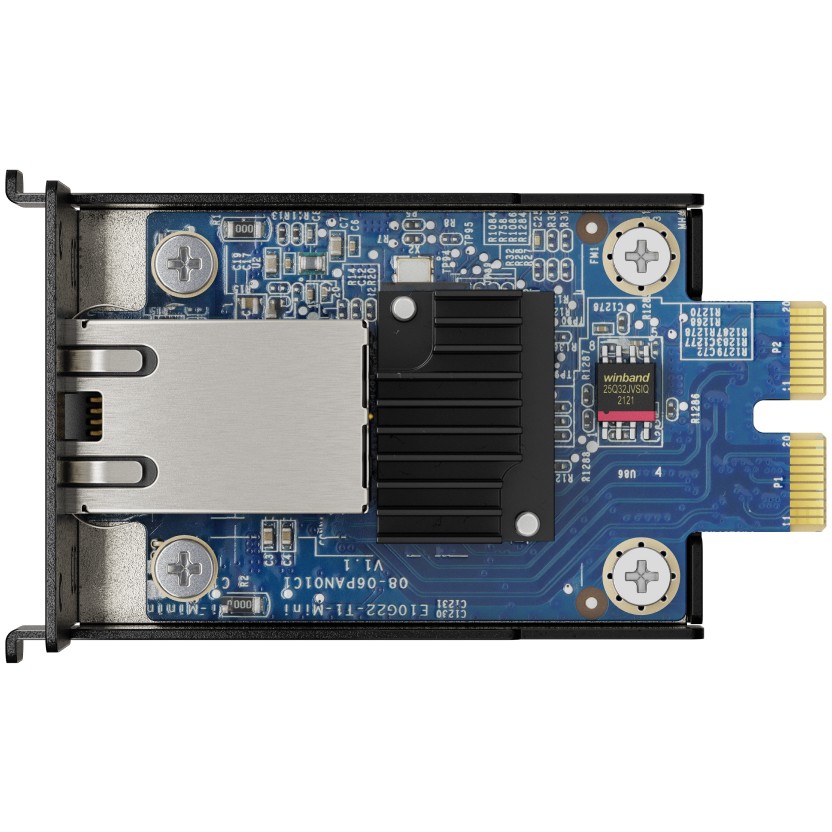

The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity. Simple installation. low implementation cost. and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.

Throughput

Expand system capabilities with 10GbE connectivity

Flexibility

Integrate easily with support for 10/5/2.5/1 Gbps networks

Compatibility

Designed for maximum performance and reliability in Synology systems.

Simple installation

Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly add bandwidth availability in Synology servers featuring compact-size enclosures.

Multi-gig support

Integrate into any RJ-45 network environment with autonegotiation between 10. 5. 2.5. 1 Gbps. and 100 Mbps data rates based on actual network conditions.

Ports & interfaces
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
Network
Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.3ab. IEEE 802.3an. IEEE 802.3bz. IEEE 802.3u. IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
Ethernet LAN data rates: 100.1000.2500.5000.10000 Mbit/s
Cabling technology: 10GBase-T
Feature: Full duplex
Feature: Jumbo frames support
Feature: Auto-negotiation
Jumbo frames: 9000
Design
Component for: NAS/storage server
Product colour: Blue
Feature: Internal
Compatible products: Synology RS422+. DS1522+
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 45.4 mm
Depth: 75.7 mm
Height: 26.4 mm
Other features
Interface type: PCIe 3.0 x2
