ACCESS POINTS

WiFi 6. Wait No More

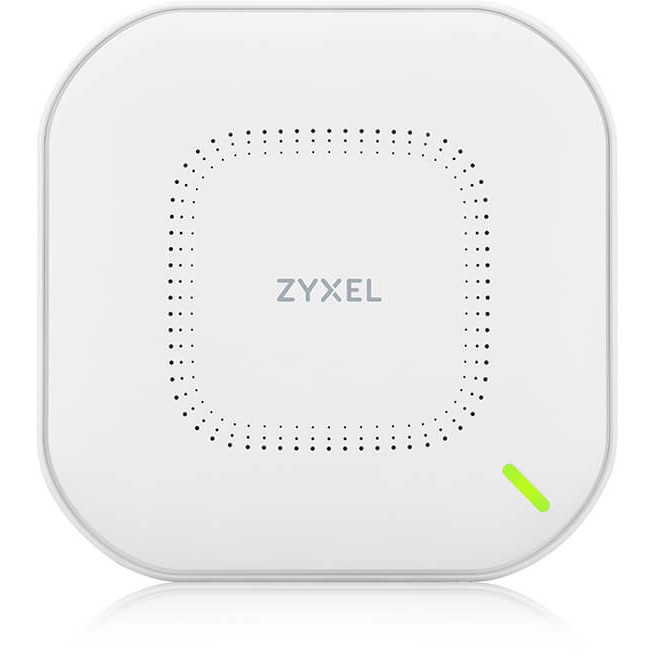

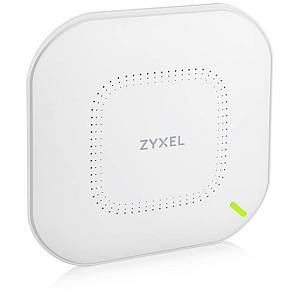

NWA110AX The Best Deal of 11ax Access Point

True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.

Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget. allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches

Manage it your way!
As it comes with support for NebulaFlex. Zyxel’s scalable. cloud-based management system. the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.

Features
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1000 Mbit/s
Maximum data transfer rate (2.4 GHz): 575 Mbit/s
Maximum data transfer rate (5 GHz): 1200 Mbit/s
Ethernet LAN data rates: 10.100.1000 Mbit/s
Frequency band: 2.412 - 2.472. 5.470 - 5.725 GHz
Bandwidth: 0.08 GHz
Networking standards: IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Fast roaming
Feature: VLAN support
Virtual LAN features: SSID-based VLAN assignment
Feature: Band steering
Transmitting power: 22 dBmW
Receiver sensitivity: Min. Rx sensitivity up to -101 dBm
Security
Security algorithms: WPA. WPA-PSK. WPA2. WPA2-Enterprise. WPA3
Protocols
Routing protocols: IP
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
Management features
Feature: Web-based management
Feature: Command-line interface (CLI)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Power
Feature: Power over Ethernet (PoE)
AC input voltage: 5 - 12 V
Input current: 1.5 A
Power consumption (typical): 17 W
Design
Placement: Ceiling. Table. Wall
Product colour: White
Feature: On/off switch
Feature: Reset button
Feature: WPS push button
Feature: LED indicators
Antenna
Antenna type: Internal
Antenna features: Integrated antenna
Antennas quantity: 2
Antenna gain level (max): 6 dBi
Polarization: Dual polarization
Weight & dimensions
Width: 180 mm
Depth: 180 mm
Height: 39 mm
Weight: 453 g
Packaging data
Package width: 229 mm
Package depth: 216 mm
Package height: 64 mm
Package weight: 770 g
Packaging content
Quantity per pack: 1 pc(s)
Feature: AC adapter included
Feature: Mounting kit
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -30 - 70 °C
Storage relative humidity (H-H): 10 - 90%
Logistics data
Harmonized System (HS) code: 85176990
