POWER SUPPLY (PSU)

PN750M

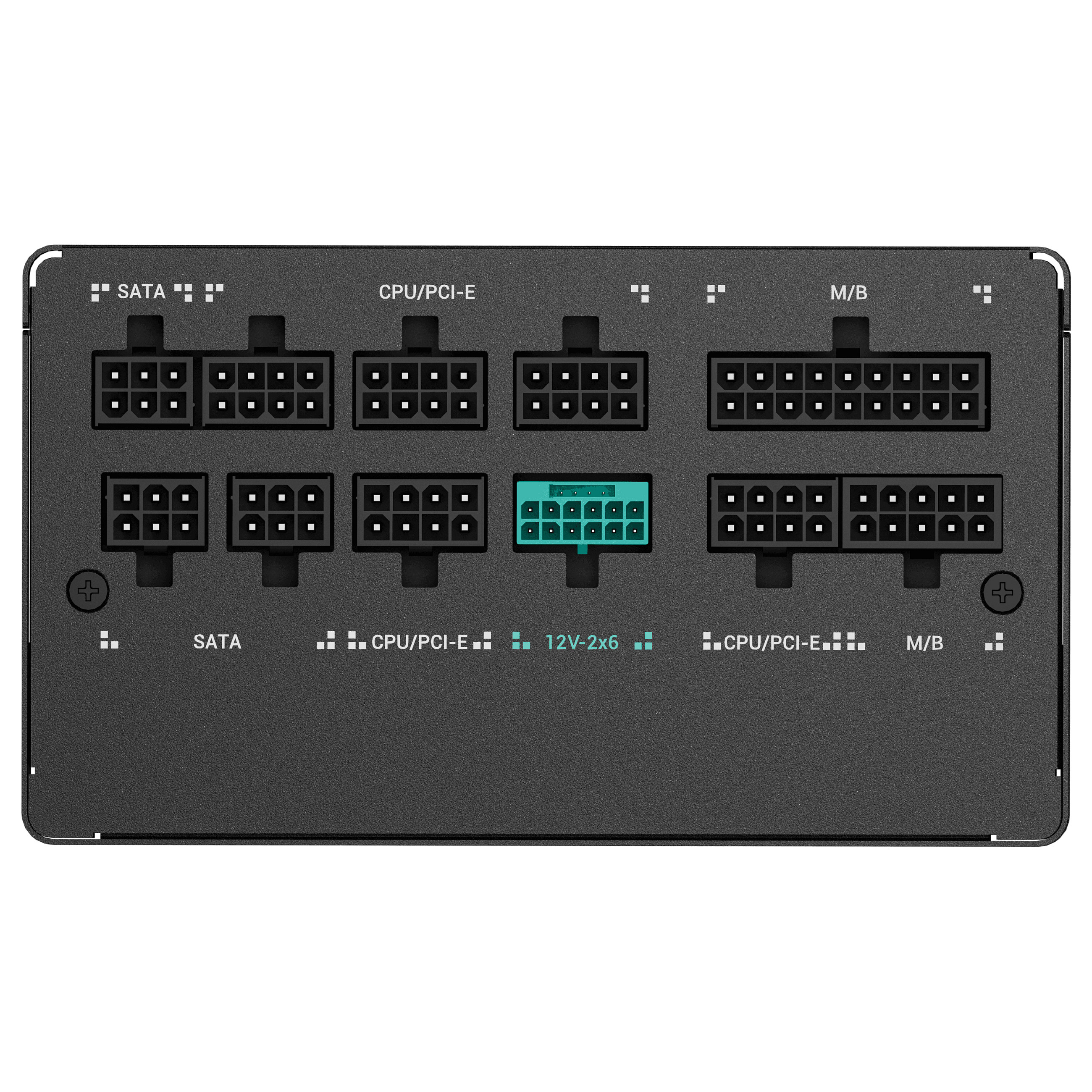

The DeepCool PN750M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6. 5 EPS/PCIe ports. the PN750M provides stable power for a wide range of modern high-power components.

PN750M
NATIVE ATX3.1

FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms. random power spikes will never be an issue. The PN750M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor. active PFC. full-bridge SRC LLC. and a DC-to-DC topology. the PN750M can keep the hold-up time to ≥ 16 ms under a high load of 80%.

PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable. the PN750M provides up to 450W for modern GPUs.

SLEEVED CABLES
The PN750M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

DYNAMIC FDB FAN

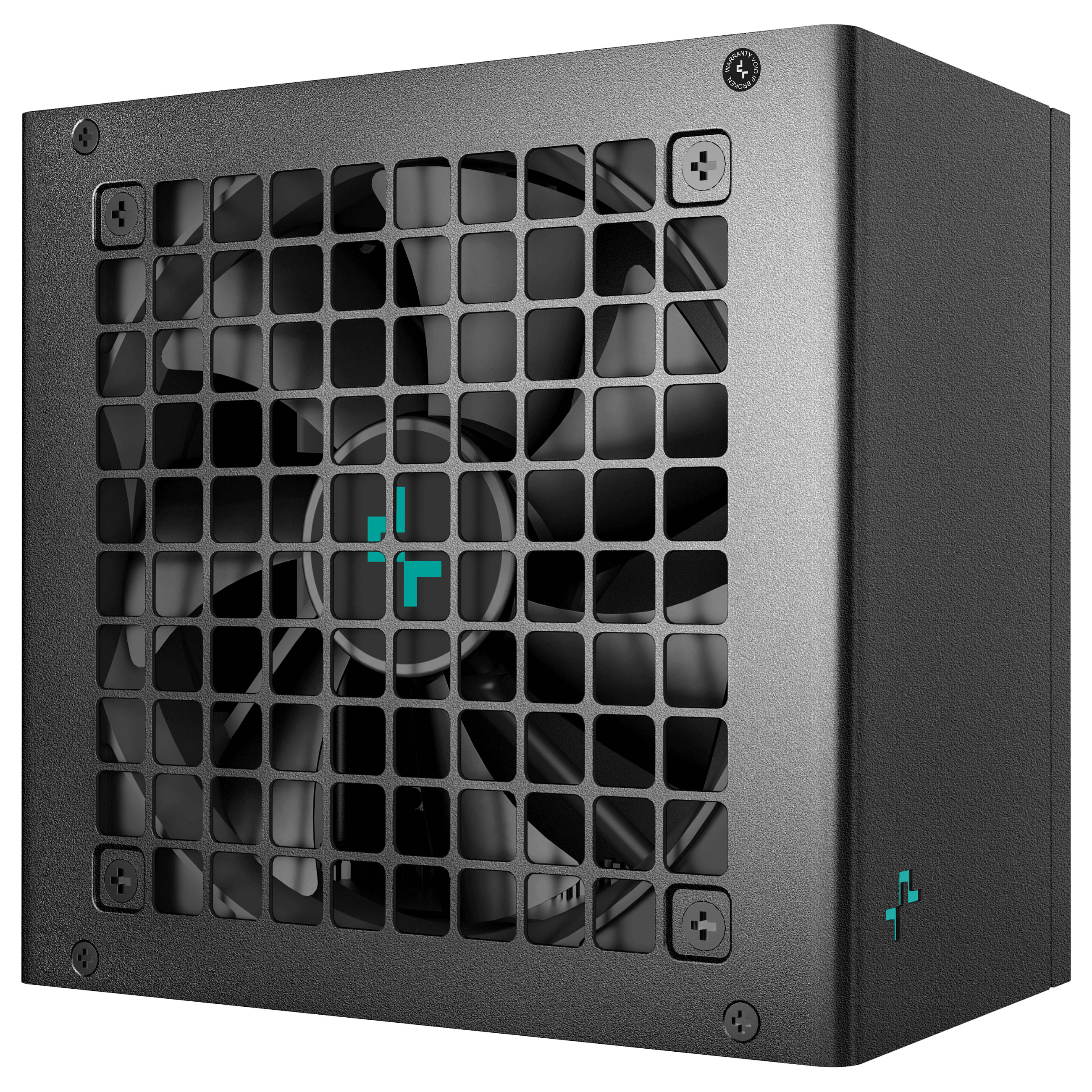

The PN750M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.

HIGH QUALITY BUILD
Due to the high quality of the parts utilized. the PN750M will operate at altitudes up to 5000 meters above sea level.

PEACE OF MIND
The PN750M comes standard with a slew of well-rounded safeguards. including OPP. OVP. SCP. OTP. OCP. UVP. NLO. and SIP.

EXCELLENT COVERAGE
The PN750M is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.

Power
Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10 - 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 750 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power Good signal delay range: 100 - 150 ms
Power protection features: No load operation. Over power. Over voltage. Overheating. Short circuit. Surge & inrush protection (SIP). Surge protection. Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 8
SATA power cable length: 450.570.690.810 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 930 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: ATX power connector (20+4 pin)
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Packaging content
Cables included: AC. CPU. PCIe. Peripheral (Molex). SATA
Feature: Cable tie(s) included
Certificates
Compliance certificates: CCC. CE. EAC. Federal Communications Commission (FCC). RCM. RoHS. WEEE
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
Technical details
Sustainability certificates: ErP. Triman
Logistics data
Warranty period: 10 year(s)
