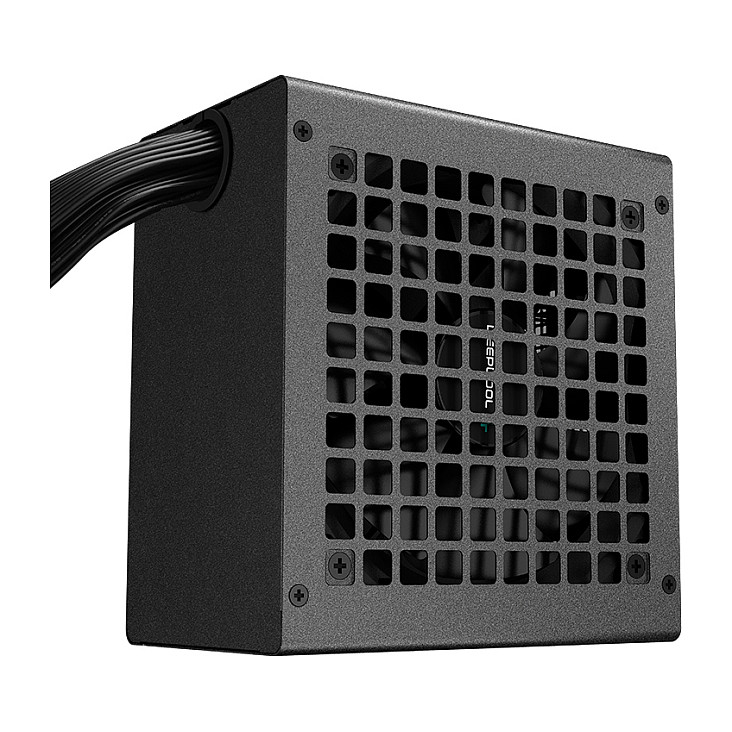

POWER SUPPLY (PSU)

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance. the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES
Stealthy and flexible. the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

RELIABLE PROTECTION
Shield against potential risk and damage with overpower. over voltage. and short circuit power protection.

Power
Total power: 600 W
AC input voltage: 220 - 240 V
AC input frequency: 50 Hz
Combined power (+3.3V): 100 W
Combined power (+12V): 576 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 15 A
Max output current (+12V): 48 A
Max output current (+5V): 15 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Hold time: 16 ms
Efficiency: 85%
Power protection features: Over power. Over voltage. Short circuit. Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 4
SATA power cable length: 450.600.750.900 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 30 °C
Packaging content
Cables included: AC
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
