Ultrafast 2.5G PoE+ Managed Switch with 10G Uplink for Futuristic Network

2.5G Ports for WiFi 7/6E/6
16× 2.5 Gbps Ports Unlock the Full Potential of WiFi 7/6E/6 APs

10G Lightning-Fast Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

250W PoE Budget
8× PoE+ Ports with Total 250 W Power Budget

Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network

Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE+ Ports
Featuring 8x PoE+ 2.5G ports. the switch is capable of future network expansion and deployment. providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission. it supports up to 250W total PoE power budget* and flexible installation to fit in various application scenarios.

Enterprise Switch with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency. so reliable and lightning-fast connections to server and other switches are easily built.

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices. including access points. switches and gateways. providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided. ideal for use in hospitality. education. retail. offices. and more.

Advanced L3 Features***
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network. providing a reliable and efficient solution for enterprises. campuses and ISPs.

Secure Networking
Security features include IP-MAC-Port-VID Binding. Port Security. Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available. making it easier than ever to prevent them. In addition. the Access Control Lists (ACL. L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address. IP address. TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication. which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported. including 802.1Q VLAN. Port Mirroring. STP/RSTP/MSTP. Link Aggregation Control Protocol. and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers. cutting out unnecessary traffic. while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address. MAC address. TCP port number. UDP port number. and more. With QoS (Quality of Service). voice and video services remain smooth. even when bandwidth is in short supply.

ISP Features
QinQ. L2PT PPPoE ID Insertion and IGMP authentication features are provided. developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack. MLD Snooping. IPv6 ACL. DHCPv6 Snooping. IPv6 Interface. Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Management features
Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity: 2
Console port: RJ-45/Micro-USB

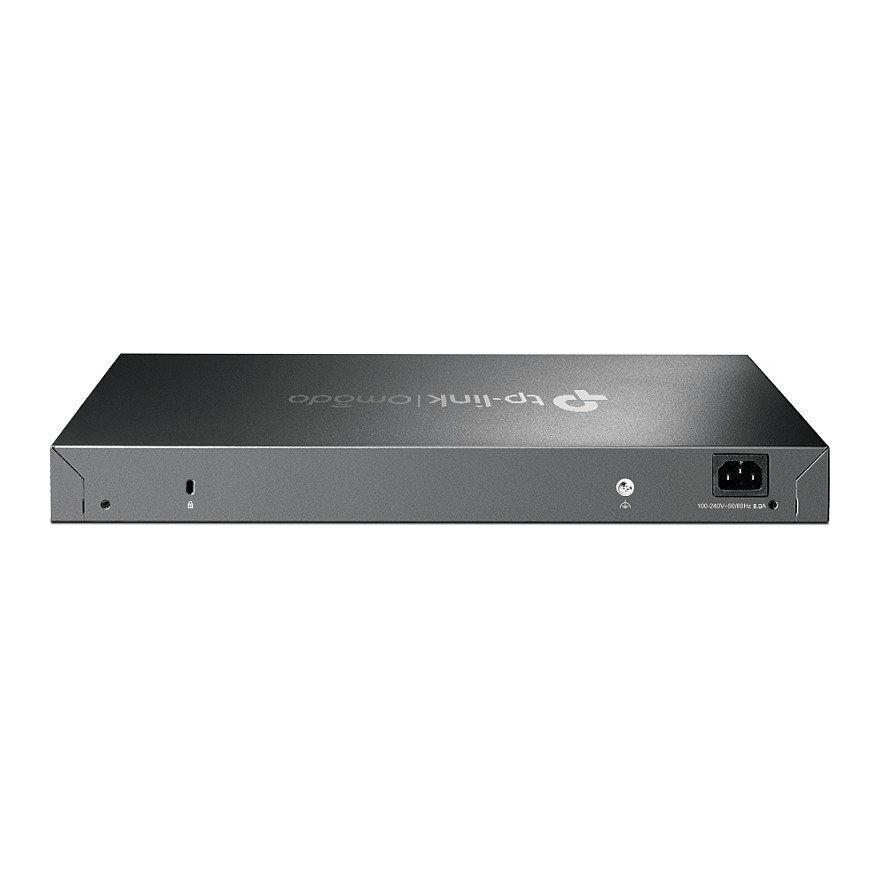

Power connector: AC-in jack
Network
Networking standards: IEEE 802.1D. IEEE 802.1s. IEEE 802.1w
Feature: 10G support
Feature: Port mirroring
Feature: IP routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Ethernet LAN data rates: 100.1000.2500 Mbit/s
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN. Port-based VLAN. Private VLAN. Protocol-based VLAN. Tagged VLAN. Voice VLAN
Data transmission
Switching capacity: 120 Gbit/s
Forwarding rate: 89.28 Mpps
MAC address table: 16000 entries
Feature: Static route
Number of static routes: 48
Number of IP interfaces: 32
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 12 MB
Security
DHCP features: DHCP client. DHCP relay. DHCP server. DHCP snooping. DHCPv6 client. DHCPv6 snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS. SSH. SSH-2. SSL/TLS
Feature: MAC address filtering
Feature: Static port security
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Feature: IP-MAC-Port binding
Authentication: MAC-based authentication. Port-based authentication
Feature: Password protection
Authentication type: AAA. TACACS+
Queue scheduling algorithms: SP. WRR+SP. Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Feature: Multicast Listener Discovery (MLD) snooping
Protocols
Management protocols: SNMP v1/v2c/v3. SNTP
Feature: GARP VLAN Registration Protocol (GVRP)
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
Feature: LED indicators
Number of fans: 2 fan(s)
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 299.4 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1021.64 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 180 mm
Height: 44 mm
Packaging content
Cables included: AC
Feature: Quick start guide
Packaging data
Package type: Box
Sustainability
Feature: Sustainability compliance
Certificates
Compliance certificates: Federal Communications Commission (FCC). RoHS
Certification: CE. FCC. RoHS
