ACCESS POINTS

The New Slimline Business WiFi 6

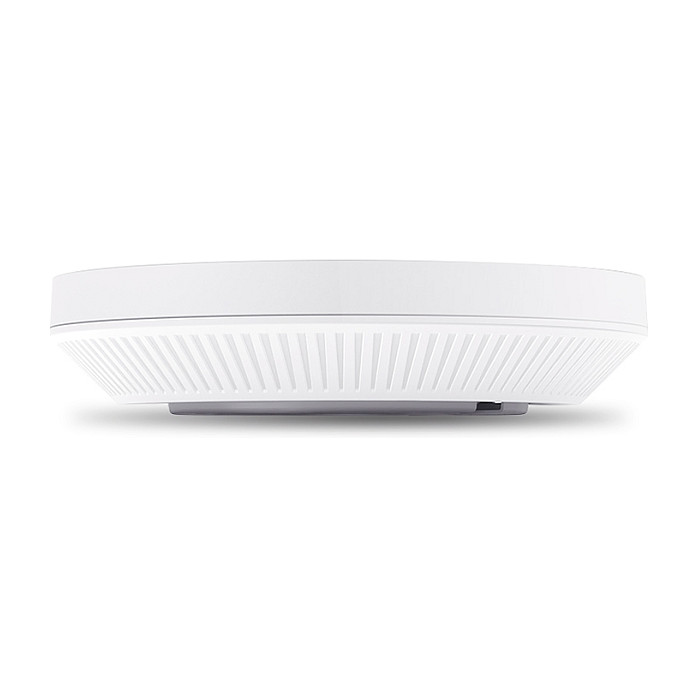

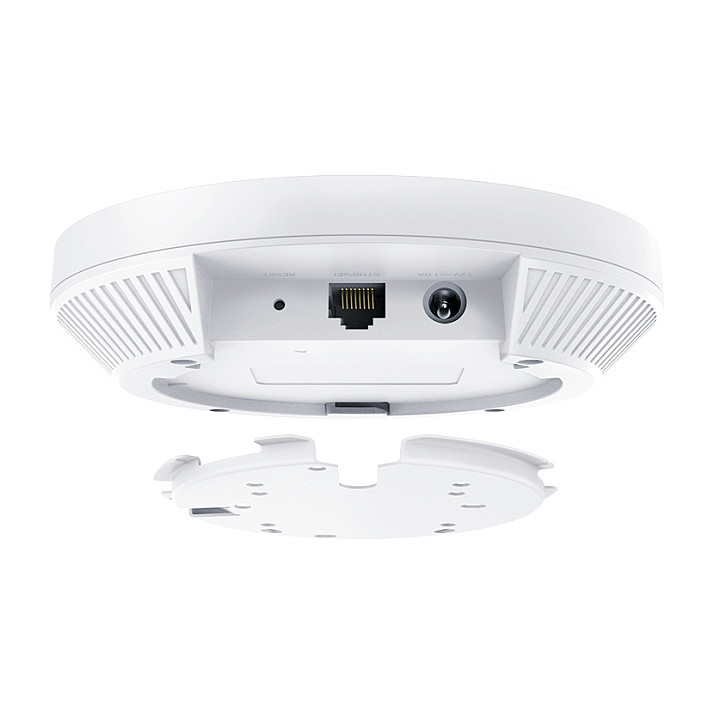

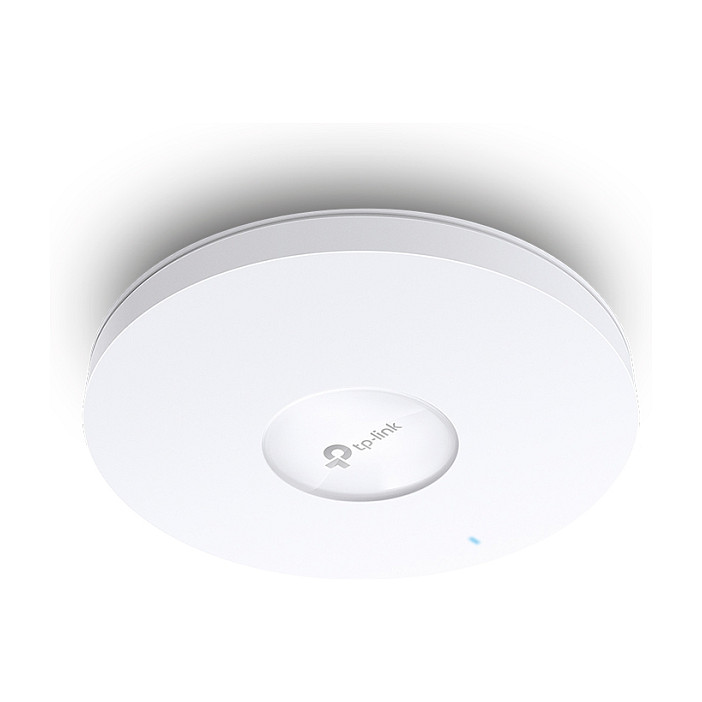

AX3000 Ceiling Mount WiFi 6 Access Point

AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡

Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference

Omada Mesh Technology
More flexible and convenient wireless deployment

Seamless Roaming
Uninterrupted streaming when moving between APs

Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility

PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices. including access points. switches. and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing. Less Wiring
With Mesh technology. Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office. hotel. classroom. or café.

Features
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2976 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 10.100.1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.1x. IEEE 802.3at
Cabling technology: 10/100/1000Base-T(X)
Number of users: 250 user(s)
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Fit AP mode features: Mesh networking
Feature: VLAN support
Feature: Rate limiting
Feature: Flow control support
Feature: Band steering
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Feature: BeamForming
Transmitting power (CE): <20 dBm(2.4 GHz. EIRP) <23 dBm(5 GHz. Band1 & Band2. EIRP) <30 dBm(5 GHz. Band3. EIRP)
Transmitting power (FCC): <25 dBm (2.4 GHz) <25 dBm (5 GHz)
Security
Security algorithms: SNMP. SNMPv2. SNMPv3. SSH. WPA-Enterprise. WPA-PSK. WPA2-Enterprise. WPA2-PSK. WPA3-Enterprise. WPA3-PSK
Feature: MAC address filtering
Feature: Access Control List (ACL)
Management features
Feature: Web-based management
Feature: Syslog
Feature: Firmware upgradeable
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
DC voltage range: 12 V
Design
Placement: Ceiling. Wall
Product colour: White
Feature: Reset button
Feature: LED indicators
Antenna
Antenna type: Internal
Certificates
Certification: CE. FCC. RoHS
Weight & dimensions
Width: 160 mm
Depth: 160 mm
Height: 33.6 mm
Packaging data
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
