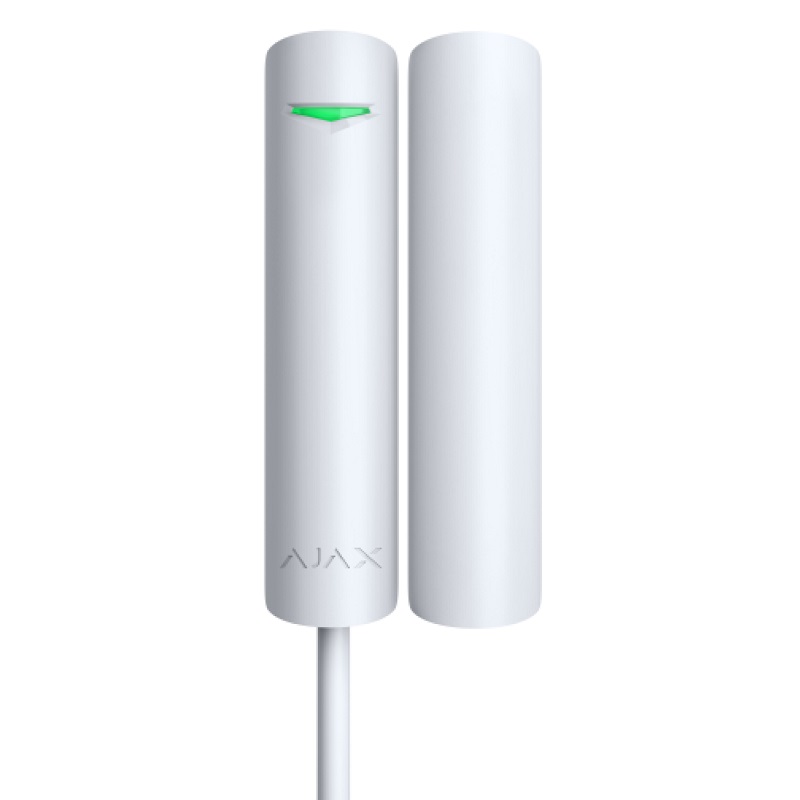

AJAX FIBRA DoorProtect G3 White
Product code: 17724520 // MPN: 61340.177.WH2
New entry
€77,76 (inc. VAT)
Available from 1 to 3 days
- ** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license
- DoorProtect G3 Fibra is designed to detect intrusion and burglary attempts, offering comprehensive coverage for doors, windows, skylights, and vaults. The detector is equipped with two reed switches as opening sensors and a magnetometer for protection against magnet spoofing. Two sizes of magnets provide more mounting options. The device also identifies shock and tilt with a built-in accelerometer, protecting the facility even when windows are in airing mode. All in line with the Ajax user experience, ensuring quick and easy installation of the device
- DoorProtect G3 Fibra features two durable reed switches with a minimum service life of 1,000,000 openings, guaranteeing decades of trouble-free operation. Housed in resilient plastic capsules, these switches remain intact even in cases of drops or transportation, ensuring the detector’s effective functionality irrespective of magnet placement
- The integrated high-end magnetometer records local magnetic field data during calibration, allowing the sensor to identify and monitor the installed magnet. Immediate alarms are triggered by any changes in the magnetic field, providing protection against magnet spoofing. The straightforward calibration process and adjustment of sensitivity levels in the app ensure precise interference detection and eliminate false alarms. Plastic spacers in the mounting kit reduce the impact of metal surfaces when the detector is installed, for example, on the vault door
- The built-in accelerometer responds swiftly to shocks, detecting potential burglary attempts such as door forcing and vault breaking. The shock sensor has three levels of sensitivity, which can be adjusted to match the secured facility specifics. The detector can also ignore a single impact to minimize the risk of false alarms triggered by external factors. Whether there are vibrations from neighboring constructions or heavy passing traffic, the installer can choose the most appropriate settings for accurate detection
- The built-in accelerometer is designed to protect open windows, seamlessly adapting to diverse facility requirements. Installers can select a normal tilt angle for doors or windows, ranging from 5 to 25 degrees. The system swiftly detects even the slightest deviations from the usual position and provides customizable tilt detection durations, ranging from 1 second to 1 minute. In case the tilt angle surpasses the specified threshold for an extended period, the system raises an alarm
Compatibility
- Compatible hub models : Hub Hybrid (2G) / Hub Hybrid (4G)
Communication
- Fibra communication technology : Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: Two-way communication / Advanced anti-sabotage / Instant notifications / Remote configuration via the app
- Bus connection: 4-core cable
- Encrypted communication
- Bus line length : up to 2,000 meters / When using twisted pair U/UTP cat.5
Detection
- Sensitive elements : 1 accelerometer / 1 magnetic masking sensor / 2 reed switches
- Input to connect an additional detector : Wired detector with the normally closed (NC) contact type
- Shock sensor sensitivity : 3 levels / Adjusted by a PRO or a user with admin rights in the Ajax app
- Option to ignore single impact : Adjusted by a PRO or a user with admin rights in the Ajax app
- Tilt sensor activation threshold : from 5° to 25° / Adjusted by a PRO or a user with admin rights in the Ajax app
- Spacers : 2 pcs / Are needed to install the detector or the magnet on a metal surface, as they help to reduce the distance between the detector and the magnet. You can use one or two spacers at once
- Chime : When the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered
Sabotage protection
- Tamper alarm : 2 tampers / Notifications on attempts to detach the detector from the surface or open the front lid
- Magnetic masking sensor : The device detects an attempt to mask the main magnet of DoorProtect G3 Fibra with a fraudulent magnet
- Protection against spoofing : device authentication
Power supply
- Fibra line power supply : 5−30 V⎓, up to 35 mW / The detector is powered by the hub
Enclosure
- Dimensions : 102 × 21 × 19.2 mm
- Weight : 62 g
- Operating temperature range : from −10°C to +40°C
- Operating humidity : up to 75%
| Certification: | Grade 3,CE |
| Communication: | 2Way |
| Connectivity: | Wired |
| Installation: | Door/Window |
| Range: | Up to 2000 meters |
| Shock Detector: | |
| Temperature Sensor: | |
| Tilt Detector: |
