AJAX FIBRA DoorProtect Plus (Requires License)

New entry

Add to wishlist

Code: 17730620

Available from 1 to 3 days

** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license
MotionProtect Plus Fibra is a wired motion detector with an additional K-band microwave sensor. It can recognize movement at a distance of up to 12 meters. Together with the IR sensor, it applies a radio-frequency scan that filters out thermal interference. Does not respond to pets up to 50 centimeters tall and weighing up to 20 kilograms. For indoor installation
The detector is compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Connection to other hubs, radio signal range extenders, ocBridge Plus, and uartBridge is not provided
MotionProtect Plus Fibra works as part of the Ajax security system, exchanging data with the hub using the secure Fibra wired protocol. The wired connection range is up to 2,000 meters when using a U/UTP cat.5 twisted pair
MotionProtect Plus Fibra is a member of the product line of wired Fibra devices. The installation, sale, and administration of these devices are performed only by accredited Ajax partners

Compatibility

Communication

Fibra communication technology : Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: Two-way communication / Advanced anti-sabotage / Instant notifications / Remote configuration via the app
Bus connection: 4-core cable
Encrypted communication
Bus line length : up to 2,000 meters / When using twisted pair U/UTP cat.5

Motion detection

Sensing element : 1 × PIR sensor,1 × K-band microwave sensor
Motion detection distance : up to 12 meters When installed at 2.4 meters height

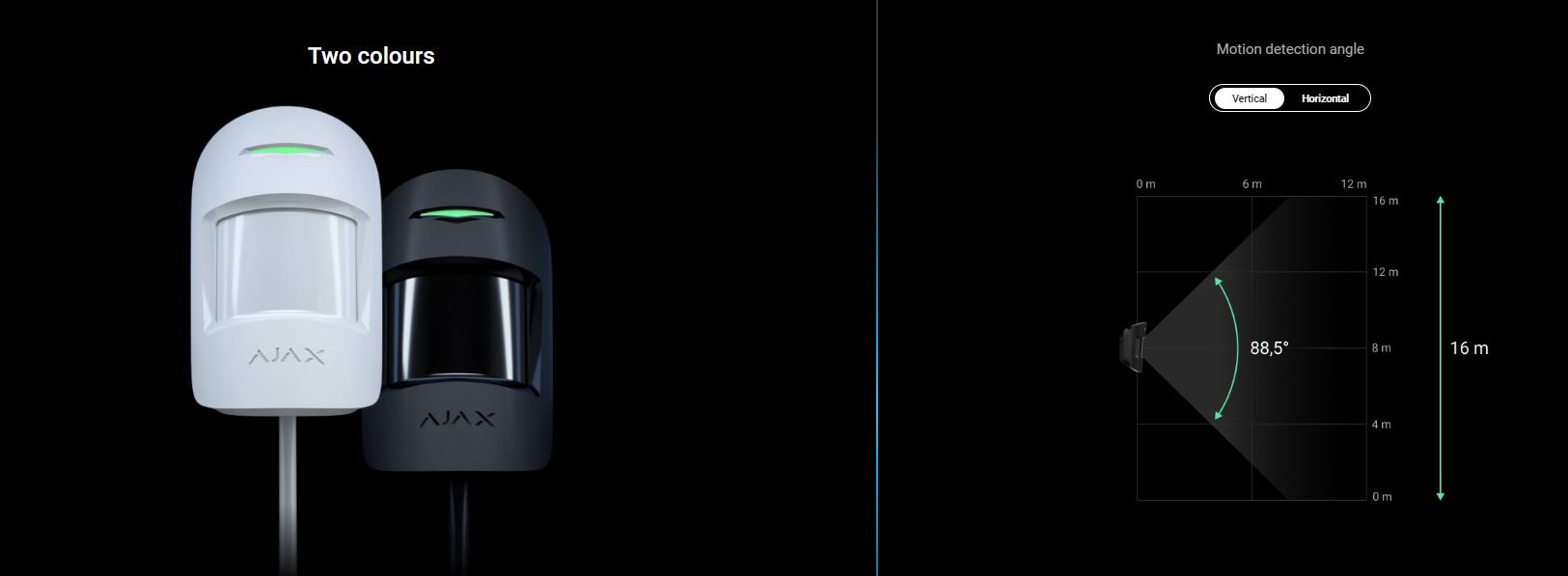

Motion detection angles : horizontal — 88.5° / vertical — 80°
Motion detection speed : from 0.3 to 2.0 m/s / The direction of the detector lens should be perpendicular to the intended path of entry into the facility
Sensitivity : 3 levels / Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app
Pet immunity : up to 20 kg / up to 50 cm height
False alarm prevention : SmartDetect
Temperature compensation : Effective motion detection within −10°C to +40°C range
Recommendations : It is recommended to install the detector on 2.4 meter height
Device is designed for indoor use only

Anti-sabotage protection

Tampering alarm : Alerts of attempts to detach the detector from the surface or remove the mounting panel
Protection against forgery : Device authentication

Power supply
