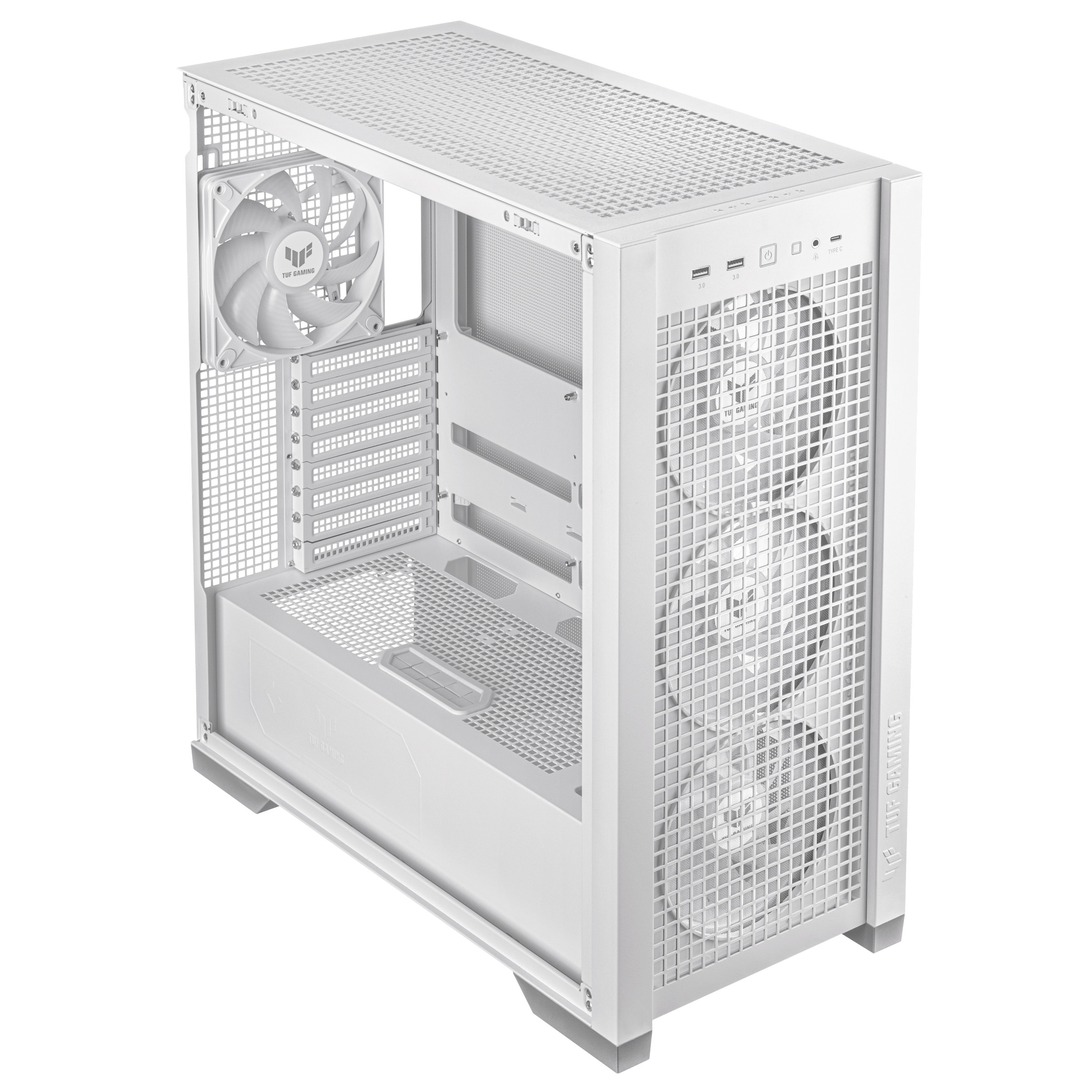

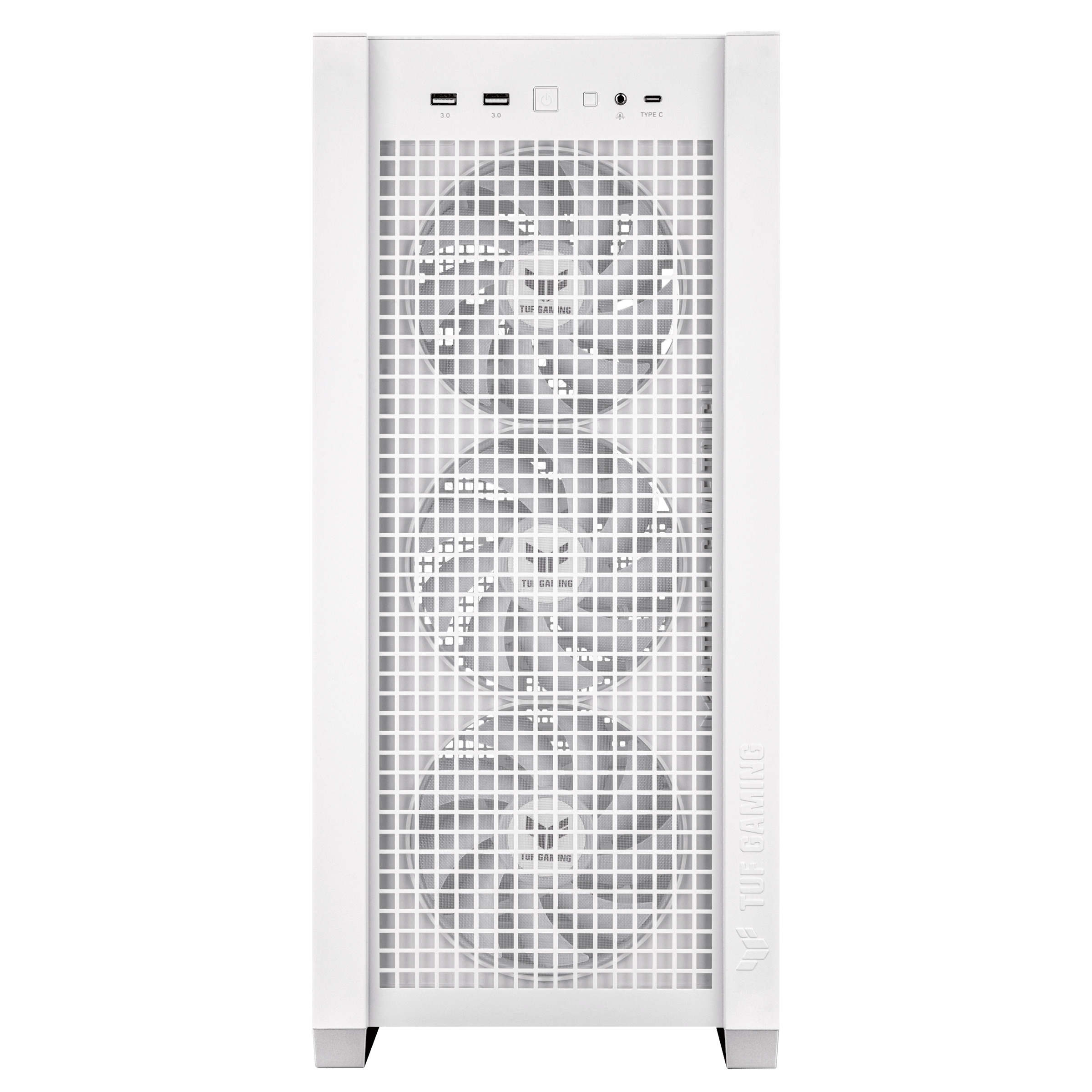

PC CASE

Dimensions & Build

• Case Type: Mid-Tower

• Dimensions (H x W x D): 497 x 235 x 491 mm

• Material: Steel frame, tempered glass, mesh front

• Weight: ~8.9 kg

• Color: White

Motherboard Support

• Form Factors: ATX, Micro-ATX, Mini-ITX

Drive Bays

• 3.5" HDD: 2 (tool-free)

• 2.5" SSD: 4

Cooling & Ventilation

• Pre-Installed Fans: 3x 120mm ARGB front, 1x 120mm ARGB rear

• Max Fan Support:

  • Front: 3x 120mm / 2x 140mm

  • Top: 3x 120mm / 2x 140mm

  • Rear: 1x 120mm

  • Bottom: 2x 120mm

• Radiator Support:

  • Front/Top: Up to 360mm

  • Rear: 120mm

Expansion Slots

• PCIe Slots: 7+2 (supports vertical GPU with riser)

Power Supply Support

• PSU Type: ATX (up to 220mm)

I/O Panel

• Ports: 1x USB 3.2 Gen 2 Type-C, 2x USB 3.0 Type-A, 3.5mm audio

• Controls: ARGB/fan button, power/reset

Clearances

• Max GPU Length: 400mm

• Max CPU Cooler Height: 180mm

Dust Filters

• Removable mesh (front, top, bottom)

Additional Features

• ARGB Lighting: Aura Sync compatible

• Cable Management: Velcro straps, routing channels

• Tool-Free Design: Easy-access panels

• Vertical GPU Mount: Optional (riser not included)
