This is a 4-in-1-out ultra-high-definition KVM extender switch, comprises a transmitting end and a receiving end. It supports 4 HDMI signal inputs and 1 HDMI signal output, the 4K@60Hz HDMI signal can be extended to 70 meters through CAT6 or above network cable, the highest resolution is 4K@60Hz and is backward compatible, supports KVM control. A variety of control methods (IR remote control, button and RS-232) can easily switch the content of the 4 HDMI™ signal sources to the display. The product is widely used in security monitoring, education and training, exhibitions and broadcasting, command centers, etc.

4096x2160@60Hz
HDR
70M
Visually Lossless
Ultra Low Latency
4x1 HDMI KVM Switch
Auto Down-scaling

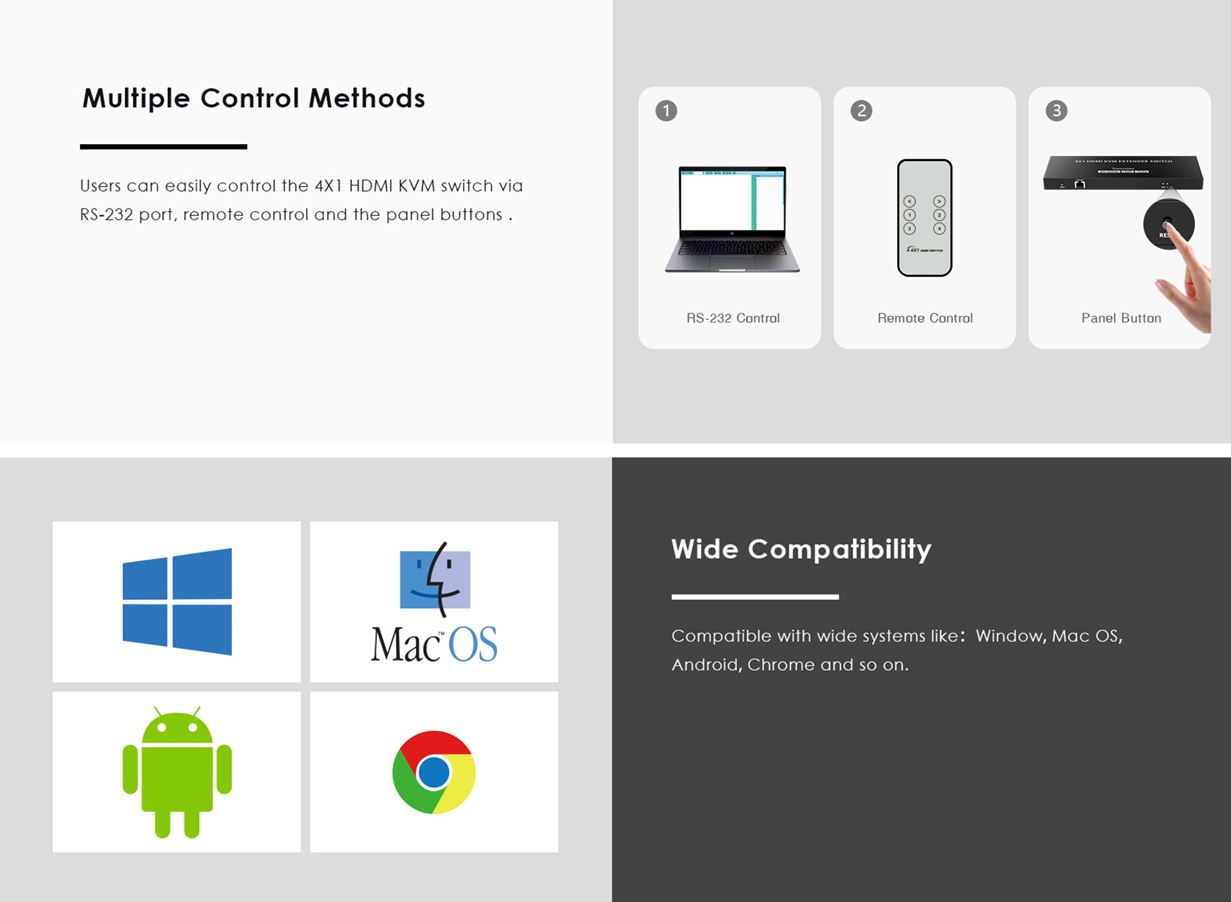

Multiple Control Methods
Plug and Play
24/7

Voltage/Current DC 5V/1A
Power consumption TX<4W ，RX<4W
HDMI compliance HDMI 2.0 (HDR, YUV4:4:4)
HDCP compliance HDCP 2.2, and HDCP1.4
HDMI resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3440x1440, 2560x1600, 2560x1440, 1920x1200
Supports audio formats LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/Dolby TrueHD 5.1/Dolby Digital/Dolby Atmos
Transmission speed 18Gbps
Video bandwidth 600MHz

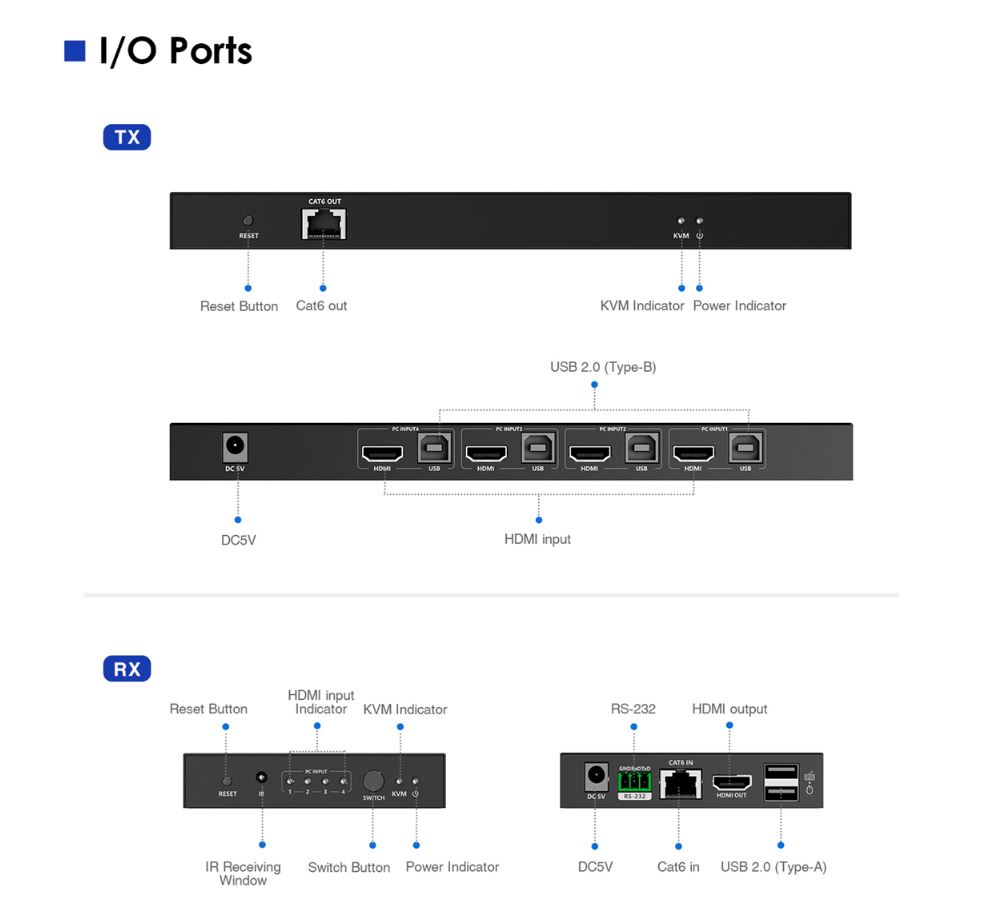

HDMI port HDMI input x4
RJ45 port RJ45 port x1
RS-232 3 pin（GND/RxD/TxD）, baud rate 9600
CAT6/6A/7 Transmission Distance ≤70m
≤40m: 4096x2160@24/25/30Hz,
3440x1440, 2560x1600, 2560x1440
Electrostatic protection of the whole machine Electrostatic protection
1a Contact discharge level 2
1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 lightning protection, surge protection
Working temperature -20~60℃
Storage temperature -30~70℃
Humidity (no condensation) 0～90%RH
Dimension TX：250(L) x 80(W) x 25(H)mm
RX：106(L) x103(W) x25(H)mm
Material Iron
Color Black
Weight TX: 542g ，RX: 298g
