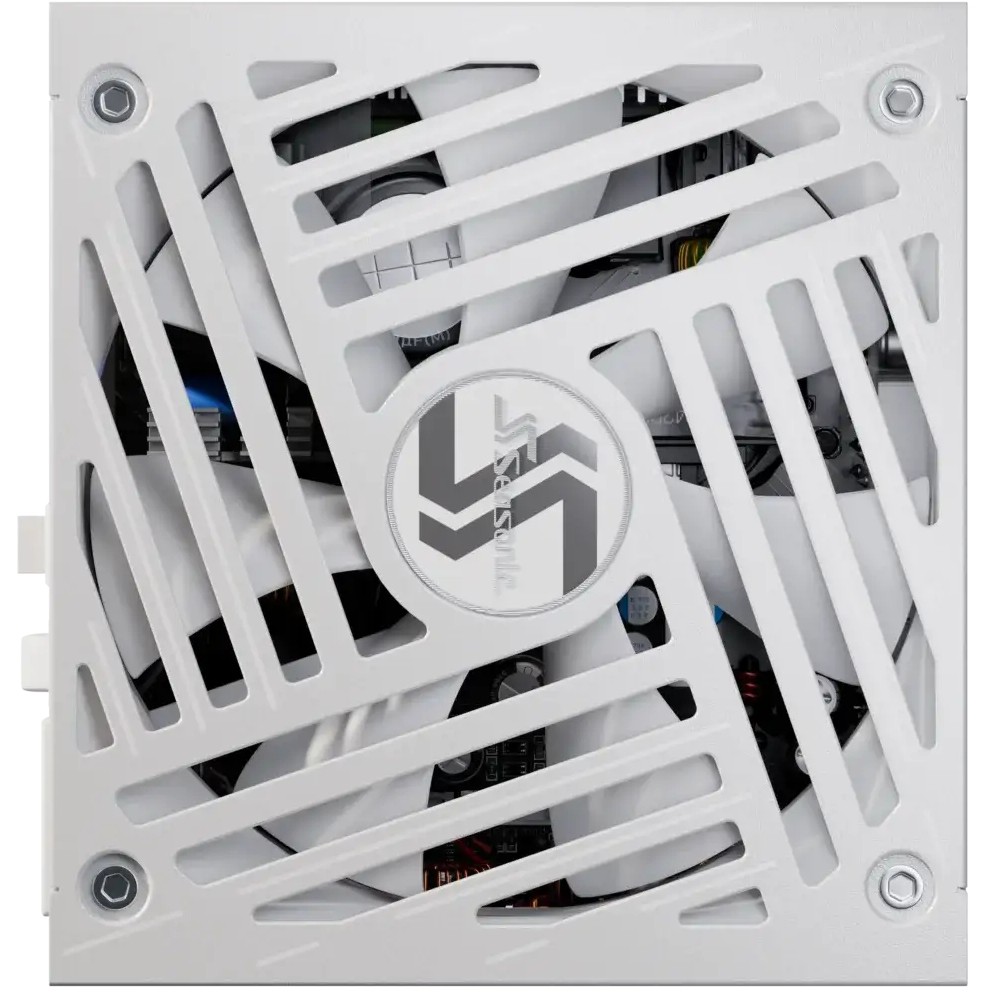

POWER SUPPLY (PSU)

FOCUS GX ATX 3.0

Following the well-established legacy of the Seasonic FOCUS Series. the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth. these units will be the perfect allies to power the newest high power graphics cards and processors on the market.

Digital Hybrid Fan Control
The industry’s first. Seasonic patented. advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode. Silent Mode. and Cooling Mode.

Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode

Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless. quieter rotations and its robust construction. this reliable fan technology also greatly increases the lifespan of the fan.

When the fan shaft rotates. high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases. so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth. effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.


Power
Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 11 - 5.5 A
Maximum input current (@110V): 11 A
Maximum input current (@220V): 5.5 A
Combined power (+3.3V): 100 W
Combined power (+12V): 840 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 2
SATA power cable length: 550 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 690 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (12+4 pin): 1
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: White
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Certificates
Compliance certificates: CB. CE. EAC. REACH. RoHS. WEEE. cTUVus
Safety regulation & standards
Safety: cTUVus. TUV. CB. CCC. BSMI. EAC. CE
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
Technical details
Sustainability certificates: ENERGY STAR
Logistics data
Warranty period: 10 year(s)
