COMPONENTS FOR SERVERS

Processor
Processor manufacturer: AMD
Processor socket: Socket SP5
Compatible processor series: AMD EPYC 9004
Supported processor sockets: Socket SP5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 8
Memory voltage: 1.1 V
Supported memory clock speed (max): 4800 MHz
Storage controllers
Supported storage drive interfaces: M.2
Graphics
On-board graphics card model: Aspeed AST2600
On-board graphics card memory: 512 MB
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 10
Feature: Audio connector
Peripheral (Molex) power connectors (4-pin): 1
Number of COM connectors: 1

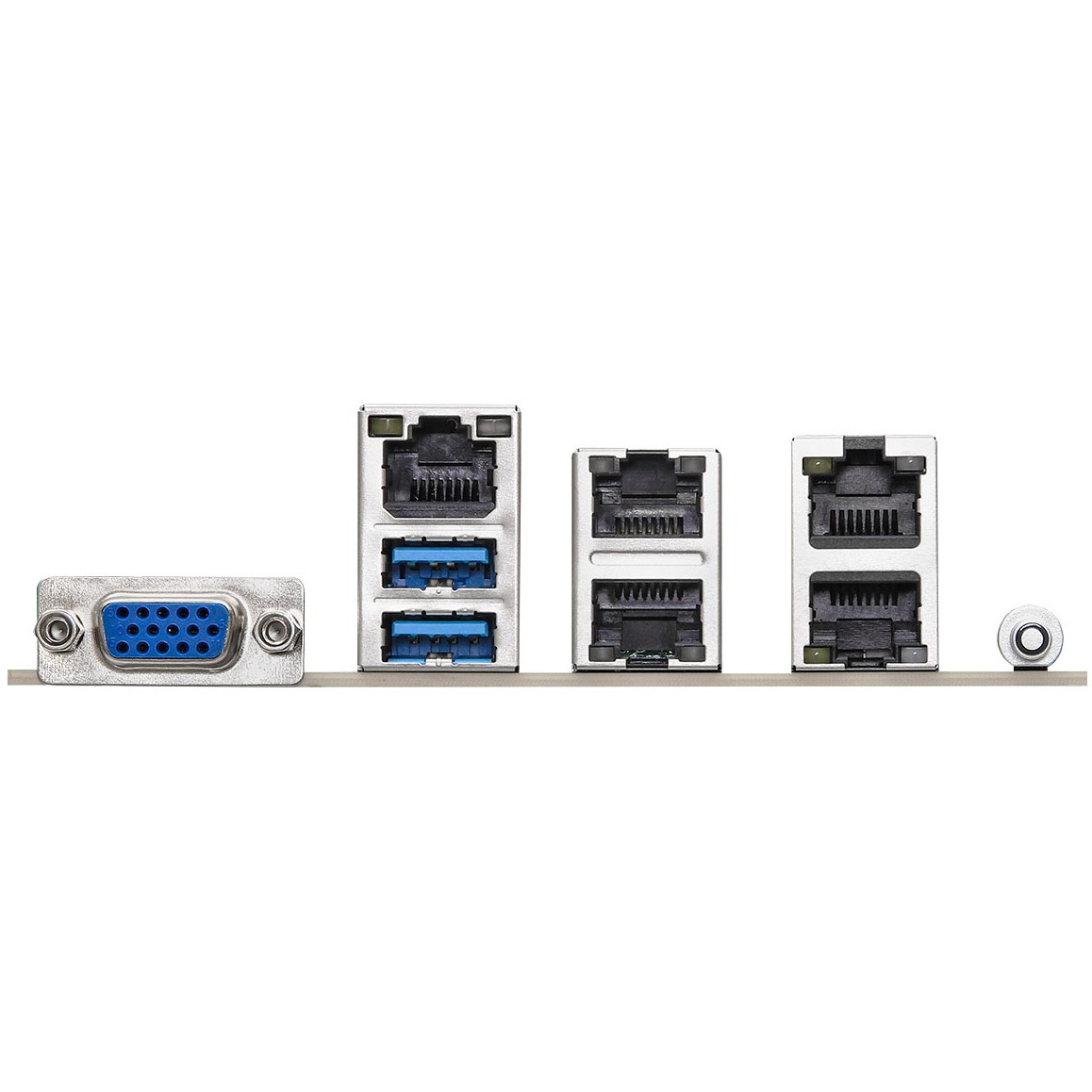

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Intel X710-AT2
Features
PC health monitoring: CPU. Fan
Component for: Server
Motherboard form factor: CEB
Motherboard chipset family: AMD
Expansion slots
PCI Express x8 (Gen 5.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 4
Number of M.2 (M) slots: 2
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%
Weight & dimensions
Width: 304.8 mm
Depth: 266.7 mm
