PC CASE

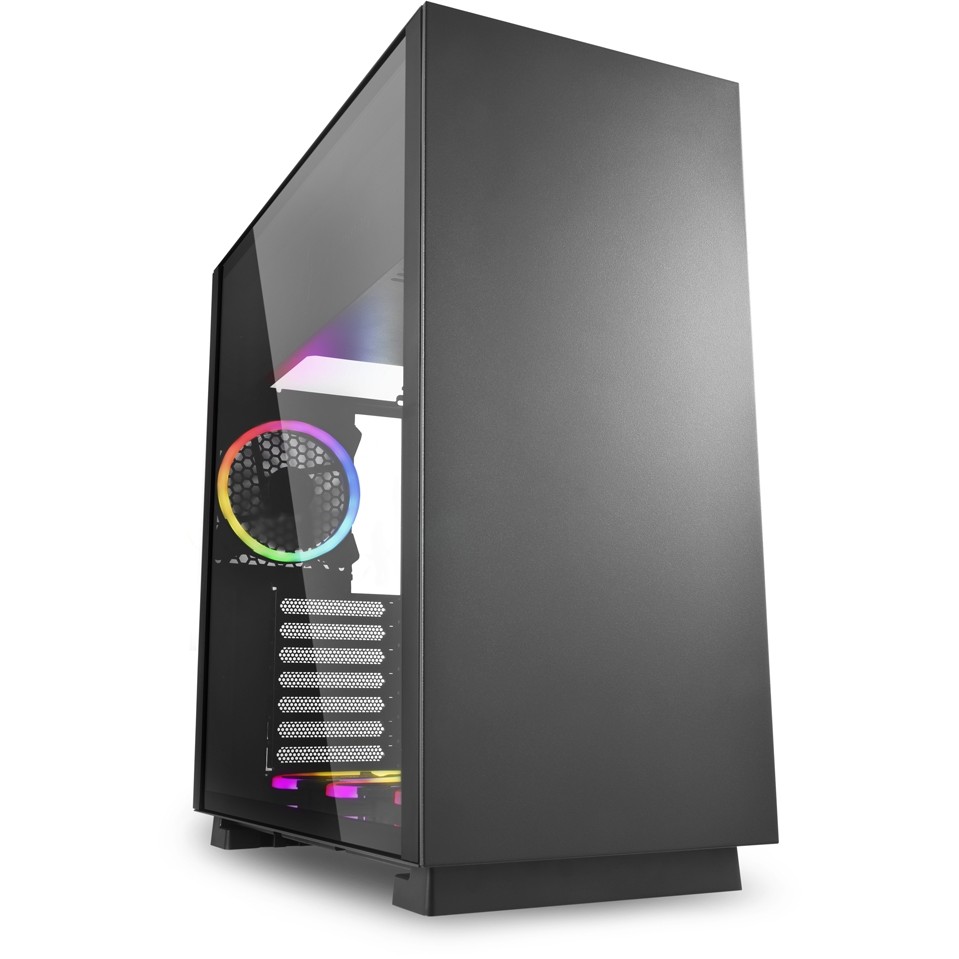

The PURE STEEL is a spacious ATX midi tower with a body completely made of steel. Its generous showroom. viewed through the tempered glass side panel. is ideally suited for a tabletop presentation of the high-end hardware inside. The minimalist design of the casing serves as a blank canvas for creative modding ideas.

Clearing the Stage for High-end Hardware. The front panel has a completely minimalist design. so nothing distracts from the clearly displayed hardware. The tempered glass side panel thus becomes the actual front of the case. allowing the case interior to be the stage for presenting the installed hardware to the admiring audience.

Designed for Modding. The minimalist design. in black or white. gives free reign to a multitude of modding ideas. The steel case provides an optimal surface for painting and affixing.

Extra Holder for Graphic Cards. To prevent any sagging of heavier high-end graphics cards. a graphics card holder with a rubberized surface is already installed inside the PURE STEEL.

Generous Interior. In addition to mainboard form factors up to E-ATX. the PURE STEEL has room for radiators up to 360 mm or for up to six fans. The length of the graphics card can be 42 cm. The height of the CPU cooler can be 16 cm. and the power supply can have a length of up to 29.5 cm.

Three Case Versions. The case is available in a black or white version. each with a preinstalled 120 mm fan at the back and another 120 mm fan on the bottom panel. In addition. an RGB version is available with a black chassis and four preinstalled 120 mm addressable RGB fans: three on the underside of the case and one at the back.

Full Control of Illumination. The RGB version of the PURE STEEL is supplied with an 8-Port Addressable RGB Controller for digitally addressable RGB LEDs. The controller can be used either with compatible mainboards (which have 3-pin addressable RGB headers) or completely manually. With the manual control. up to 14 lighting modes are available. which can be selected using the reset button on top of the case.

Design
Material: Steel. Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX. EATX. micro ATX. Mini-ITX. SSI CEB. SSI EEB
Number of 3.5" bays: 3
Number of 2.5" bays: 5
Number of expansion slots: 7
Feature: Side window
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: On/off button
Maximum CPU cooler height: 16 cm
Maximum graphics card length: 42 cm
Maximum PSU length: 29.5 cm
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Number of side fans supported (max): 2
Side fans diameters supported: 120 mm
Rear fans installed: 1x 120 mm
Bottom fans installed: 1x 120 mm
Number of bottom fans supported (max): 3
Bottom fans diameters supported: 120 mm
Feature: Liquid cooling capability
Storage
Supported HDD sizes: 2.5.3.5"
Packaging content
Feature: Manual
Weight & dimensions
Width: 210 mm
Depth: 474 mm
Height: 475 mm
Weight: 8.66 kg
Logistics data
Harmonized System (HS) code: 84733080
