Future-oriented standards and high-end quality for your network.

- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.
- Transparent red colored plug with metal shielding for easy identification of Category 6 (250 MHz)
- Conductor: Copper (Cu)
- PoE+ ready

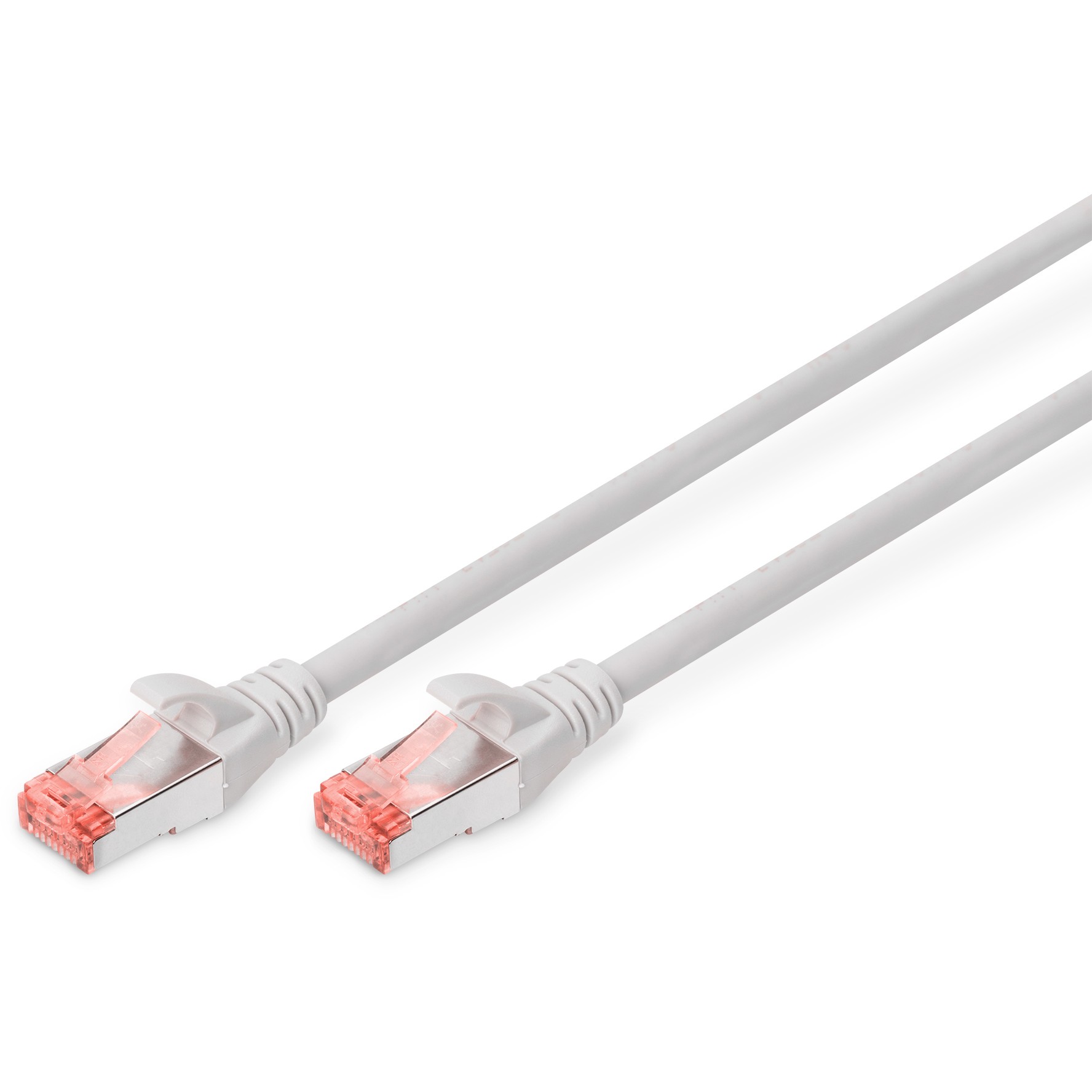

The DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6. because of the transparent red colored connector.

Features
Product colour: Grey
Cable length: 0.25 m
Cable standard: Cat6
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Copper
Jacket material: Low smoke zero halogen (LSZH)
Conductor type: Stranded
Conductor material: Copper
AWG wire size: 27/7
Frequency: 250 MHz
Country of origin: China
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Certificates
Certification: IEC 60332-1IEC 61034
Packaging data
Package width: 115 mm
Package depth: 16 mm
Package weight: 23.2 g
Package volume: 386.4 cm³
Package type: Polybag
Other features
Input impedance: 230 Ω
Logistics data
Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444210
