Future-oriented standards and high-end quality for your network.

- 10 GBit Ethernet
- 1500 MHz transmission frequency
- Permanent link certified
- PoE. PoE+ . Power over Ethernet support
- BauPVO category Dca-s1a d1 a1

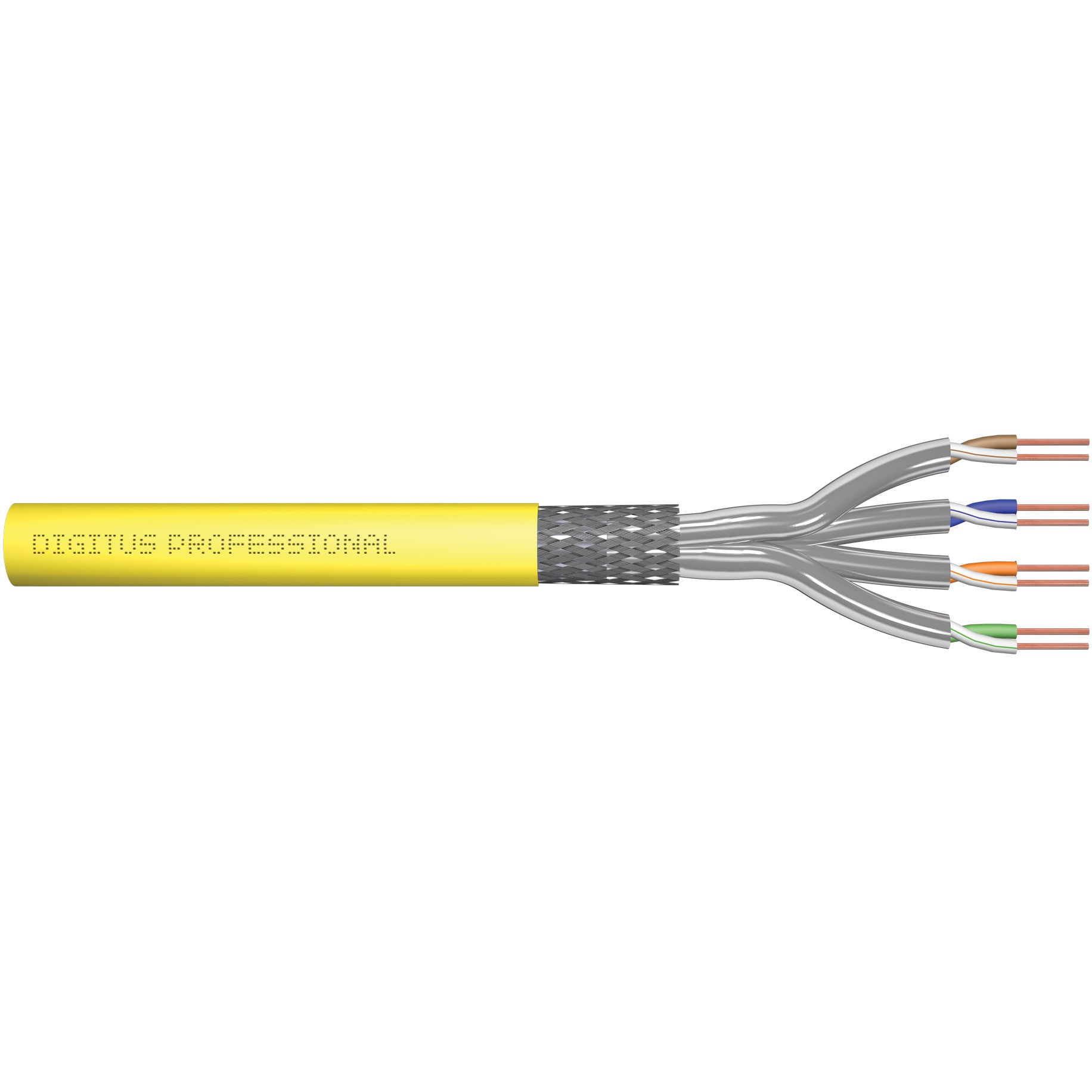

The Digitus Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801. DIN EN 50288-4-1. DIN EN 50173. IEC 61156-7. EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid. which ensures excellent shielding and electrical values.

Features
Product colour: Yellow
Cable length: 500 m
Cable standard: Cat7a
Cable shielding: S/FTP (S-STP)
Jacket material: Low smoke zero halogen (LSZH)
Conductor type: Solid
Networking standards: IEEE 802.3. IEEE 802.5
AWG wire size: 22/1
Country of origin: China
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -20 - 75 °C
Certificates
Certification: CPR class Dca
Weight & dimensions
Weight: 27.2 kg
Packaging data
Package width: 530 mm
Package depth: 530 mm
Package weight: 33.5 kg
Package volume: 122192 cm³
Logistics data
Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444920
