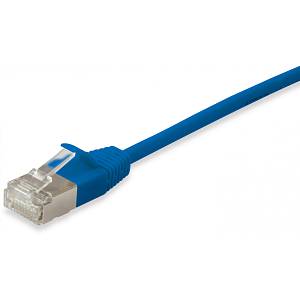

The equip® Cat.6A F/FTP Slim Patch Cable is a small cable with big performance. With a cable diameter of almost half a standard Cat.6A cable. It's easier to route and saves valuable space in high density environments. such as data centers and telecommunications rooms. With Cat.6A Slim Cable. you can fit more cables in the same space. saving you the time and cost of expanding or replacing cable pathways.

Features
Product colour: Blue
Cable length: 2 m
Cable standard: Cat6a
Cable shielding: F/FTP (FFTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Feature: Connector shielding
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Flat
Conductor type: Stranded
Conductor material: Copper
Cabling technology: 10GBase-T
Ethernet interface type: 10 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet
Networking standards: IEEE 802.3. IEEE 802.5
AWG wire size: 32/7
Data transfer rate: 10000 Mbit/s
Frequency: 500 MHz
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Feature: Molded cable boot
Feature: Plug and Play
Country of origin: China
Sustainability
Doesn't contain: Halogen
Certificates
Compliance certificates: CE. REACH. RoHS
Weight & dimensions
Width: 8.34 mm
Depth: 11.7 mm
Height: 2000 mm
Outer diameter: 3.8 mm
Weight: 70 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 160 mm
Package depth: 20 mm
Package height: 200 mm
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
Master (outer) case width: 380 mm
Master (outer) case length: 290 mm
Master (outer) case gross weight: 8.2 kg
Master (outer) case height: 350 mm
Products per master (outer) case: 240 pc(s)
Technical details
Feature: Sustainability compliance
