Splits one HDMI signal on two displays - supports UHD 4K / 60 Hz with HDR

- Resolutions of up to 4K / 60 Hz (4:4:4)
- Full 18 Gbps - for a crystal clear display of UHD contents
- Supports HDR & HDCP 2.2
- Power supply via Micro USB (charging adapter. TV. notebook)
- Cascading of up to 8 splitters in a row
- Ultra slim design
- Compatible with the latest Ultra High Definition (UHD) standards
- Protection from Electrostatic Discharges (ESD)
- Plug and Play

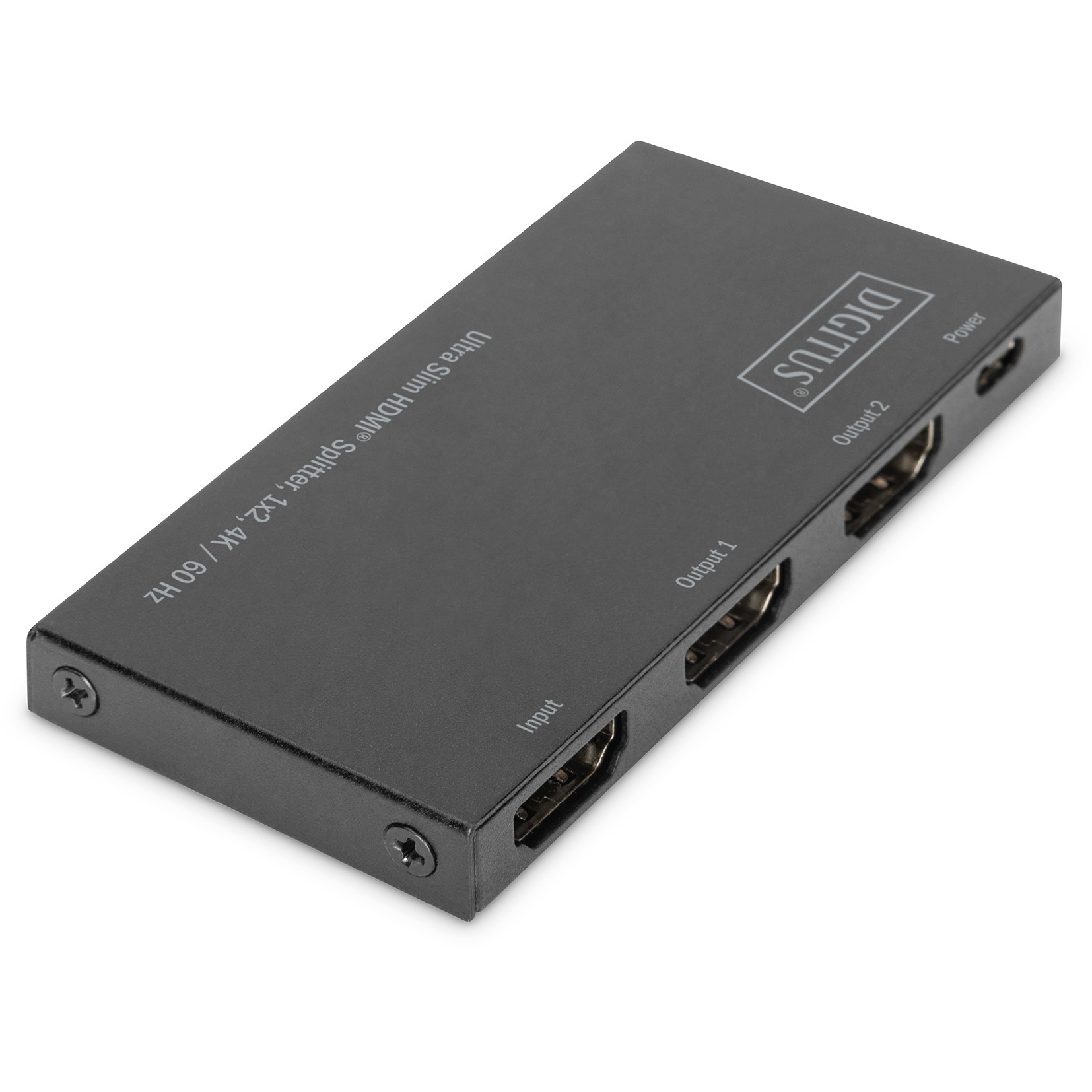

The DIGITUS® high-performance HDMI Splitter splits your HDMI device’s audio and video signals on two screens. TVs or projectors with a resolution of UHD 4K / 60 Hz. No more tedious reconnecting your cables. Additionally. HDR. HDCP 2.2 and 3D are supported - also a total width of 18 Gbps for fluent playback in excellent quality. The HDMI® splitter can be supplied via an existing USB port located on the TV device or. alternatively. via a USB charging adapter using electricity. You can cascade several splitters up to 8 levels.

Ports & interfaces
Video port type: HDMI
Video out: HDMI
HDMI version: 1.4
Video ports quantity: 2
Features
Product colour: Black
Housing material: Metal
Maximum resolution: 4096 x 2160 pixels
HD type: 4K Ultra HD
Feature: 3D
Colour depth: 36 bit
Maximum refresh rate: 60 Hz
Feature: HDCP
Feature: Plug and Play
Feature: LED indicators
Certification: CE
Power
AC input voltage: 5 V
Input current: 0.4 A
Power consumption (typical): 2 W
Feature: USB powered
Weight & dimensions
Width: 83 mm
Depth: 40 mm
Height: 9 mm
Weight: 60 g
Packaging data
Package width: 150 mm
Package depth: 110 mm
Package height: 25 mm
Package weight: 300 g
Package volume: 412.5 cm³
Packaging content
Feature: Manual
Cables included: Micro-USB
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 10 - 85%
Technical details
Connector 1: HDMI
Logistics data
Harmonized System (HS) code: 85176990
UK Trade Tariff code: 85437090
Master (outer) case width: 520 mm
Master (outer) case length: 320 mm
Master (outer) case height: 175 mm
Master (outer) case gross weight: 6 kg
Master (outer) case volume: 29120 cm³
Products per master (outer) case: 20 pc(s)
Country of origin: China
