AV CABLES

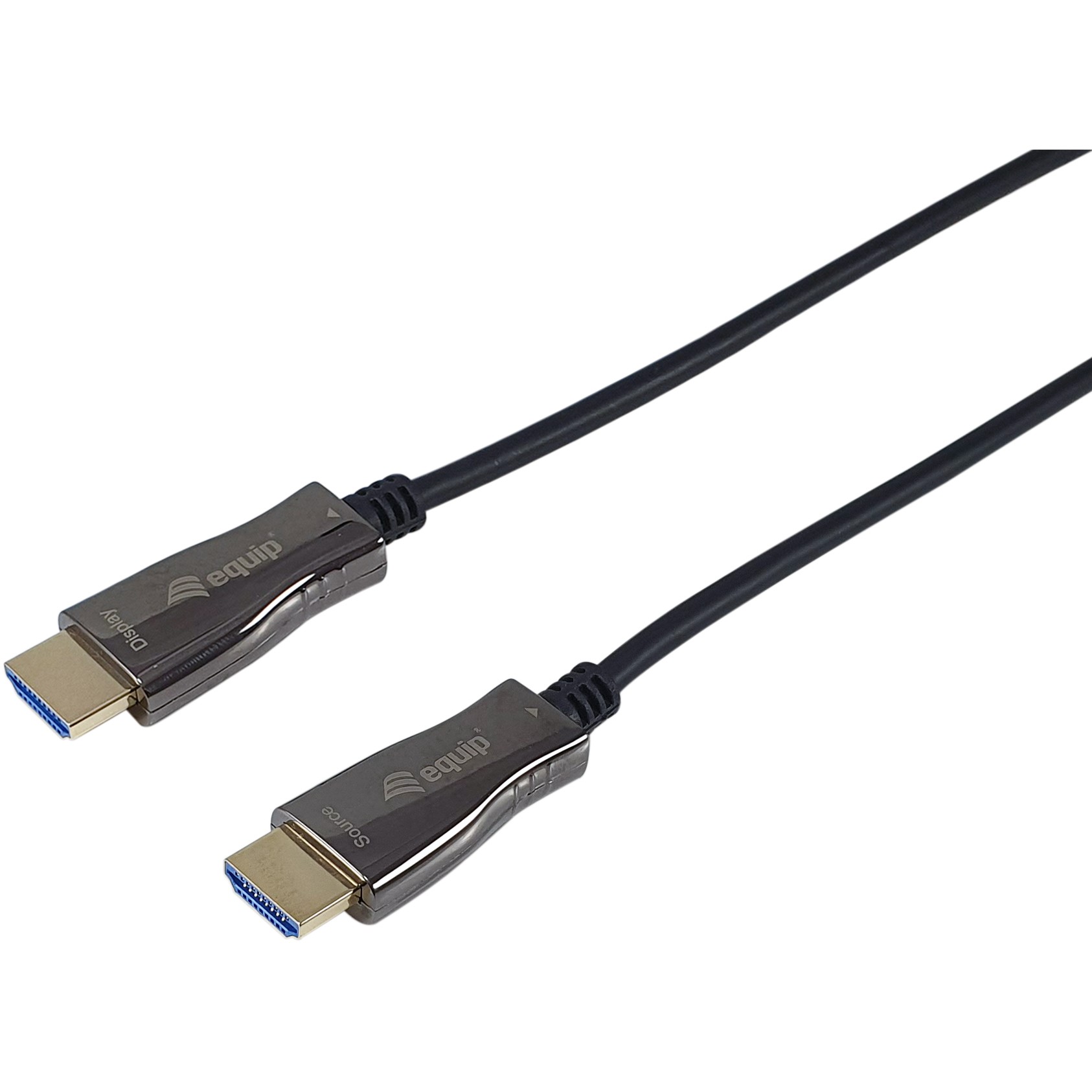

The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres. while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply

Features
Cable length: 100 m
Connector 1: HDMI Type A (Standard)
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Product colour: Black
HDMI version: 2.0
Feature: 3D
Supported graphics resolutions: 1920 x 1200 (WUXGA). 2560 x 1440. 3840 x 2160
Feature: HDMI Ethernet channel
Feature: HDCP
HDCP version: 2.2
Bandwidth: 18000 MB/s
Feature: High Dynamic Range (HDR) supported
Maximum refresh rate: 240 Hz
Connector contacts plating: Gold
Cable material: Copper
Cable jacket material: Polyvinyl chloride (PVC)
Certificates
Compliance certificates: CE. RoHS
Weight & dimensions
Weight: 2.95 kg
Packaging data
Package width: 270 mm
Package depth: 90 mm
Package height: 270 mm
Package type: Box
Quantity per pack: 1 pc(s)
Logistics data
Country of origin: China
Harmonized System (HS) code: 8544421900
Master (outer) case width: 370 mm
Master (outer) case length: 330 mm
Master (outer) case height: 480 mm
Master (outer) case gross weight: 15.8 kg
Products per master (outer) case: 5 pc(s)
