POWER SUPPLY (PSU)

Exceptional quiet. superior features

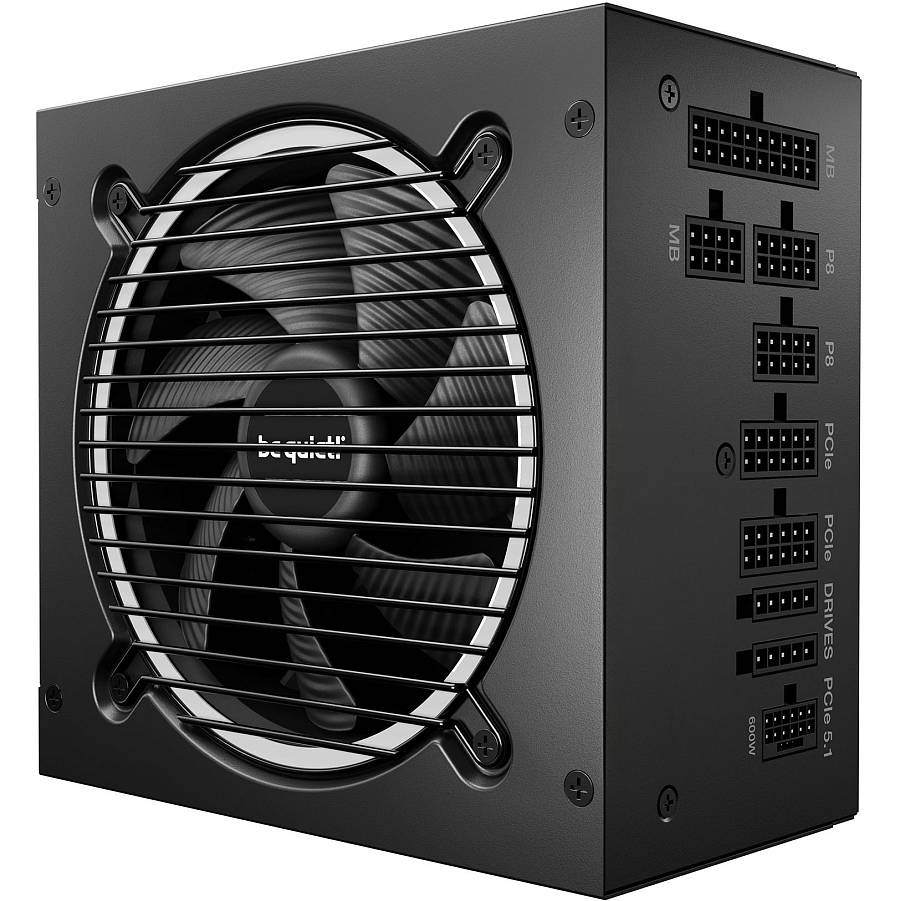

Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery. this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.

Power
Total power: 750 W
Peak power: 820 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 750 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 28.62 ms
Efficiency: 92.6%
Power protection features: Over current. Over power. Over voltage. Overheating. Short circuit. Surge & inrush protection (SIP). Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 500.650.800.950 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 800.950 mm
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12-pin): 1
CPU P4 connector (4-pin): 2
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

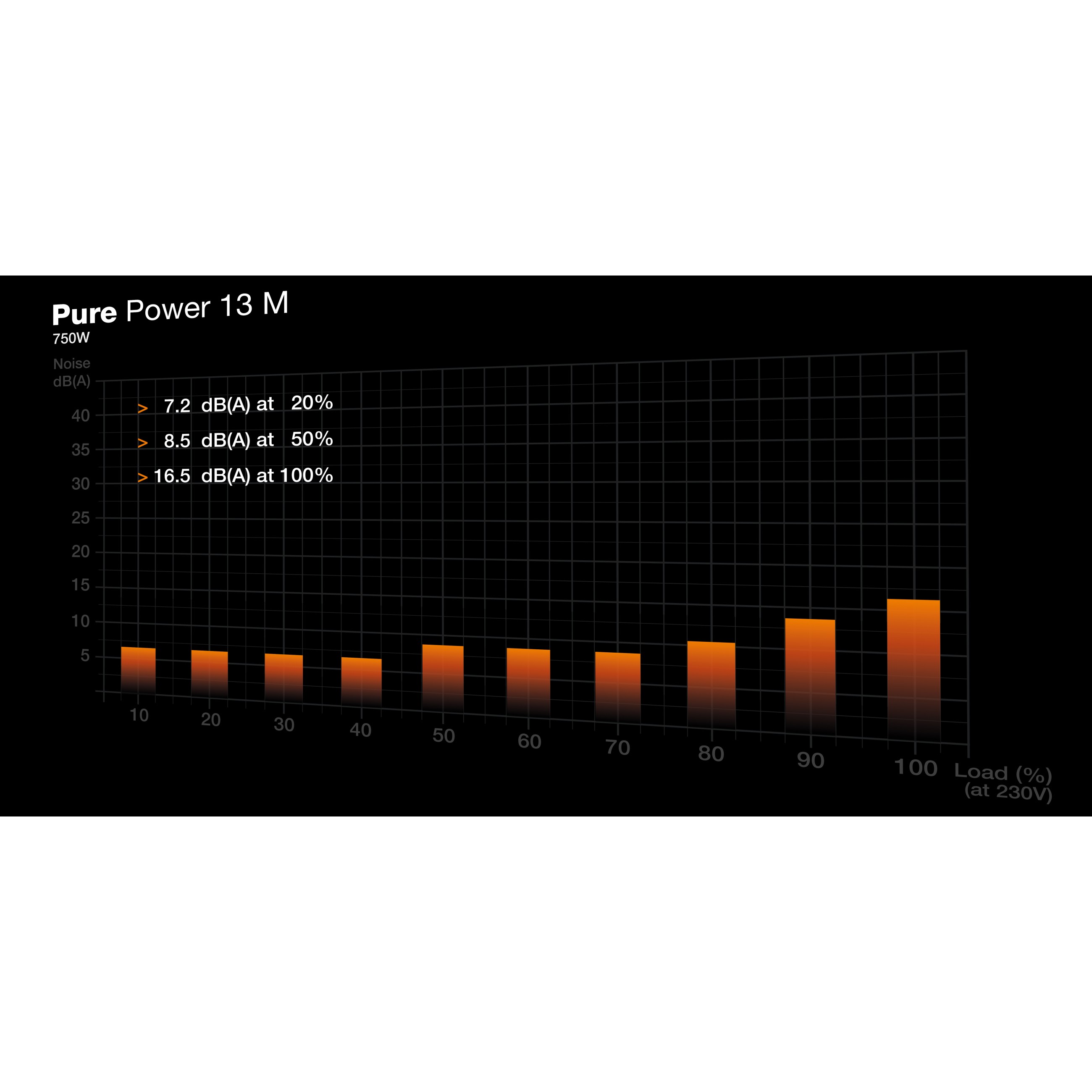

Noise level: 20.8 dB
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 1800 RPM
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Packaging content
Cables included: AC. CPU. PCIe. Peripheral (Molex). SATA
Certificates
Compliance certificates: BSMI. CB. CCC. CE. Federal Communications Commission (FCC). IRAM. RCM. RoHS. TÜV mark. UKCA. WEEE. cTUVus
Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 2.46 kg
Packaging data
Package width: 210 mm
Package depth: 320 mm
Package height: 133 mm
Package weight: 3.2 kg
Technical details
Sustainability certificates: ENERGY STAR. ErP
Logistics data
Shipping (inner) case length: 58 cm
Shipping (inner) case width: 32.5 cm
Shipping (inner) case height: 23.3 cm
Products per shipping (inner) case: 6 pc(s)
Shipping (inner) case gross weight: 21.5 kg
Other features
Feature: Screws included
Feature: Cable ties included
