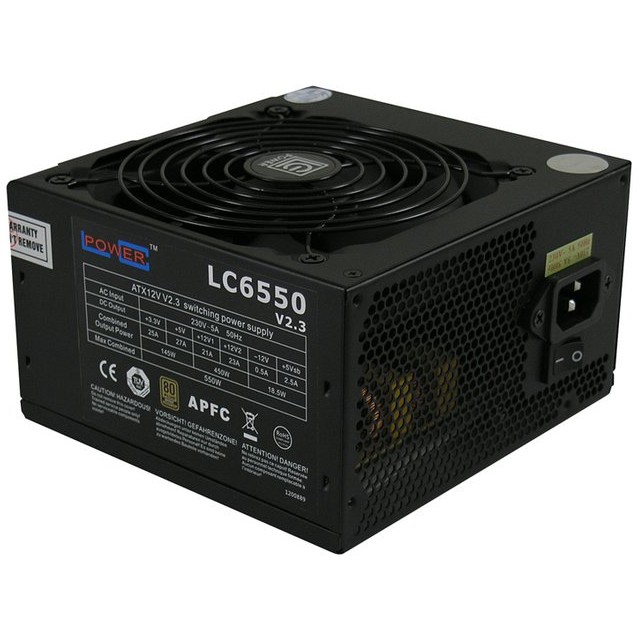

POWER SUPPLY (PSU)

- 80 PLUS BRONZE 230V EU certified
- 1x PCI-Express V2.0 6+2 pin connector
- 2x +12V rails
- 120mm fan
- Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry

Power
Total power: 550 W
AC input voltage: 230 V
AC input frequency: 50 Hz
Input current: 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 145 W
Combined power (+12V): 450 W
Combined power (+5V): 145 W
Combined power (-12V): 18.5 W
Combined power (+5Vsb): 18.5 W
Max output current (+3.3V): 25 A
Max output current (+12V1): 21 A
Max output current (+12V2): 23 A
Max output current (+5V): 27 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Efficiency: 88%
Power protection features: Over current. Over power. Over voltage. Short circuit. Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 45 cm
Number of SATA power connectors: 4
Number of PATA power connectors: 4
PCI Express power connectors (6+2 pin): 1
Feature: CPU power connector (4+4 pin)
CPU power cable length: 45 cm
Feature: PCI Express connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Design
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.75 kg
Logistics data
Harmonized System (HS) code: 84733020
