What This Product Does

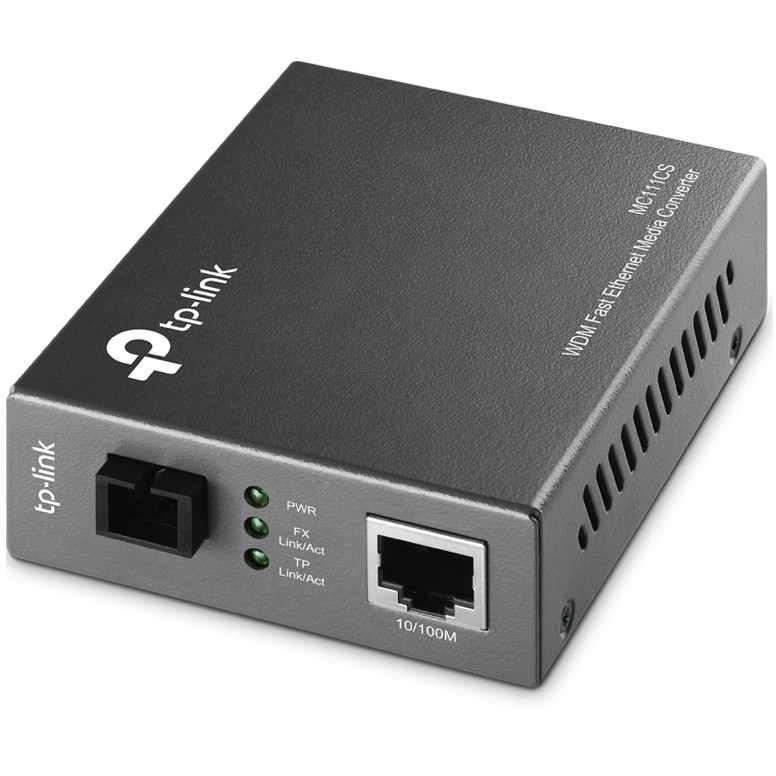

The MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology. MC111CS takes only one fiber cable to transmit and receive data. which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards. the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is just one of the examples to cooperate with MC111CS.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis. Auto MDI/MDI-X for TX port. Auto negotiation of duplex mode on TX port. and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3. IEEE 802.3u. IEEE 802.3x
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Fiber ethernet cabling technology: 100BASE-FX
Feature: Auto MDI/MDI-X
Cable types supported: Cat3. Cat4. Cat5. Cat5e
Performance
Maximum transfer distance: 20000 m
Wavelength: 1550 nm
Fiber mode structure: Single-mode
Features
LED indicators: Activity. Power
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Power
Power consumption (max): 1.23 W
Weight & dimensions
Width: 94.5 mm
Depth: 73 mm
Height: 27 mm
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Packaging data
Package width: 165 mm
Package depth: 204 mm
Package height: 65 mm
Package weight: 370 g
Certificates
Compliance certificates: RoHS
Certification: FCC. CE
Other features
I/O ports: 1x 100M SC1x 100M RJ45
Feature: Full duplex
