SWITCHES

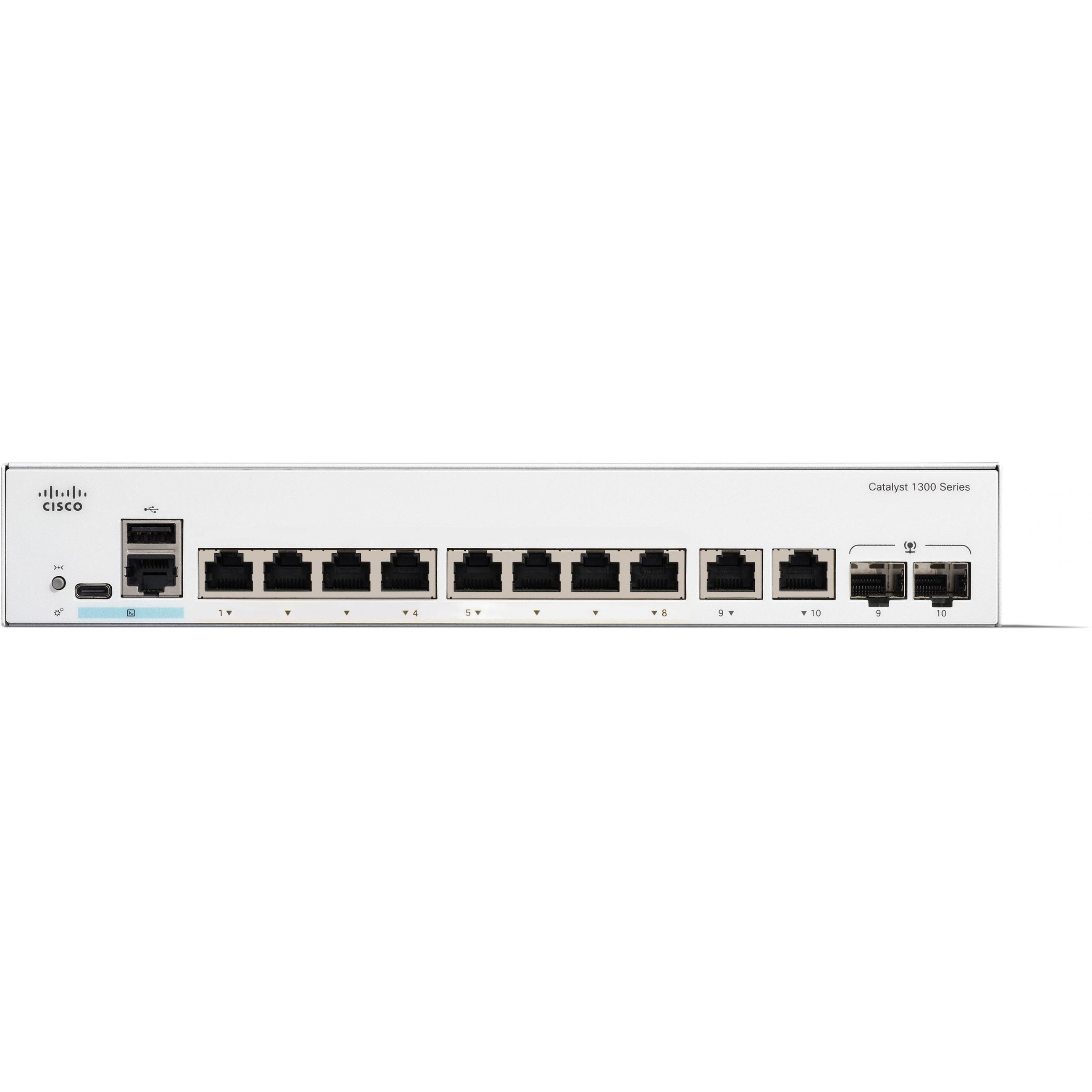

The Cisco Catalyst 1300-8T-E-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities. an intuitive web dashboard. advanced networking features and PoE+ support.

Management features
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Configuring Location Settings (CLI)
Feature: MIB support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Console port: RJ-45/USB Type-C
Network
Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4093
Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 16000 entries
Feature: Static route
Number of static routes: 990
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB
Security
DHCP features: DHCP Option 82. DHCP client. DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
IGMP entries: 2000
Feature: SSH/SSL support
Feature: Loop protection
Authentication: MAC-based authentication. Web-based authentication
Authentication type: RADIUS
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Product colour: Grey
Feature: LED indicators
Performance
Mean time between failures (MTBF): 2171669 h
Power
Power source: AC
AC input voltage: 110 - 220 V
AC input frequency: 50/60 Hz
Power consumption (max): 12.56 W
Power plug type: Type C
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Heat dissipation: 42.86 BTU/h
Weight & dimensions
Width: 184.9 mm
Depth: 268.2 mm
Height: 43.9 mm
Weight: 1.39 kg
Packaging data
Package width: 299 mm
Package depth: 544.8 mm
Package height: 103.9 mm
Package weight: 2.47 kg
Logistics data
Country of origin: China
