SWITCHES

Increase Your Network Speed and Save Energy

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches. you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX. there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology. helping you save power and money. Power consumption automatically adjusts according to link status and cable length. allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Durable Metal Casing
The interior components of LS108G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests. LS108G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Use Where You Need. However You Need
The LS108G is fully compatible with networked devices such as computers. printers. webcams. IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories. surveillance. homes. and small businesses.

Management features
Switch type: Unmanaged
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

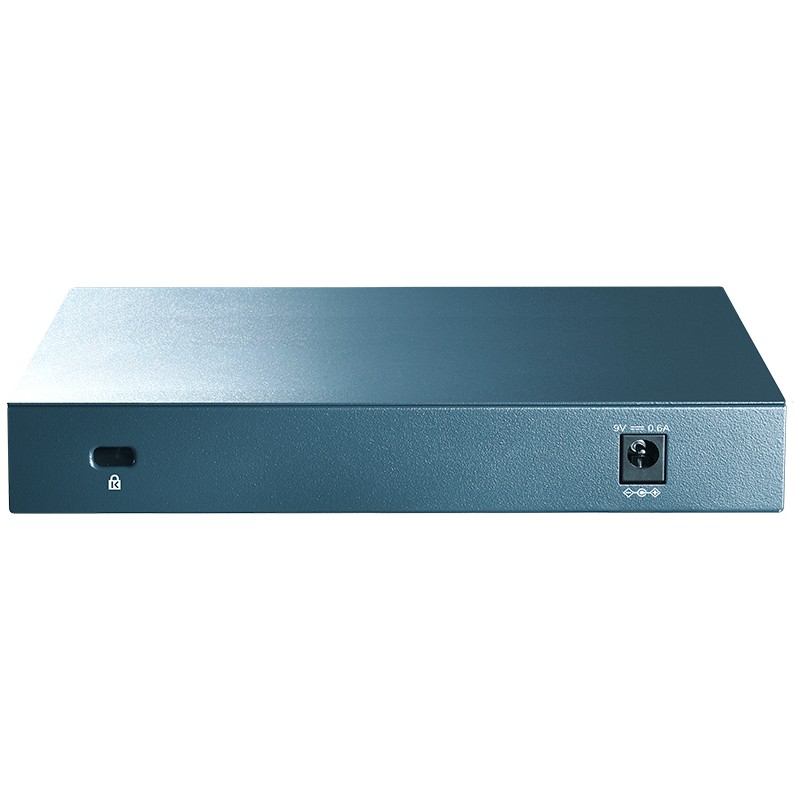

Power connector: DC-in jack
Network
Networking standards: IEEE 802.1p. IEEE 802.3ab. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 16000
Packet buffer memory: 1.5 MB
Design
Product colour: Blue
LED indicators: Activity. LAN. Power
Power
Power source: DC
Feature: Power supply included
Input current: 0.6 A
Input voltage: 5 V
Power consumption (max): 3.7 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 12.617 BTU/h
Weight & dimensions
Width: 158 mm
Depth: 99 mm
Height: 25 mm
Packaging content
Feature: Quick start guide
Packaging data
Package width: 130 mm
Package depth: 191 mm
Package height: 92 mm
Package weight: 470 g
Certificates
Certification: CE. FCC. RoHS
Logistics data
Harmonized System (HS) code: 85176990
