SWITCHES

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches. you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX. there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology. helping you save power and money. Power consumption automatically adjusts according to link status and cable length. allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Gigabit Ports For Faster Speeds

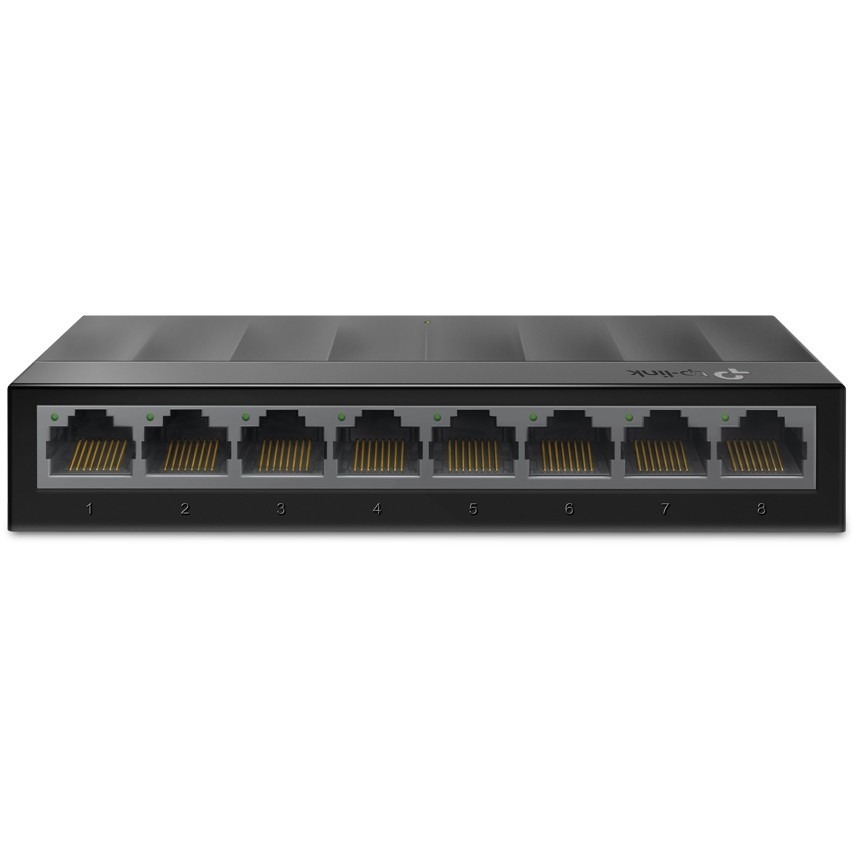

Increase the speed of your network with the LS1008G 8-port Gigabit desktop switch. Non-blocking. 8× 10/100/1000Mbps ports enable instant transferring of large. bandwidth intensive files without interference.

Use Where You Need. However You Need
The LS1008G is fully compatible with networked devices such as computers. printers. webcams. IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories. surveillance. homes. and small businesses.

Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Power connector: DC-in jack
Network
Networking standards: IEEE 802.3i. IEEE 802.3u. IEEE 802.3x
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 4000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 16000
Packet buffer memory: 1.5 MB
Design
Product colour: Black
Housing material: Plastic
LED indicators: Activity. Link. Power
Feature: Wall mountable
Power
Power source: DC
Feature: Power supply included
Input current: 0.6 A
Input voltage: 5 V
Power consumption (max): 3.9 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 13.299 BTU/h
Weight & dimensions
Width: 127 mm
Depth: 66.5 mm
Height: 23 mm
Packaging content
Feature: Quick start guide
Packaging data
Package type: Box
Package width: 90 mm
Package depth: 131 mm
Package height: 84 mm
Package weight: 220 g
Certificates
Certification: CE. FCC. RoHS
Logistics data
Harmonized System (HS) code: 85176990
