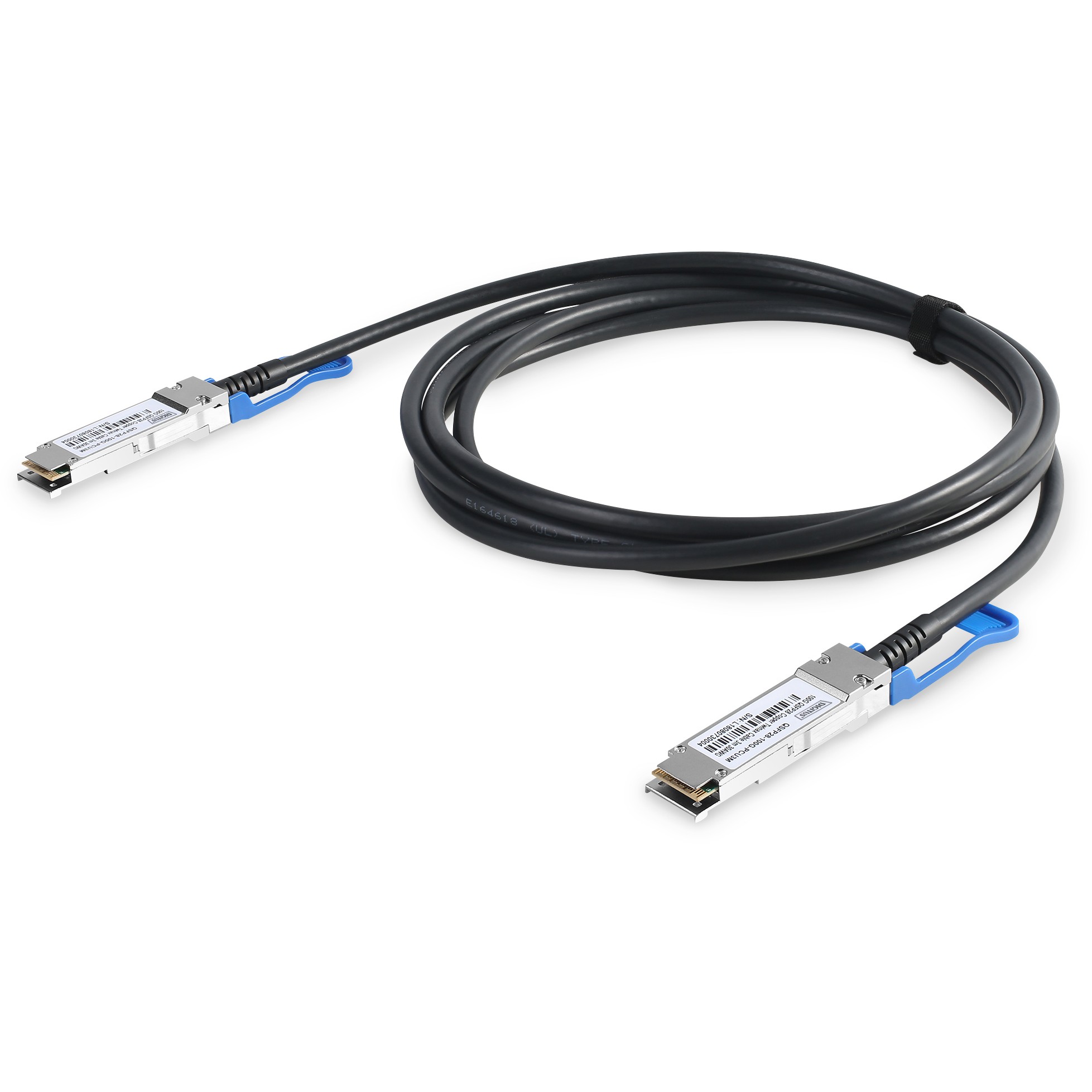

100G QSFP28 DAC cable. 1 m AWG30

- 100G QSFP28 DAC cable. 1m
- Maximum data transfer rate: 100 Gb/s ( 4x 25 Gb/s)
- 100G QSFP28 to QSFP28
- AWG 30. full duplex channels
- Maximum supported data rate per channel 28.3125 Gbps
- The connector is compatible with the SFF-8665 specification
- Power: + 3.3V supply voltage
- AWG: 30
- Compatible with the following manufacturers: Allnet. CISCO. 3COM. D-LINK. Dell. Edimax. Etherwan. ENTERASYS. EXTREME. FINISAR. FORCE 10. Fortinet. HUAWEI. IBM. JUNIPER. LINKSYS. NETGEAR. NORTEL. RIVERSTONE. ZTE. ZYXEL

The Digitus® QSFP28 100G DAC cables are the ideal connection between switches in the backbone area. The 100G QSFP28 to QSFP28 Direct Attach Cable copper cable assemblies(DAC) are a low cost alternative for short reach applications. It is compliant with 100G Ethernet (100GBASE-CR4) specifications. It contains four high-speed copper pairs. each operating at data rates of up to 25GbE. So the QSFP28 DAC cable assembly is suitable for power-efficient connectivity for short distance interconnects. such as Data center. enterprise storage systems and High-Performance Computing.

Features
Cable length: 1 m
Feature: InfiniBand protocol
Connector 1: QSFP28
Connector 2: QSFP28
Connector 1 gender: Male
Connector 2 gender: Male
Cable type: DAC
Product colour: Black. Silver
Data transfer rate: 100 Gbit/s
Brand compatibility: Universal
Feature: Plug and Play
Operational conditions
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Packaging data
Package width: 260 mm
Package depth: 260 mm
Package height: 30 mm
Package volume: 2028 cm³
Package weight: 150 g
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
UK Trade Tariff code: 85176200
Country of origin: China
