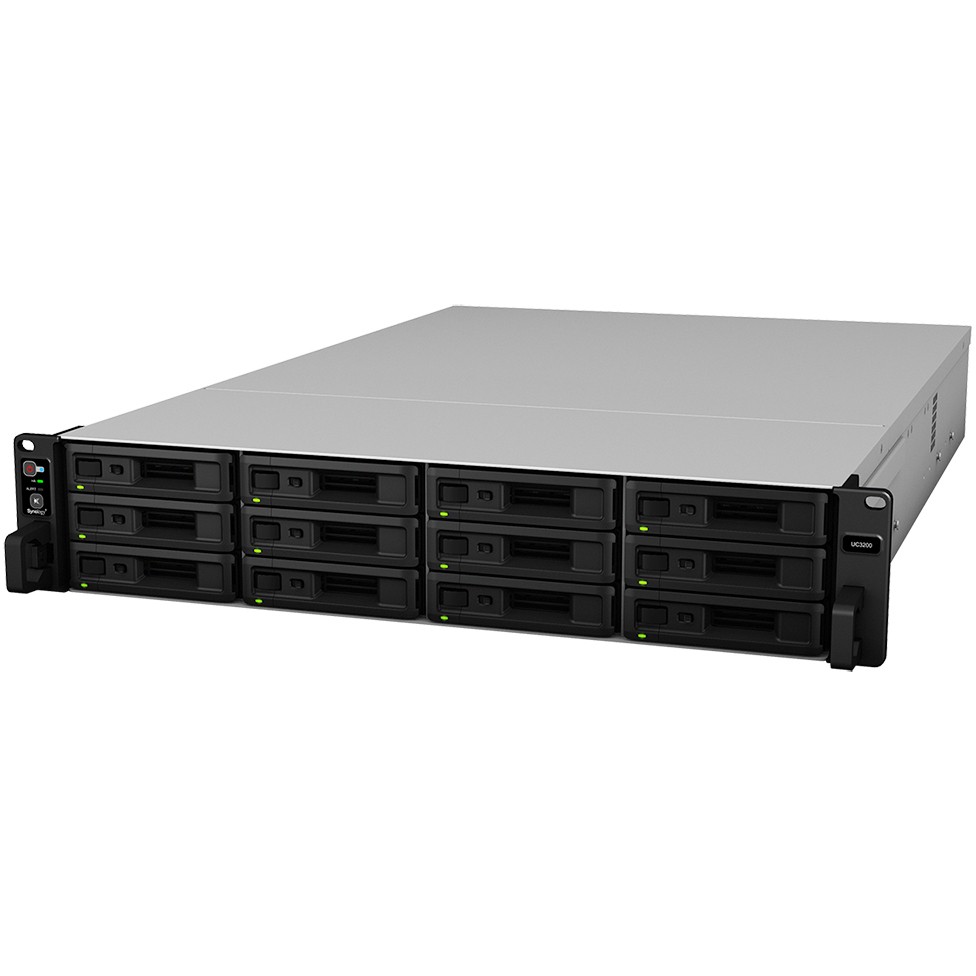

Synology Unified Controller UC3200
Product code: 11514422 // MPN: UC3200 // EAN: 4711174723126
€8.555,70 (inc. VAT)
Available from 4 to 10 days (1 pcs available)
CARD CF 32GB Transcend Hochbelastbar microHC/SD-Adapter inbegriffen
Code: 10847522
€67,80
Available from 4 to 10 daysDelivering reliable. highly available iSCSI services
Realizing high-availability architecture in just one single chassis. the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster. delivering services without any interruptions.
12 x 3.5”/2.5” HDD/SSD
High-performance SAS interface drive slots with maximum 576TB raw capacity. Supporting SED (Self Encrypting Drive) to encrypt all data to hard drives. UC3200 provides upmost data security at the hardware level.
Redundant power supply
Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure.
Active-active controller module
Dual controller modules work simultaneously to provide high performance and non-disruptive iSCSI services.
PCIe 3.0 slot
Further boost network bandwidth with optional 10GbE/25GbE network interface cards' expansion.
2 x 1GbE & 1 x 10GbE
Onboard RJ45 interfaces of 1GbE and 10GbE with the Link Aggregation support.
Mini-SAS HD port
Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion.
Processor
Armed with Intel® Xeon® D-1521 4-core 2.4 GHz processor burst up to 2.7 GHz. UC3200’s dual CPUs provide enterprise-class performance of 140.000 4K random write IOPS with low latency.
4 x DDR4 memory slots
8GB ECC UDIMM. expandable up to 64GB to boost system performance.
Fan
Redundant. modularized fans for easy maintenance and replacement. minimizing service downtime.
SATA DOM
The dedicated SATA DOM isolates the operating system from the regular data stored in hard drives.
Non-Transparent Bridge (NTB)
Connect two controller modules at a blazingly fast speed and instantly sync memory data between the controllers to prevent cached data loss when one controller is unavailable.
Works with mainstream virtualization systems
Optimized for virtualization environments.
- Integrated with VMware vSphere® 6.5. Microsoft Hyper-V®. and VAAI to offload storage operations and optimize computational efficiency.
- Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
- Turn Synology UC3200 into a block-based storage component with the support of OpenStack® Cinder.
- Compliance with iSCSI industry standard ALUA allows hosts to identify the optimized paths to increase data transfer performance and efficiency.
A system built exclusively for iSCSI
DSM UC. an operating system designed to ease the learning curve. allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur. so that IT administrators can stay alert to potential problems and respond in the shortest time possible.
Disaster-proof your critical data
Snapshot Replication is put in place with the support of Btrfs file system. offering schedulable and near-instantaneous data protection. Supporting up to 4.096 system-wide snapshots for local volumes or offsite servers. UC3200 brings application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.
Storage
Storage drive capacity: 0 GB
Supported storage drive interfaces: Serial Attached SCSI (SAS)
Storage drive sizes supported: 2.5.3.5"
Maximum supported storage capacity: 192 TB
Feature: RAID support
RAID levels: 0. 1. 5. 6. 10. F1. JBOD
Feature: Hot-swap drive bays
Supported file systems: BTRFS
Total installed storage capacity: 0 TB
Number of storage drives supported: 12
Supported storage drive types: HDD & SSD
Processor
Processor manufacturer: Intel
Processor family: Intel® Xeon® D
Processor model: D-1521
Processor frequency: 2.4 GHz
Processor boost frequency: 2.7 GHz
Processor cores: 4
Processor threads: 8
Processor cache: 6 MB
CPU configuration (max): 1
PCI Express configurations: 1x16. 1x4. 1x8
PCI Express slots version: 2.0. 3.0
Processor code: SR2DF
Processor codename: Broadwell
Processor lithography: 14 nm
Processor operating modes: 64-bit
Processor package size: 37.5 x 37.5 mm
Processor series: Intel Xeon D-1500
Processor socket: BGA 1667
Scalability: 1S
Stepping: V2
Thermal Design Power (TDP): 45 W
Maximum internal memory supported by processor: 128 GB
Feature: Conflict-Free processor
Memory
Internal memory: 8 GB
Internal memory type: DDR4
Maximum RAM supported: 64 GB
Memory slots: 4
Memory form factor: UDIMM
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000.10000 Mbit/s
Ethernet LAN data rate supported (max): 10000 Mbit/s
Feature: iSCSI support
Supported network protocols: iSCSI. Telnet. SSH. SNMP
Feature: Link aggregation
Ports & interfaces
Ethernet LAN (RJ-45) ports: 3
PCI Express x8 (Gen 3.x) slots: 1
Design
Chassis type: Rack (2U)
Cooling type: Active
Product colour: Black. Grey
Number of fans: 2 fan(s)
Fan diameter: 6 cm
LED indicators: Power. Status
Performance
Type: SAN
Device class: Small & Medium Business
Feature: Backup function
Backup features: iSCSI LUN
Feature: Multilingual support
Noise level: 51.3 dB
Feature: Snapshot
Feature: Web-based management
Feature: Reset button
Feature: On/off switch
Browser supported: Chrome. Firefox. Edge.Internet Explorer 10+. Safari 10+. Chrome
Software
Feature: Linux operating systems supported
Server operating systems supported: Windows Server 2008. Windows Server 2012. Windows Server 2013. Windows Server 2016
Other operating systems supported: Solaris 10. Solaris 11. VMware ESX/ESXi 5.0. VMware ESX/ESXi 5.1. VMware ESX/ESXi 6.0. VMware ESX/ESXi 6.5
Power
Power supply location: Built-in
Power supply unit (PSU) capacity: 500 W
Number of power supply units: 1
Feature: Redundant power supply (RPS) support
Power consumption (typical): 417.48 W
Power consumption (HDD standby): 274.38 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Weight & dimensions
Width: 482 mm
Depth: 724 mm
Height: 88 mm
Weight: 19.7 kg
Packaging content
Cables included: AC
Feature: Quick installation guide
Processor special features
Feature: Enhanced Intel SpeedStep Technology
Feature: Execute Disable Bit
Feature: Idle States
Feature: Intel 64
Feature: Intel Enhanced Halt State
Intel Secure Key Technology version: 1.00
Feature: Intel Trusted Execution Technology
Feature: Intel TSX-NI
Intel TSX-NI version: 1.00
Feature: Intel Virtualization Technology (VT-x)
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel VT-x with Extended Page Tables (EPT)
Feature: Intel® AES New Instructions (Intel® AES-NI)
Feature: Intel® Hyper Threading Technology (Intel® HT Technology)
Feature: Intel® OS Guard
Feature: Intel® Secure Key
Intel® Turbo Boost Technology: 2.0
Maximum number of PCI Express lanes: 32
Feature: Thermal Monitoring Technologies
Feature: UART
Memory types supported by processor: DDR3-SDRAM. DDR4-SDRAM
Operational conditions
Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 5000 m
Logistics data
Harmonized System (HS) code: 84714100
Other features
Compliance certificates: RoHS
Certification: EACVCCICCCRCMKCFCCCEBSMI
Processor ARK ID: 91202
