STORAGE MEDIA

Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage. data backup. and collaboration applications. suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management. optimizes virtualization environments. and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty.

Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor. 8 GB DDR4 memory (expandable up to 64 GB). and four Gigabit LAN ports. With an optional 10GbE network adapter card installed. RS1619xs+ delivers sequential reading throughput over 1.523 MB/s and 162.097 iSCSI random read IOPS under a RAID 5 configuration.

RS1619xs+ comes with two onboard M.2 SSD slots. allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort.

Storage
Storage drive capacity: 0 GB
Storage drive interface: Serial ATA. Serial ATA II. Serial ATA III
Storage drive sizes supported: 2.5.3.5"
Number of M.2 (M & B) slots: 2
Feature: RAID support
RAID levels: 0. 1. 5. 6. 10. JBOD
Feature: Hot-swap drive bays
Supported file systems: BTRFS. Fat. HFS+. NTFS. ext3. ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 4
Supported storage drive types: HDD & SSD
Processor
Processor manufacturer: Intel
Processor family: Intel® Xeon® D
Processor model: D-1527
Processor frequency: 2.2 GHz
Processor boost frequency: 2.7 GHz
Processor cores: 4
Processor threads: 8
Processor cache: 6 MB
CPU configuration (max): 1
Feature: ECC supported by processor
PCI Express configurations: 1x16. 1x4. 1x8
PCI Express slots version: 2.0. 3.0
Processor cache type: L3
Processor code: SR2DK
Processor codename: Broadwell
Processor lithography: 14 nm
Processor operating modes: 64-bit
Processor package size: 37.5 x 37.5 mm
Processor series: Intel Xeon D-1500
Processor socket: BGA 1667
Scalability: 1S
Stepping: V2
Thermal Design Power (TDP): 35 W
On-board graphics card model: Not available
Maximum internal memory supported by processor: 128 GB
Feature: Conflict-Free processor
Memory
Internal memory: 8 GB
Internal memory type: DDR4
Maximum RAM supported: 64 GB
Memory slots: 4
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10.100.1000 Mbit/s
Feature: iSCSI support
Feature: Wake-on-LAN ready
Supported network protocols: CIFS. AFP. NFS. FTP. WebDAV. CalDAV. iSCSI. Telnet. SSH. SNMP. VPN (PPTP. OpenVPN. L2TP)
Feature: Link aggregation
Ports & interfaces
Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
Expansion ports quantity: 1
PCI Express x8 (Gen 3.x) slots: 1
Design

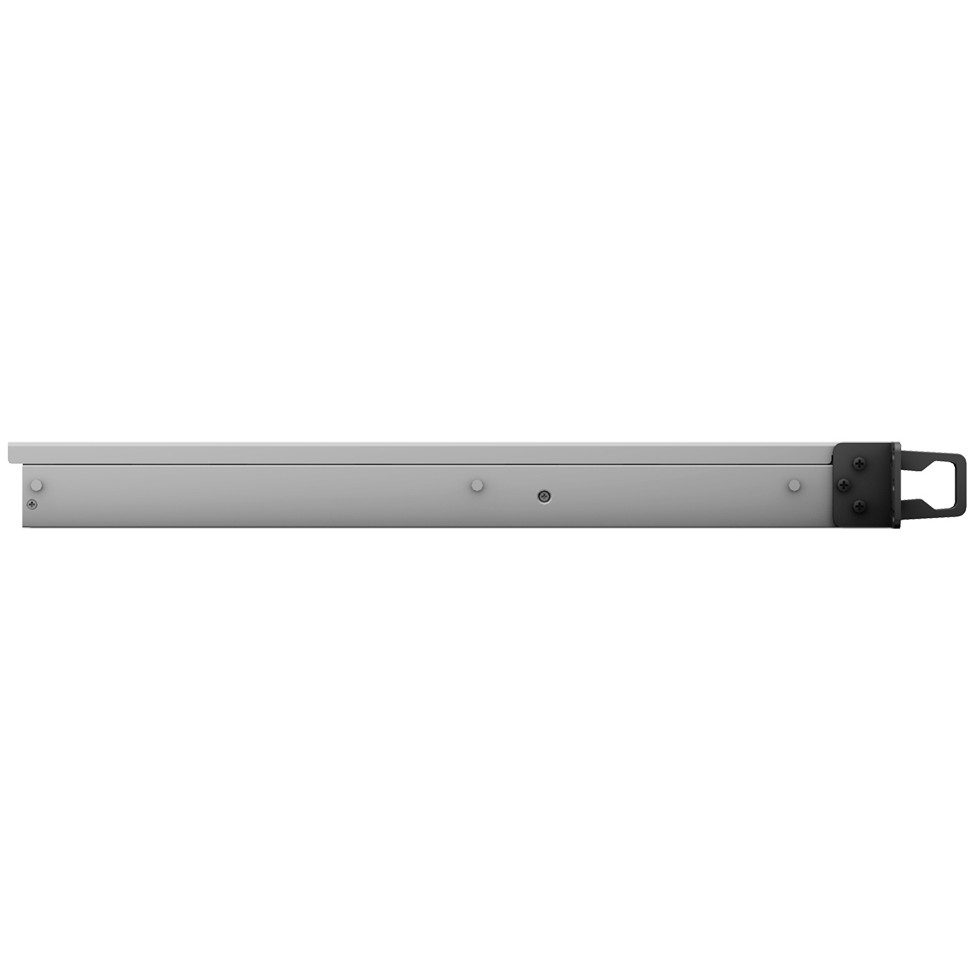

Chassis type: Rack (1U)
Cooling type: Active
Product colour: Black
Number of fans: 2 fan(s)
Fan diameter: 4 cm
LED indicators: Alarm. HDD. Power. Status
Performance
Type: NAS
Device class: Small & Medium Business
Feature: Backup function
Backup features: Cloud. iSCSI LUN
Feature: Multilingual support
Noise level: 39.3 dB
Feature: Web-based management
Security algorithms: HTTPS. SSH. SSL/TLS
Feature: Access Control List (ACL)
Feature: Reset button
Feature: On/off switch
Browser supported: Chrome. Firefox. Internet Explorer 10+. Safari 10+
Software
Operating system installed: DiskStation Manager
Windows operating systems supported: Windows 10. Windows 7
Mac operating systems supported: Mac OS X 10.11 El Capitan. Mac OS X 10.12 Sierra. Mac OS X 10.13 High Sierra. Mac OS X 10.14 Mojave
Server operating systems supported: Windows Server 2016
Power
Power supply location: Built-in
Power supply unit (PSU) capacity: 150 W
Number of power supply units: 2
Power consumption (typical): 68.68 W
Power consumption (HDD standby): 34.78 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Weight & dimensions
Width: 480 mm
Depth: 518.6 mm
Height: 44 mm
Weight: 8.16 kg
Packaging content
Cables included: AC
Feature: Quick installation guide
Processor special features
Feature: Embedded options available
Feature: Enhanced Intel SpeedStep Technology
Feature: Execute Disable Bit
Feature: Idle States
Feature: Intel 64
Feature: Intel Enhanced Halt State
Intel Secure Key Technology version: 1.00
Feature: Intel Trusted Execution Technology
Feature: Intel TSX-NI
Intel TSX-NI version: 1.00
Feature: Intel Virtualization Technology (VT-x)
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel VT-x with Extended Page Tables (EPT)
Feature: Intel® AES New Instructions (Intel® AES-NI)
Feature: Intel® Hyper Threading Technology (Intel® HT Technology)
Feature: Intel® OS Guard
Feature: Intel® Secure Key
Intel® Turbo Boost Technology: 2.0
Maximum number of PCI Express lanes: 32
Feature: Thermal Monitoring Technologies
Feature: UART
Memory channels supported by processor: Dual
Memory types supported by processor: DDR3-SDRAM. DDR4-SDRAM
Operational conditions
Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 60 °C
Operating altitude: 0 - 5000 m
Logistics data
Harmonized System (HS) code: 84714100
Other features
Compliance certificates: RoHS
Certification: EACVCCIRCMFCCCEBSMI
Processor ARK ID: 91195
