ACCESS POINTS

Extend WiFi to Crowded Outdoor Environments

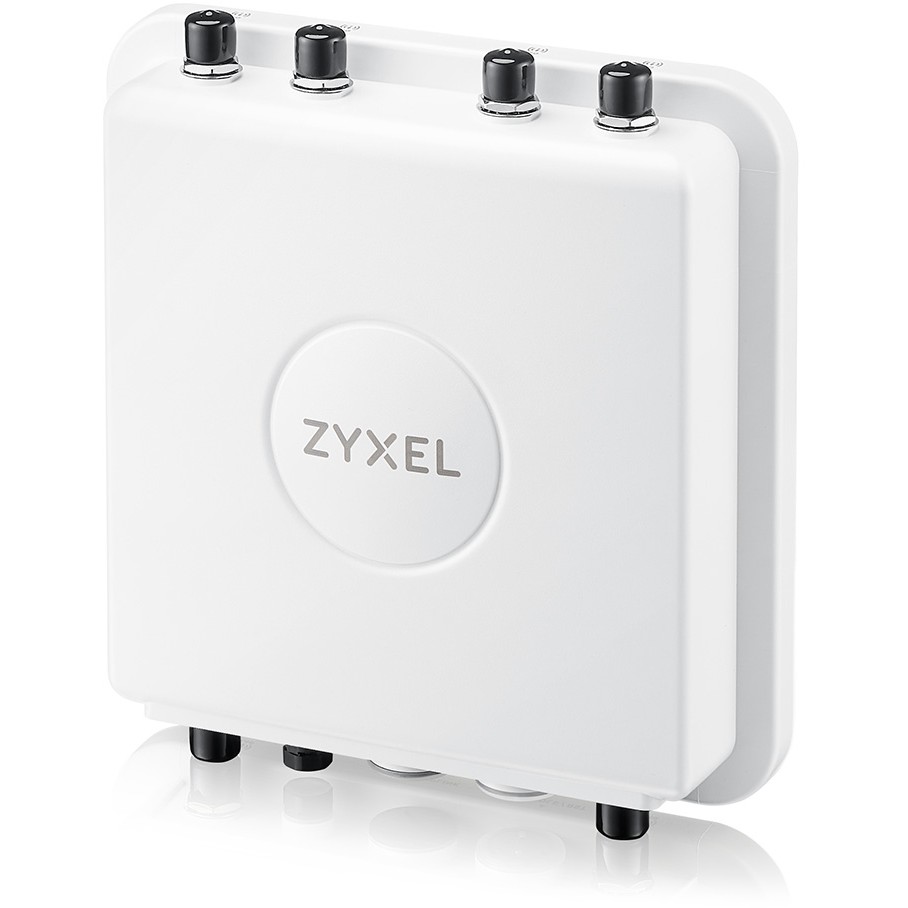

Designed to combat congested mobile data networks and bad WiFi offloading. the Zyxel WAX655E access point provides multi-gigabit wireless connectivity in large open areas. such as stadiums and parking lots.

Fully equipped with the latest WiFi 6 technologies. the WAX655E is able to provide both superb performance and user satisfaction in public environments.

Ideal for Harsh Outdoor Connectivity
The WAX655E offers up to IP67 industry-grade weather proofing and the capability to work in extremely high- or low-temperature conditions.

Also. the built-in surge protector of WAX655E provides an extra layer of protection for your investments against surges caused by lightning.

Extending Your WiFi Coverage with Smart Mesh
Zyxel’s Smart Mesh Technology not only can form dynamic wireless links between APs to extend coverage in the high-density outdoor environments. but also bridge the wireless connectivity from one building to another. The WAX655EE is an ideal choice for expanding your wireless network to busy outdoor areas as well as forming an interconnected wireless network through outdoor inter-building links.

Manage it your way!
The WAX655E comes with the support of NebulaFlex Pro. which offers the full flexibility for users to easily switch between. Zyxel Nebula cloud-managed. controller-managed. and standalone modes. You can choose the appropriate managed-mode best suited for your needs.

Features
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 4800 Mbit/s
Maximum data transfer rate (2.4 GHz): 575 Mbit/s
Ethernet LAN data rates: 1000.2500 Mbit/s
Networking standards: IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: VLAN support
Security
Security algorithms: WEP. WPA2. WPA2-PSK. WPA3
Feature: MAC address filtering
Management features
Feature: Web-based management
Feature: Firmware upgradeable
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Power
Feature: Power over Ethernet (PoE)
Power consumption (max): 25.5 W
Design
Placement: Pole. Wall
Product colour: White
International Protection (IP) code: IP67
Antenna
Antenna type: External
Antenna features: Detachable antenna
Antennas quantity: 6
Antenna connector type: N-type
Number of connectors: 6
Certificates
Certification: FCC Part 15C. FCC Part 15E. ETSI EN 300 328. EN 301 893. LP0002
Weight & dimensions
Width: 256 mm
Depth: 257 mm
Height: 70 mm
Weight: 1.36 kg
Packaging data
Package width: 427 mm
Package depth: 284 mm
Package height: 111 mm
Package weight: 2.92 kg
Packaging content
Quantity per pack: 1 pc(s)
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -40 - 65 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 10 - 90%
