MONITORS

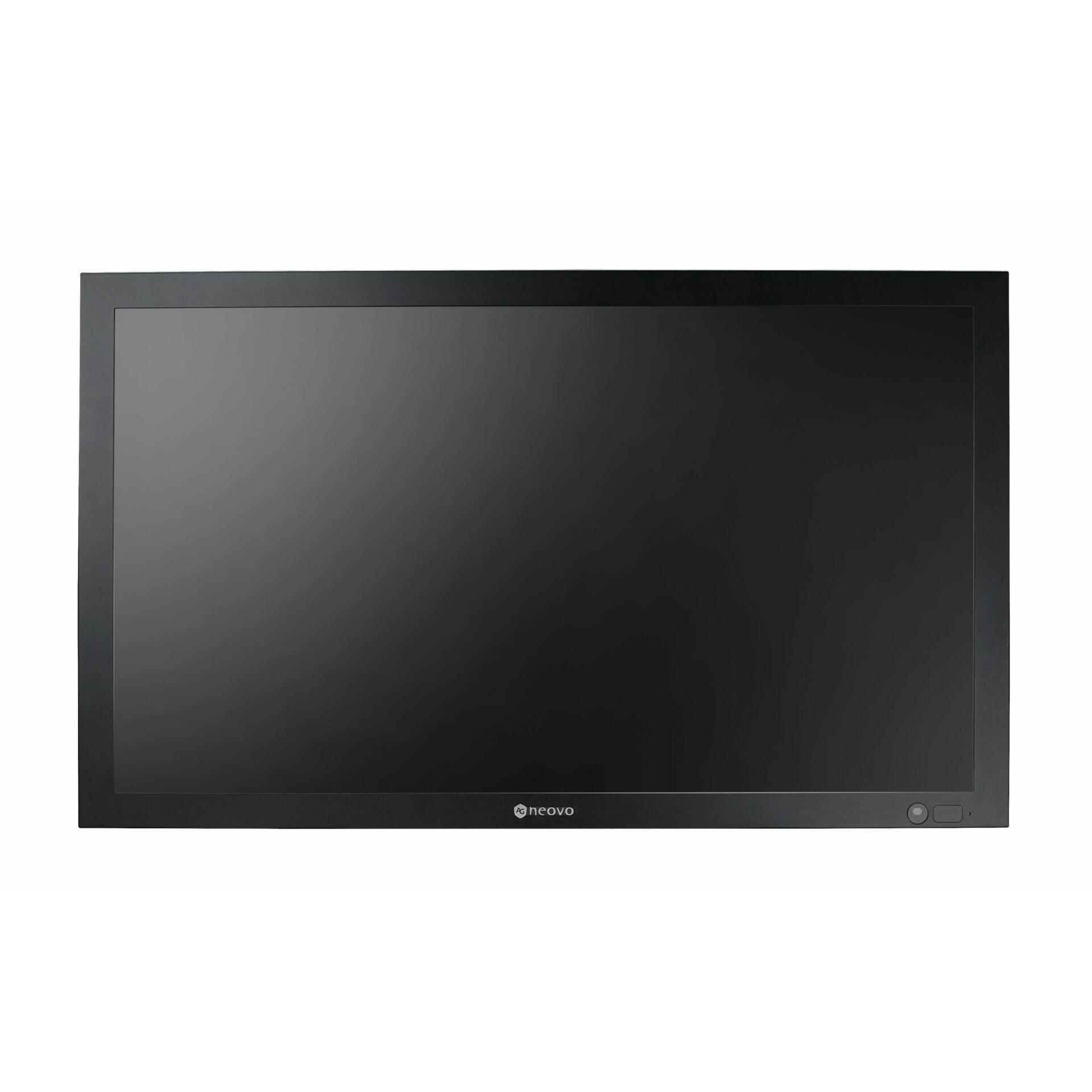

The QX-55 55-Inch 4K surveillance display is designed for high-resolution security systems. Multi-screen viewing enables the simultaneous display of multiple signals with up to 4 split screens. In addition to simplifying hardware setup by enabling the use of one display in place of four 1080p monitors. the QX-55 provides the gain in clarity required for real-time and up-close monitoring in traffic management centres. casinos. emergency operations centres and other public installations.

EXPERIENCE THE 4K DIFFERENCE
Don’t miss a single detail with this powerful 4K security & surveillance display. View smooth 4K video and graphics with a new level of detail and clarity. Offering 8.3 million pixels. the QX-55 55-Inch 4K surveillance display provides sufficient resolution for even the most demanding surveillance and digital signage applications.

EASY CONTROL AND INTEGRATION
Its built-in RS-232 and Ethernet control capabilities make the QX-55 easy to control and integration a breeze. Whether it is a local serial management connection or a remote network installation. the display can be managed in multiple scenarios and applications.

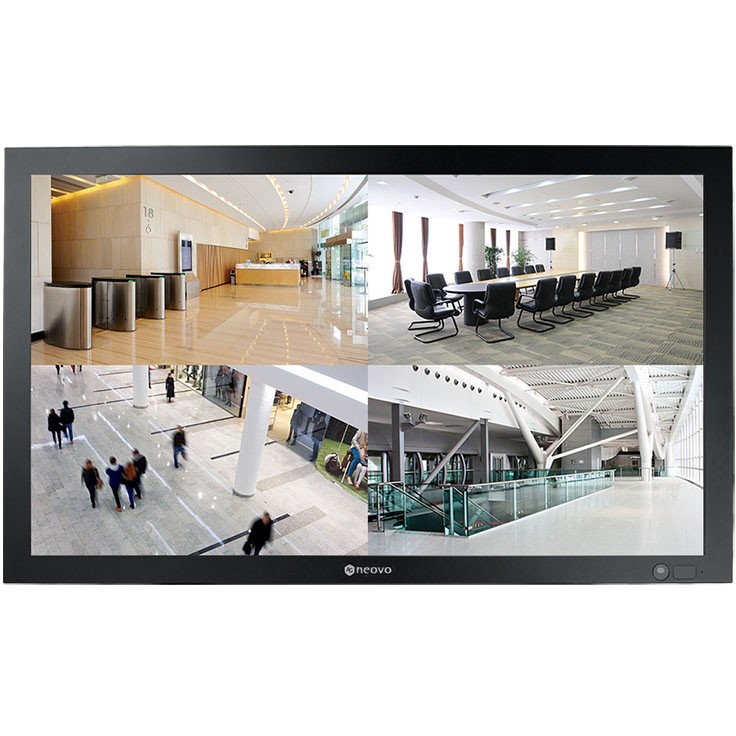

MULTI-SCREEN VIEWER| ONE DISPLAY. FOUR SCREENS
Beyond traditional two-input Picture-by-Picture (PIP) feature. the multi-screen viewer can display up to four full HD screens simultaneously from four different input sources. This advanced feature allows it to replace a typical four monitor setup and delivers four-quadrant viewing at crisp and true Full HD content.

INDUSTRY-LEADING RELIABILITY
Designed for 24/7 operation. these durable metal-housed displays protected with NeoV™ Optical Glass screen take advantage of superior components to ensure a long product lifetime. Its integrated HeatControl sensors automatically activate the internal cooling fans. which is crucial when the temperature rises in mission-critical installations.

PID COMMAND & CTRL SOFTWARE
PID Command & Ctrl is a software that allows users to control AG Neovo security & surveillance display via LAN or RS232 connections. It provides a simple and intuitive interface for remote management. OSD-related settings. and easy control on deployed displays. It also can be used to create video walls within minutes and assist system integrators with setting up displays.

Design
Mounting type: Freestanding/Wall-mounted
Product colour: Black
Display
Display diagonal: 139.7 cm (55")
Display resolution: 3840 x 2160 pixels
Display type: LED
Panel type: VA
Display brightness: 450 cd/m²
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 16.78 million colours
Pixel pitch: 0.315 x 0.315 mm
Horizontal scan range: 31 - 92 kHz
Vertical scan range: 48 - 85 Hz
Contrast ratio (typical): 4000:1
Response time: 5 ms
Performance
Feature: Built-in speaker(s)
Number of built-in speakers: 2
Speaker power: 10 W
Feature: VESA mounting
Panel mounting interface: 400 x 200.400 x 400 mm
Ports & interfaces
HDMI ports quantity: 1
HDMI version: 2.0
DVI-D ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: Ethernet LAN
RJ-45 ports quantity: 1
Feature: USB port
USB 2.0 ports quantity: 1
Feature: 3.5 mm (1/8-inch) in
Power
Power source type: AC
Power consumption (typical): 96.2 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 100-240 V
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 96 kWh
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Technical details
Compliance certificates: RoHS
Weight & dimensions
Weight: 39.1 kg
Height: 742 mm
Depth: 87 mm
Width: 1271 mm
Package width: 1430 mm
Package depth: 185 mm
Package height: 830 mm
Package weight: 47.2 kg
Packaging content
Feature: Batteries included
