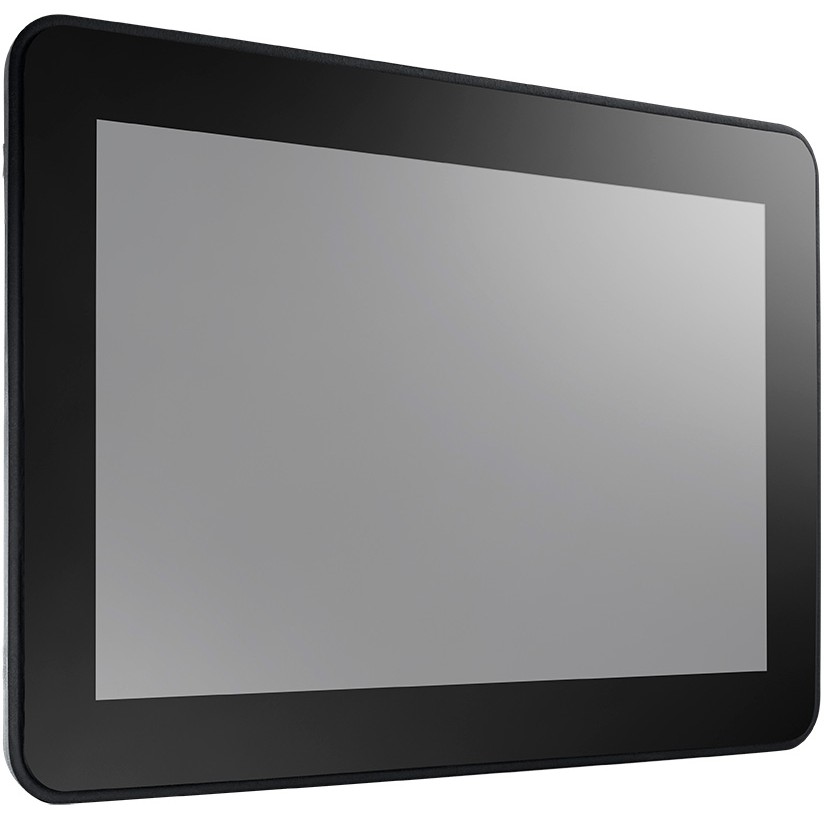

The TX-10 Multi-touch Interactive Display. with its 10.1-inch. 10-point touch screen. brings the experience of a tablet into the form factor of a monitor. Its foam seal design supports seamless integration into kiosks and its front-side IP65 rating protects the screen from dust and water. External mounting brackets are provided for installation in a wide variety of application environments—in a meeting room as a scheduling display. or in a number of public. commercial. and industrial interactive applications. Allowing for either landscape or portrait orientation. the TX-10 multi-touch interactive display is the perfect fit.

Display
Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
Display technology: LED
Pixel pitch: 0.169 x 0.169 mm
Maximum refresh rate: 60 Hz
Response time: 5 ms
Contrast ratio (typical): 1300:1
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Design

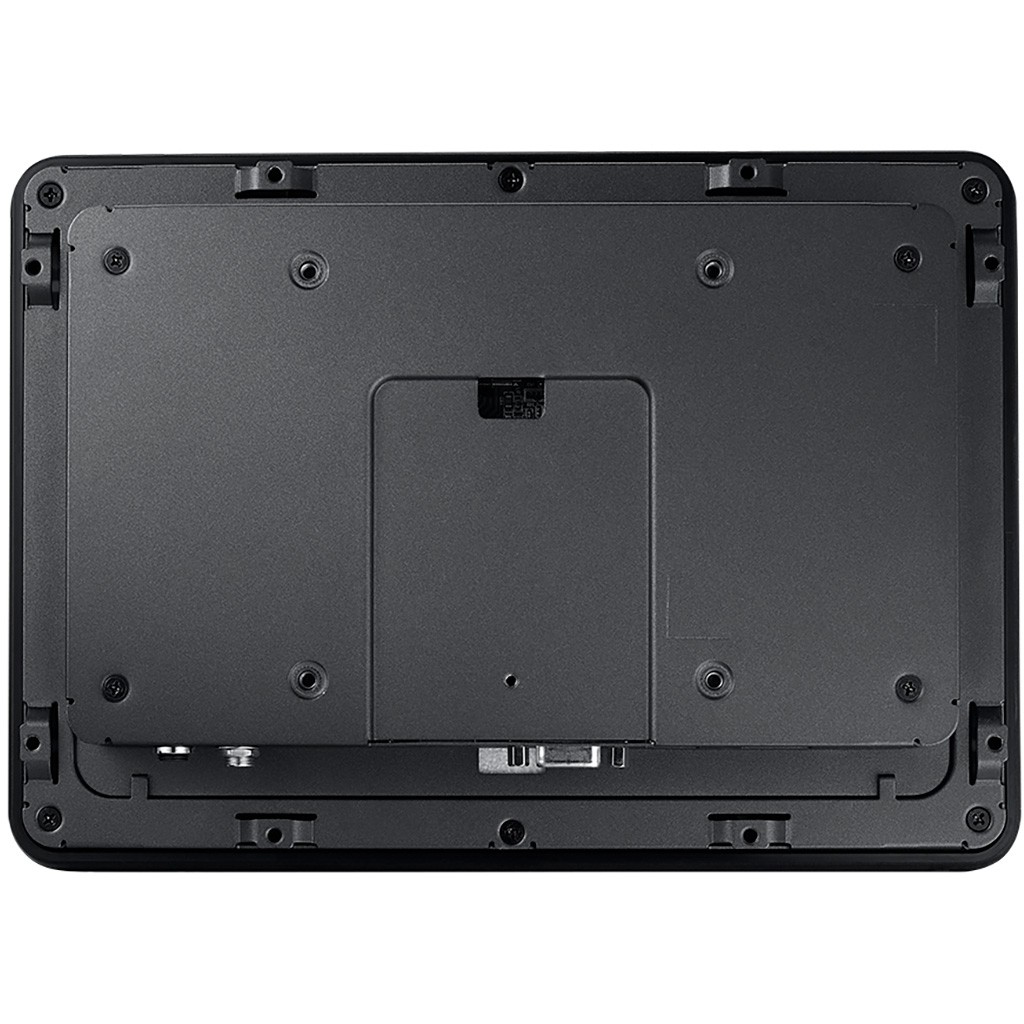

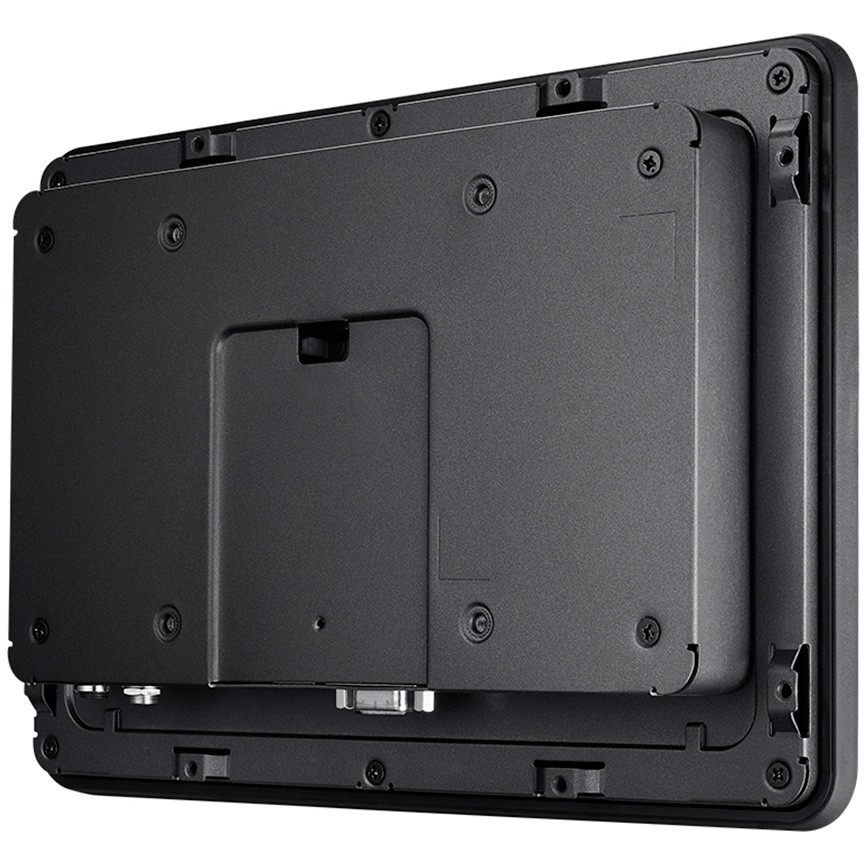

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: LED indicators
Certification: CE. LVD. BSMI. RoHS. REACH. WEEE
Performance
Windows operating systems supported: Windows 10. Windows 7. Windows 8
Mac operating systems supported: Mac OS X 10.10 Yosemite. Mac OS X 10.11 El Capitan. Mac OS X 10.12 Sierra. Mac OS X 10.13 High Sierra. Mac OS X 10.14 Mojave

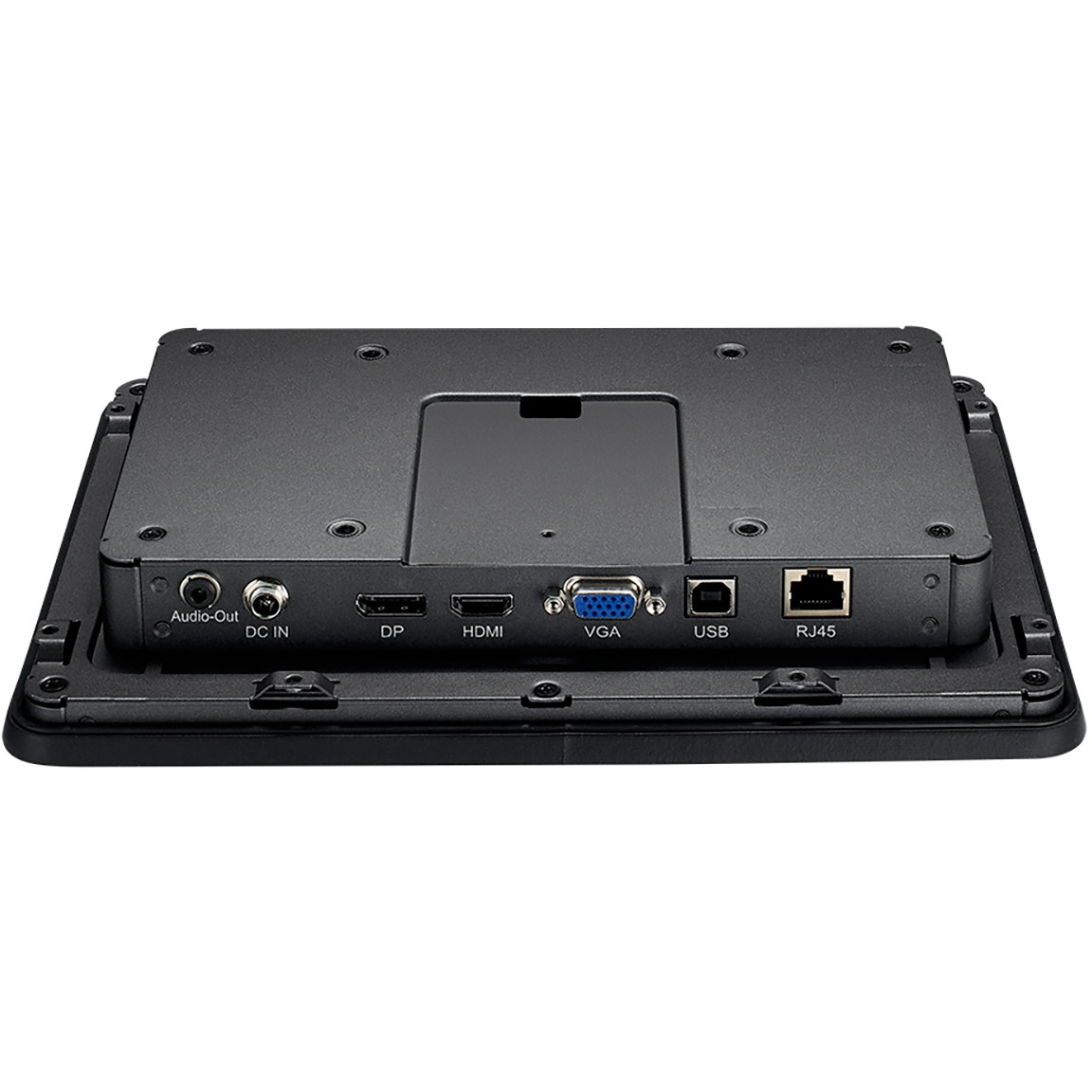

Ports & interfaces
HDMI ports quantity: 1
HDMI version: 1.3a
DisplayPorts quantity: 1
Packaging data
Package width: 370 mm
Package depth: 160 mm
Package height: 325 mm
Package weight: 2.4 kg
Packaging content
Cables included: AC. DisplayPort. USB. VGA
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Sustainability
Feature: Sustainability compliance
Technical details
Compliance certificates: CE. REACH. RoHS. WEEE
