MONITORS

AG Neovo TX-Series touch screen monitors. available in sizes 15” to 22”. provide a smooth and responsive touch experience with 10-point PCAP touch screens. including responsiveness to latex gloves. With DisplayPort. HDMI and VGA input connectivity. the TX-Series support analogue and digital signals respectively. making them flexible for various applications such as factory automation. information displays. digital signage. and self-service kiosks. These touch screen monitors are complemented by a metal housing with an edge-to-edge tempered glass design which enhances durability for continuous operation in demanding and high-traffic areas.

Premium PCAP Multi Touch Screen

Based on projected capacitive (PCAP) touch screen technology. AG Neovo touch screen monitors can register up to 10 simultaneous touch points with fast. accurate. and extremely sensitive touch response. These seamless touch senses are identical to those used in smartphones and tablets.

Cross-Platform Touch Capability

Multi-Touch capability is optimized to work with various operating systems. providing compatibility with Windows. Linux. macOS. and certain Android versions. This enables more choice to the operating system you use.

IP65 Dust and Water Protection

The TX-Series front IP65 touch screen monitors are designed to protect against dust and liquid spills. This makes these durable touch monitors ideal for the industrial workplace or the demanding. high-use. and high-traffic public locations.

Consistent Form Factor Design

Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances. no change is made to exterior dimensions or design.

Durable and Scratch Resistant Touch Screen

For 24/7 operations in public settings. AG Neovo uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels. all without compromising touch sensitivity.

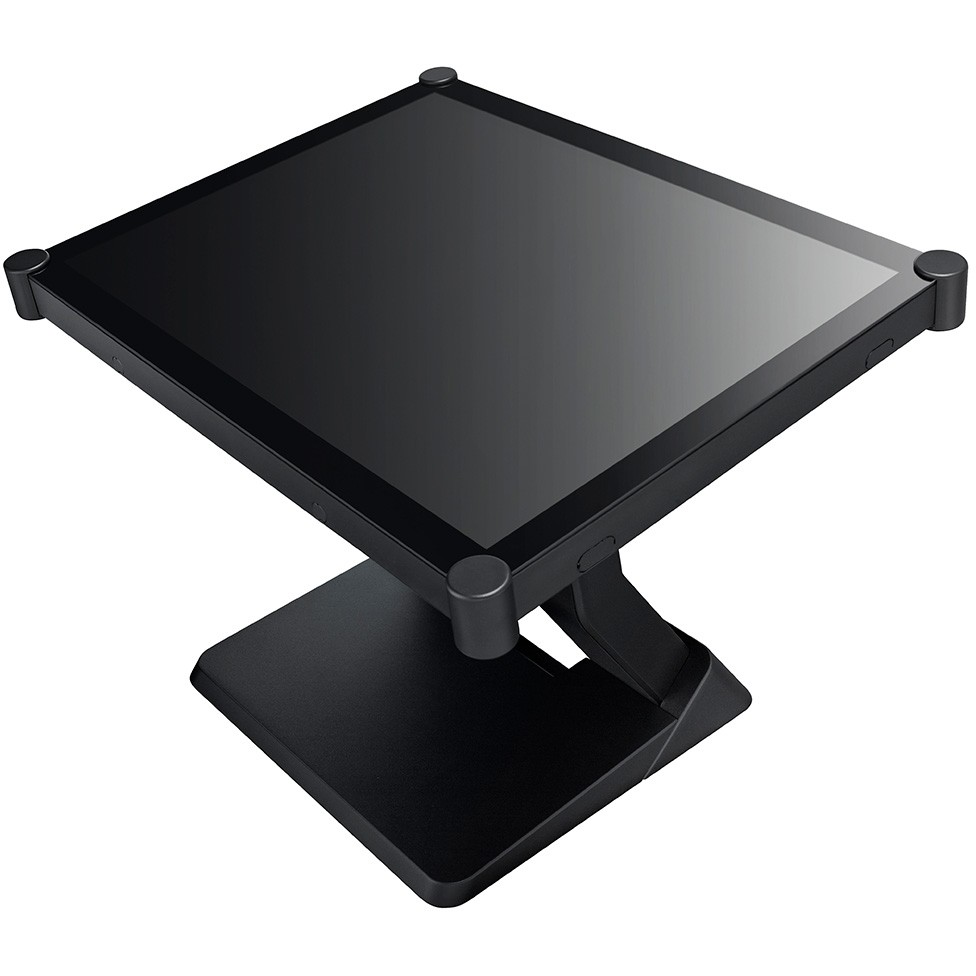

Ergonomic Monitors with Flexible Mounting

TX-Series touch monitors offer flexible mounting options. from the ergonomic monitor stands that come with the monitors to desk mounts. wall mounts. and all monitor mounts feature VESA mounting patterns. These ergonomic monitors feature adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees. users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.

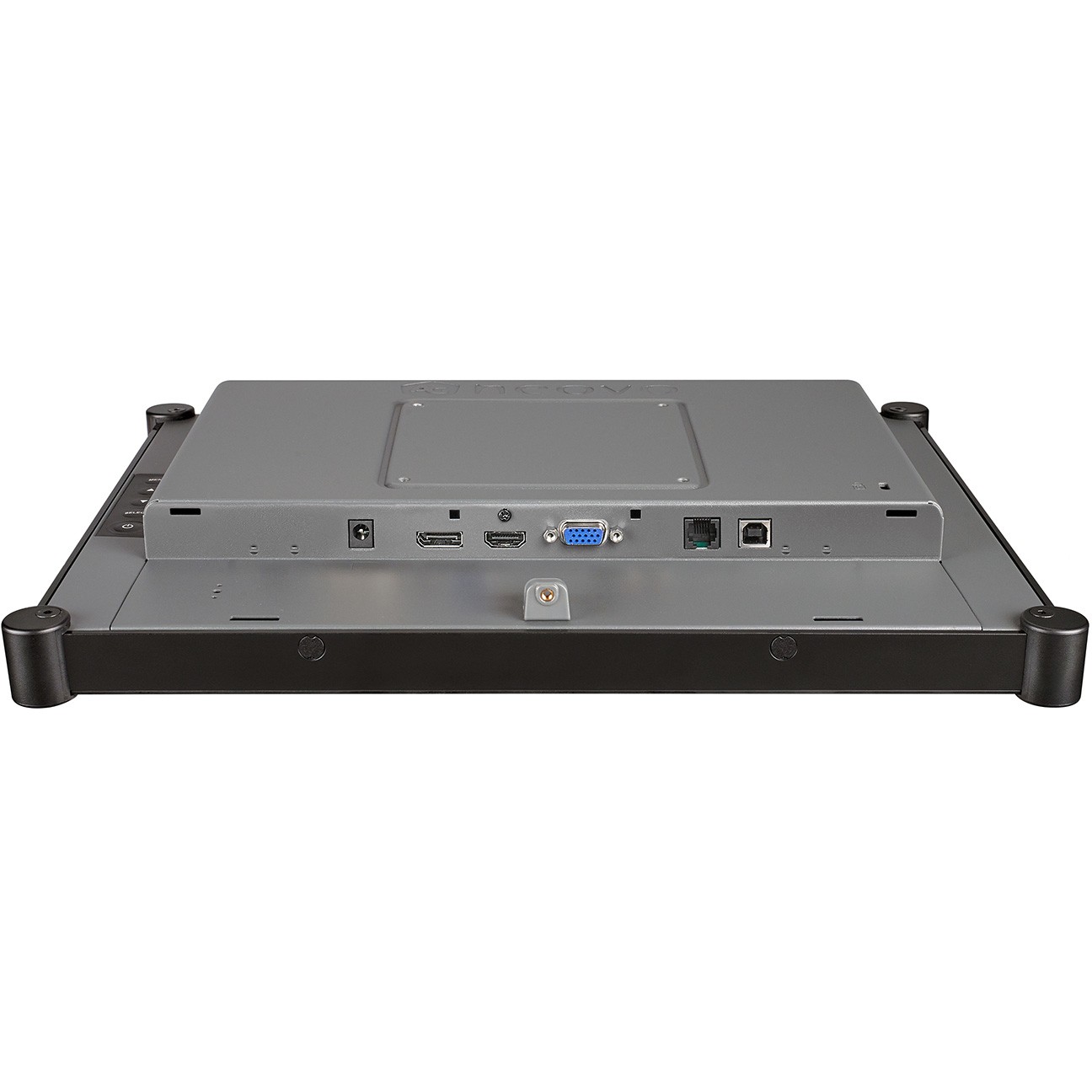

Versatile Connectivity

The TX-Series provides new and legacy systems the best of both worlds since it has both analog (VGA) and digital (DisplayPort and HDMI) video inputs. which provide maximum versatility and facilitate users to connect to a variety of devices.

Display
Display diagonal: 38.1 cm (15")
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LED
Panel type: VA
Backlight type: LED
Feature: Touchscreen
Touchscreen type: Tabletop
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Response time: 5 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 800:1
Viewing angle. horizontal: 160°
Viewing angle. vertical: 150°
Display number of colours: 16.78 million colours
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31 - 61 kHz
Vertical scan range: 55 - 75 Hz
Display diagonal (metric): 38.1 cm
Haze rate: 25%
Surface hardness: 7H
Colour gamut standard: NTSC
NTSC coverage (typical): 60%
Performance
Operating hours (hours/days): 24/7
Operating system installed: Windows 10
Windows operating systems supported: Windows 10. Windows 7. Windows 8
Mac operating systems supported: Mac OS X 10.10 Yosemite. Mac OS X 10.11 El Capitan. Mac OS X 10.12 Sierra. Mac OS X 10.13 High Sierra. Mac OS X 10.14 Mojave
Feature: Linux operating systems supported
Design
Market positioning: Business
Product colour: Grey
Housing material: Metal
Feature: Detachable stand
Glass thickness: 3.1 mm
Ports & interfaces
Feature: USB Touch port
USB Touch ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: -5 - 90°
Feature: Plug and Play
Feature: LED indicators
Power
Power consumption (typical): 8 W
Power consumption (standby): 0.6 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
European Product Registry for Energy Labelling (EPREL) code: 456259
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
Width (with stand): 348.4 mm
Depth (with stand): 214.2 mm
Height (with stand): 312.7 mm
Weight (with stand): 4.6 kg
Width (without stand): 348.4 mm
Depth (without stand): 46.6 mm
Height (without stand): 276.4 mm
Weight (without stand): 2.7 kg
Packaging data
Package width: 415 mm
Package depth: 290 mm
Package height: 370 mm
Package weight: 7 kg
Packaging content
Feature: Stand included
Cables included: AC. HDMI. USB. VGA
Sustainability
Feature: Sustainability compliance
Other features
International Protection (IP) code: IP65
Mobile operating systems supported: Android
Compliance certificates: CE. REACH. RoHS. WEEE
Certification: CE. LVD. WEEE. RoHS. REACH.EAC
Logistics data
Harmonized System (HS) code: 85285210
