MONITORS

Display
Display technology: LCD
Display diagonal: 116.8 cm (46")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Panel type: IPS
Aspect ratio: 16:9
Pixel pitch: 0.53 x 0.53 mm
Display brightness: 500 cd/m²
Pixel frequency: 82 MHz
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 45000:1
Response time: 0.008 s
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Horizontal scan range: 62.7 - 72.3 kHz
Vertical scan range: 57 - 63 Hz
Operating hours (hours/days): 24/7
Design
Placement supported: Indoor
Orientation: Horizontal/Vertical
Bezel width (side): 1.25 mm
Bezel width (top): 2.25 mm
Bezel width (bottom): 2.25 mm
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Product colour: Black
Panel colour: Black

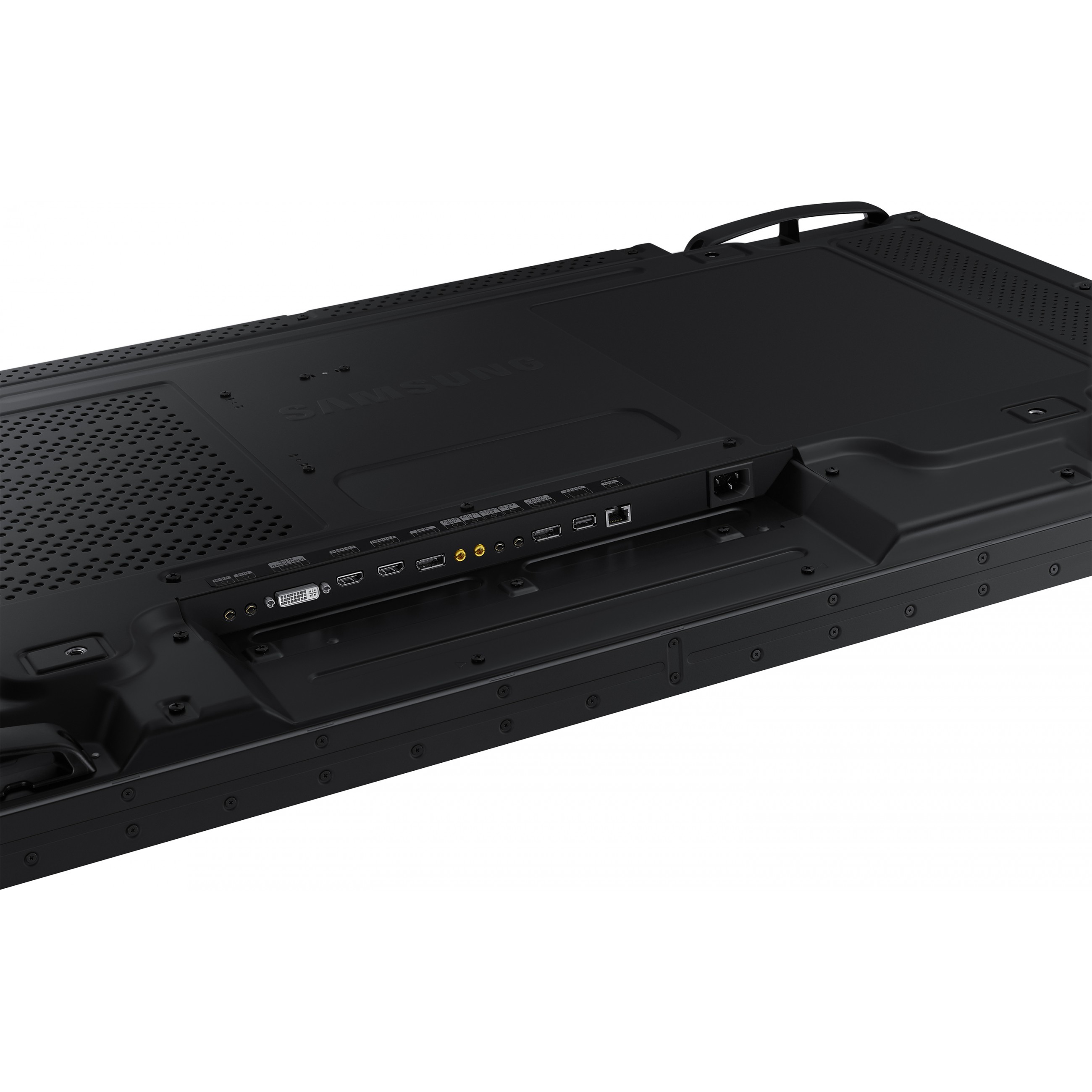

Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
Feature: DVI port
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
RS-232 input ports: 1
RS-232 output ports: 1
Feature: RS-232C
Feature: USB port
USB ports quantity: 1
Feature: HDCP
HDCP version: 2.2
IR input ports quantity: 1
Feature: Audio input
Feature: Audio output
Power
Power consumption (typical): 160 W
Energy efficiency scale: A to G
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 128 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Logistics data
Harmonized System (HS) code: 85285210
Weight & dimensions
Width: 1022 mm
Depth: 69.9 mm
Height: 577 mm
Weight: 15.7 kg
Packaging data
Package width: 1193 mm
Package depth: 257 mm
Package height: 719 mm
Package weight: 22.2 kg
