MONITORS

Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2). calman ready calibration. and UHD Nano IPS display

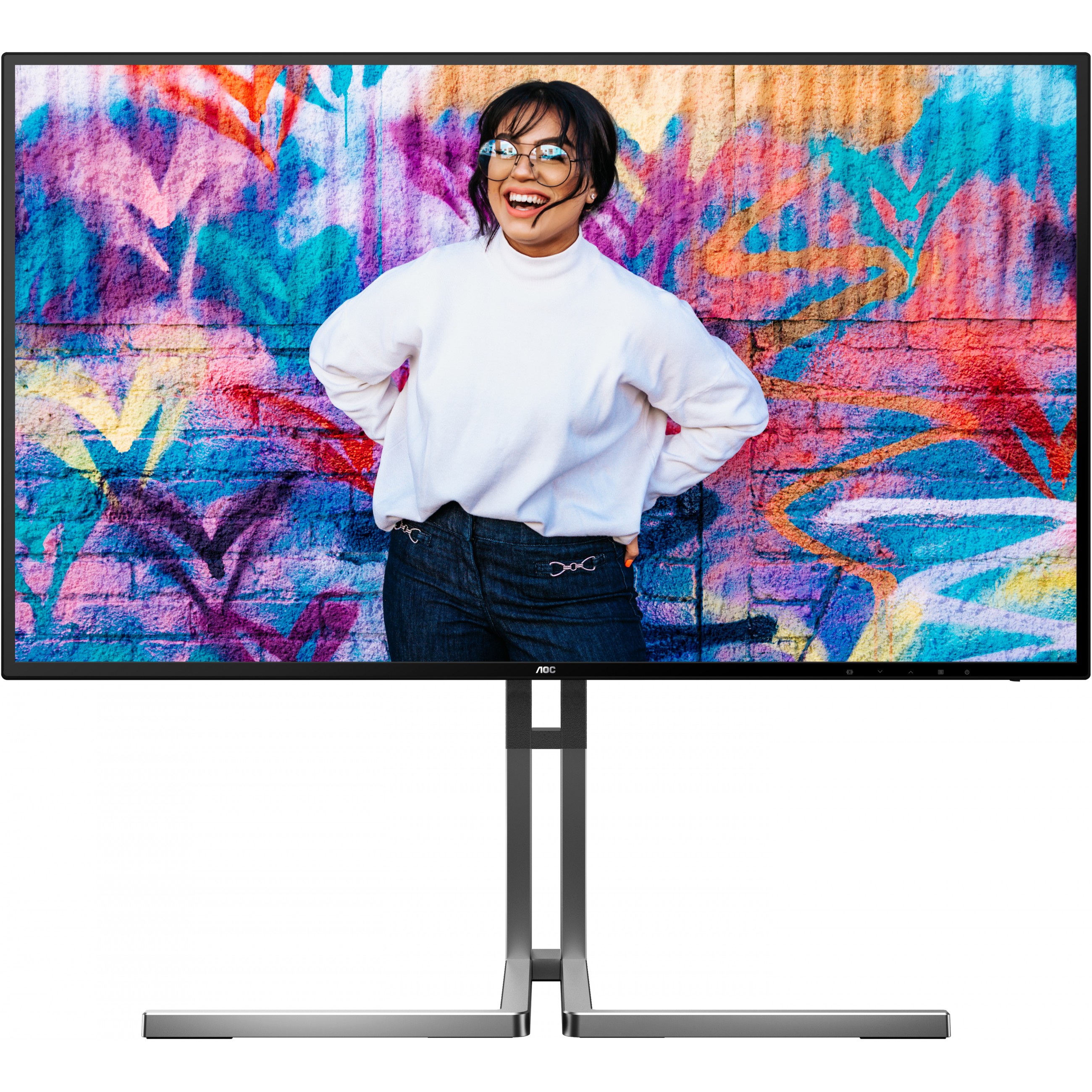

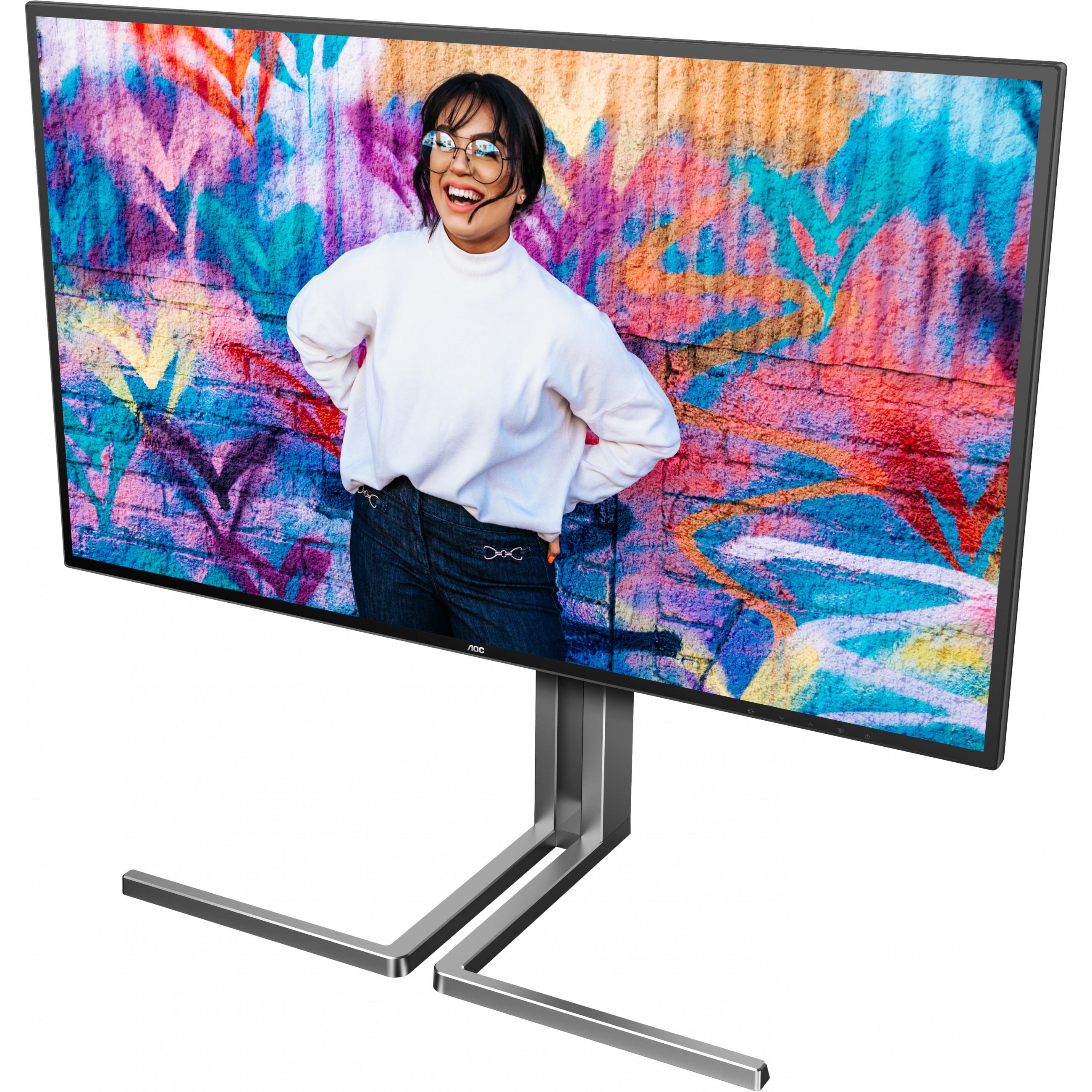

The AOC Graphic Pro U27U3CV delivers exceptional color accuracy straight out of the box. thanks to its hardware calibration achieving Delta E<2 (sRGB). Fine-tune settings effortlessly with the Calman Ready feature for optimal performance. With 98% coverage of the DCI P3. 100% of the sRGB and 100% of the Rec 709 color space. it's ideal for graphic and photo editing. offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise color rendering. surpassing human eye perception. Enhanced with a 4-sided frameless screen. Vesa DisplayHDR 400. USB-C docking station. and sleek design. it stands as the top choice for professionals.

Display
Display diagonal: 68.6 cm (27")
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: Nano IPS
Feature: LED backlight
Backlight type: W-LED
Display brightness (typical): 400 cd/m²
Response time: 4 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.1554 x 0.1554 mm
Horizontal scan range: 30 - 140 kHz
Vertical scan range: 23 - 75 Hz
Viewable size. horizontal: 59.7 cm
Viewable size. vertical: 33.6 cm
Display diagonal (metric): 68.5 cm
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: High Dynamic Range (HDR) 400
Feature: DDC/CI
Haze rate: 25%
Surface hardness: 3H
Colour gamut standard: DCI-P3
Colour gamut: 98%
Performance
Feature: Fast charging
Feature: VESA Adaptive Sync support
Feature: Flicker-free technology
Multimedia
Number of speakers: 2
RMS rated power: 6 W
Feature: Built-in speaker(s)
Design
Market positioning: Graphics design
Product colour: Black
Feature: Frameless design
Feature: Detachable stand
Feet colour: Grey
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 2 (3.1 Gen 2)
USB upstream port type: USB Type-C
Number of upstream ports: 2
USB Type-A downstream ports quantity: 4
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 96 W
Feature: HDMI
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: Headphone out
Headphone outputs: 1
Feature: AC (power) in
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Height adjustment
Adjustable height (max): 15 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: -15 - 15°
Feature: Tilt adjustment
Tilt angle range: -6.5 - 23°
Feature: Picture-in-Picture
Feature: Plug and Play
Power
Power consumption (typical): 44 W
Power consumption (standby): 0.3 W
Power consumption (max): 206 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 3 A
Power supply type: Internal
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -25 - 55 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 93%
Operating altitude: 0 - 5000 m
Non-operating altitude: 0 - 12192 m
Weight & dimensions
Width (with stand): 612.7 mm
Depth (with stand): 238.4 mm
Height (with stand): 543.6 mm
Weight (with stand): 6.54 kg
Packaging data
Package type: Box
Packaging content
Feature: Stand included
Cables included: AC
Feature: Quick start guide
