MONITORS

The New Standard
for a Better Working Experience
The 23.8-Inch EV2480 is a frameless Full HD (1920 x 1080 pixel) monitor equipped with USB Type-C for improving productivity and comfort at the office or at home.

Streamlined Connection with USB Type-C
The monitor is equipped with a USB Type-C connection that allows users to display video. playback audio. transmit USB signals. and supply power to connected devices. This convenient multi-purpose connectivity makes it faster and easier to connect a laptop when moving between workstations or when working away from the office.

70 Watt Power Delivery
The 70 watt power delivery via USB Type-C reliably charges small desktop PCs and laptops. This eliminates the need for a laptop's bulky power supply unit. freeing up space in your bag and on the desk.

Connect Peripherals Directly Into the Monitor
While modern laptops are becoming thinner and more portable. they often have limited connectivity options for peripherals. Connecting to the monitor via USB Type-C gives access to a hub with four USB Type-A ports for easily connecting an external keyboard. mouse. web camera. or storage device.

A Better Working Experience
The monitor offers features and functions that enhance efficiency. productivity. and comfort.

For the Workplace

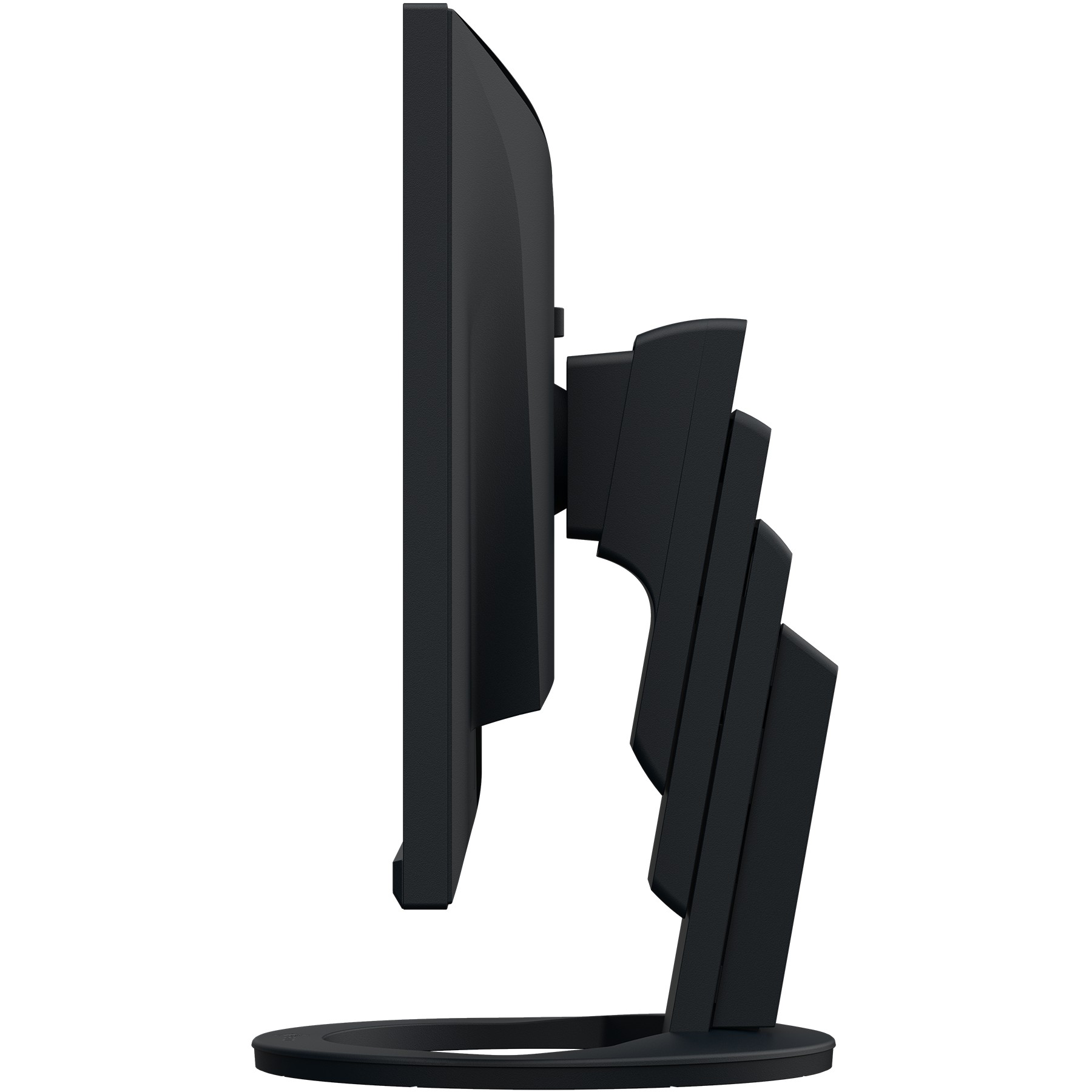

Versatile Stand for Optimal Positioning
The stand has a wide adjustment range. featuring height adjustment. tilt and swivel. This allows you to set the monitor to the perfect position. whether sitting or standing at your desk.

For the Home Office
Improve Work Efficiency
At maximum stand height. the user can comfortably place a small laptop under the 23.8-inch screen to save space in even the most limited workspaces. This effectively increases the available screen space by as much as triple. greatly improving efficiency by reducing the need to scroll or switch windows frequently.

Connectivity and Flexibility
The monitor is equipped with USB Type-C. DisplayPort. and HDMI® video inputs for flexible connection in different work environments.

Comfortably Fits in Modest Workspaces
The monitor’s width of 537.8 mm and its shallow depth of 230 mm makes it compact enough to fit comfortably in shared workspaces or smaller home offices.

Take Your Settings with You
EIZO's Screen InStyle software's Color Briefcase function allows you to effortlessly maintain your individual screen preferences and take them with you. even to different monitors. This streamlines the setup and connection process for flexible workstyles. as well as enhanced comfort when telecommuting.

Portrait Mode for Vertical Viewing
The versatile stand allows you to rotate the monitor to portrait mode for reading long text documents or vertically optimized webpages and applications.

Bezels that are Barely There
The monitor implements a virtually frameless design for a minimalistic aesthetic. There is very little distance between the display area and the bezels. making the monitor easy to blend in with the environment.

Color Coordination
In addition to sleek black. the cabinet is available in white for a color option that keeps your workspace feeling bright. Furthermore. EIZO provides white cables to match the cabinet for full color coordination.

Free Up Your Workspace with a Stand Bracket
PCSH-03The PCSK-03 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor's stand. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. You can adjust the monitor's stand freely even with the client terminal attached.

Say Goodbye to Tired Eyes
The monitor is equipped with functions to help users concentrate on work by keeping their eyes comfortable throughout the day.

Auto Brightness Control
To prevent eye fatigue. a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.

Clear View from All Angles
The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.

Reduce Blue Light by 80%
Printing work-related documents is becoming less common due to the increase in home offices. telecommuting. and stricter security measures. Paper Mode reduces the amount of blue light emitted by the monitor. helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView dimming function. blue light is reduced by as much as 80%.

Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights. a small number of people perceive flicker on their screen which causes eye fatigue. The monitor utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings

Minimum Brightness of 1 cd/m2
In a dimly-lit work environment. a monitor with low brightness settings is more comfortable to use. With its LED backlight. the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.

Glare Reduction
The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient lightning. This makes the screen easier to see and helps reduce eye fatigue.

Commitment to Quality
EIZO manufacturers its products at its own facilities to allow close control over production quality and ensure each monitor is built to last.

Exceptional Image Reproduction
The monitor converts the data from an 8-bit input signal and selects the optimal gradations for smooth image display. Furthermore. each monitor is individually measured and adjusted at the factory prior to shipping for exceptional image quality out of the box.

Care for the Environment and You
Achieving a sustainable society where we do no harm to the environment nor waste precious resources is an important initiative for businesses and communities. FlexScan Sustainable Monitors are at the forefront of EIZO's efforts to contribute to this sustainable future.

Eco-Friendly Packing Customization
EIZO offers corporate customers an option for collective packing. where multiple monitors can be packed together in a single box. This lowers environmental impact by reducing packing materials used for a single shipment.

Display
Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Backlight type: LED
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Screen shape: Flat
Supported graphics resolutions: 640 x 480 (VGA). 720 x 400. 800 x 600 (SVGA). 1024 x 768 (XGA). 1280 x 1024 (SXGA). 1680 x 1050 (WSXGA+). 1920 x 1080 (HD 1080)
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.2745 x 0.2745 mm
Pixel density: 93 ppi
Horizontal scan range: 31 - 68 kHz
Vertical scan range: 59 - 61 Hz
Viewable size. horizontal: 52.7 cm
Viewable size. vertical: 29.6 cm
Display diagonal (metric): 60.5 cm
Colour gamut standard: sRGB
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Market positioning: Business
Product colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-C
Number of upstream ports: 1
USB Type-A downstream ports quantity: 4
Feature: USB Type-C DisplayPort Alternate Mode
USB Power Delivery up to: 70 W
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Headphone out
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 19.1 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: 0 - 344°
Feature: Tilt adjustment
Tilt angle range: -5 - 35°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Simplified Chinese. German. English. Spanish. French. Italian. Japanese. Swedish
Power
Energy efficiency class (SDR): C
Energy consumption (SDR) per 1000 hours: 12 kWh
Power consumption (standby): 0.5 W
Power consumption (max): 142 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 379678
Annual energy consumption: 12 kWh
Operational conditions
Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
Width (with stand): 537.8 mm
Depth (with stand): 230 mm
Height (with stand): 332.4 mm
Weight (with stand): 7.4 kg
Width (without stand): 537.8 mm
Depth (without stand): 57.4 mm
Height (without stand): 320.4 mm
Weight (without stand): 4.7 kg
Packaging content
Cables included: AC. USB Type-C
Feature: Quick start guide
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR. EPEAT Climate +. EPEAT Gold. TCO
Other features
Energy efficiency class (old): C
Compliance certificates: CB. CCC. CE. China RoHS. Federal Communications Commission (FCC). ICES. PSE. RCM. RoHS. cTUVus. UKCA. VCCI. WEEE
Logistics data
Harmonized System (HS) code: 85285210
