KVM SWITCH

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22HF by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections. and you’re all set. The compact CS22HF helps create an organized desktop with reduced cable clutter. and brings in FHD viewing quality to lift up work performance.

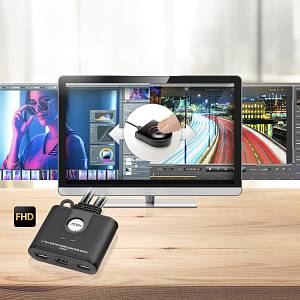

Superior FHD Visual Clarity

The CS22HF empowers your desktop operations with remarkable FHD video quality to expedite visual-intensive workflow.

Space Efficient Desktop Setup

The compact. easy-hook design allows expanding functionality while keeping your desktop in an orderly fashion for improved productivity.

Smooth Cross-Platform Integration

The CS22HF enables the integration of different computer systems (Windows. Mac and Linux) that are accessible over one KVM console.

Flexible USB Peripheral Sharing

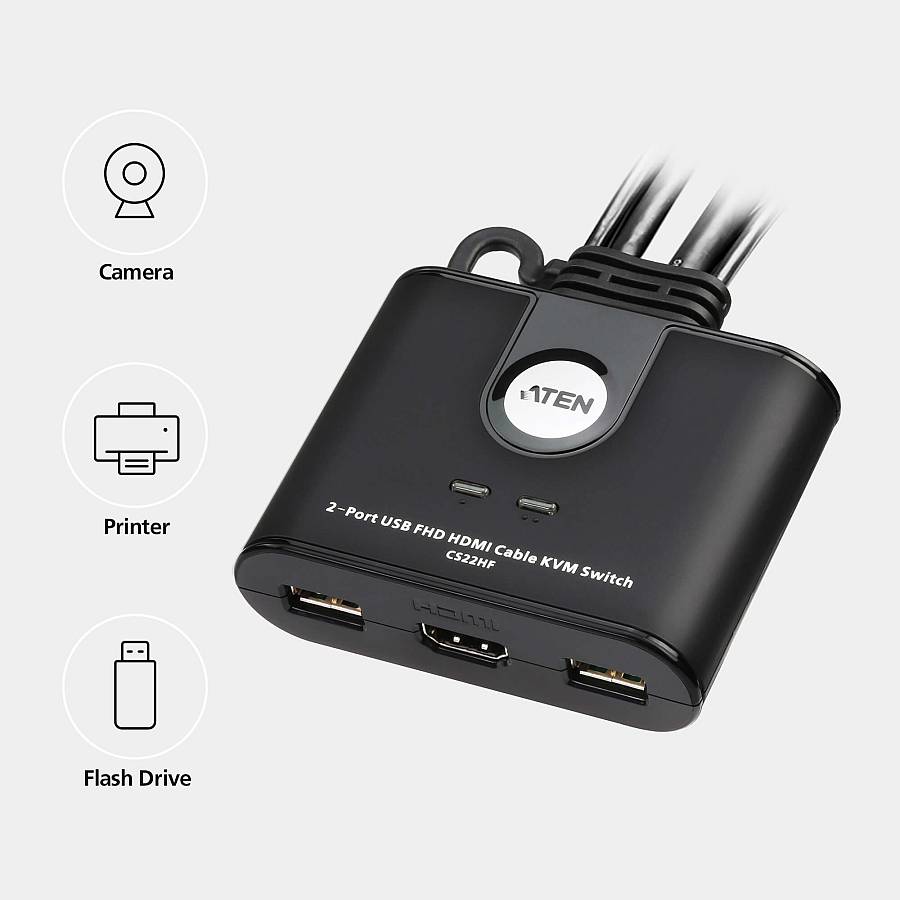

The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.

Plug in. Power on

The CS22HF supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

Applications

The CS22HF Cable KVM Switch allows for an ideal desktop setup in working scenarios including office. media design. network separation and work from home.

Ports & interfaces
Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 2
Console ports: HDMI. USB A
Console USB ports quantity: 2
Console HDMI ports quantity: 1
USB 2.0 Type-A hub ports quantity: 2
USB connector type: USB Type-A
Feature: DC-in jack
Performance
HD type: Full HD
Maximum resolution: 1920 x 1200 pixels
Video bandwidth: 60 Hz
Feature: HDCP
Design
Product colour: Black
Housing material: Plastic
Cable length: 1.2 m
Remote switch cable length: 1.8 m
Feature: LED indicators
Power
Input voltage: 5 V
Power consumption (typical): 1.5 W
System requirements
Feature: Windows operating systems supported
Feature: Linux operating systems supported
Feature: Mac operating systems supported
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%
Weight & dimensions
Width: 66.5 mm
Depth: 82.4 mm
Height: 25.2 mm
Weight: 260 g
